value the user has entered is positive or negative.
10.8.1 Rotate an Object by a Specified Angle
You may rotate objects by specifying a base point or an angle.
10.8.2 To rotate objects
1.
Choose Modify > Rotate.
2.
Select the objects, and then press Enter.
3.
Specify base point.
4.
Specify the rotation angle.

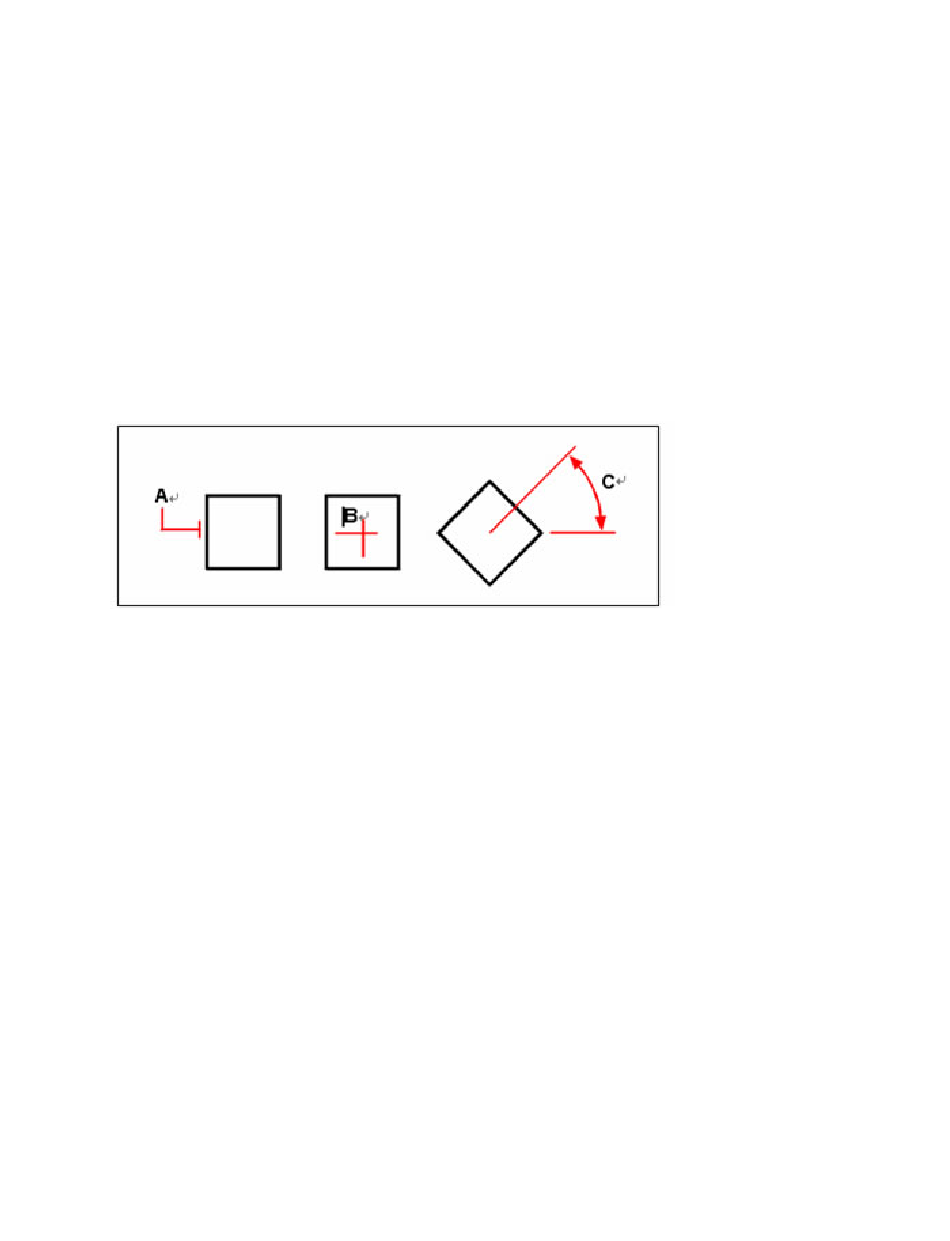

To rotate an object, select the object to rotate (A), and then specify base point (B) and the rotation angle (C)
10.8.3 Rotate an Object to an Absolute Angle
You may also rotate objects by specifying an absolute angle.
10.8.4 To rotate a selection set in reference to an Absolute Angle
1.
Choose Modify > Rotate.
2.
Select the objects, and then press Enter.
3.
Specify base point.
4.
On the command line, type Reference.
5.
Specify the reference angle.
6.
Specify the new angle.
UM10138_0712A
Modify Tools
50
