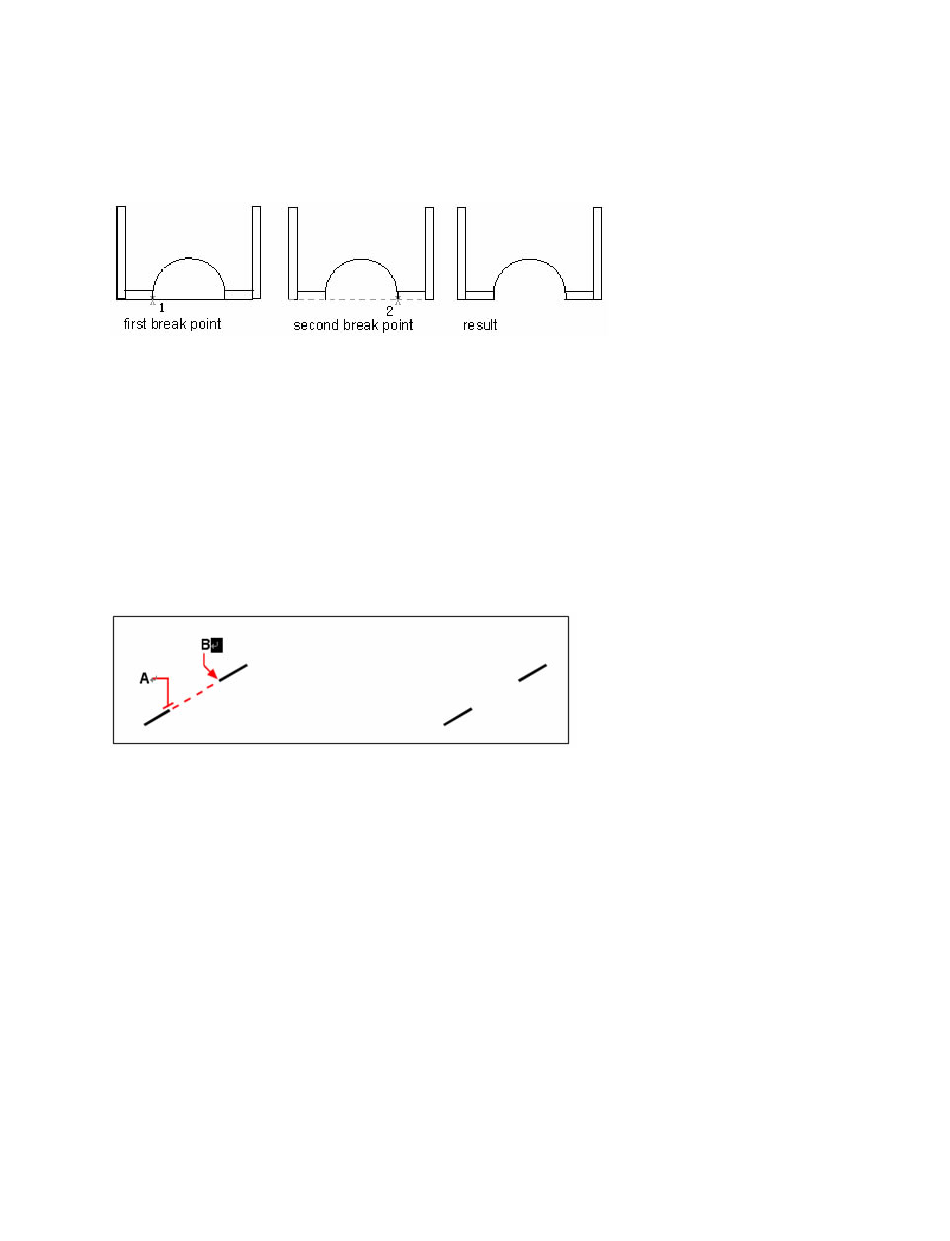

You may break arcs, circles and lines. When breaking entities, you must specify two points for the
break. By default, the point used to select the entity becomes the first break point; however, you may
use the first break point option to select a break point different from the one that selects the entity.
10.13.1

To break an object

1. Choose Modify > Break.
2. Select the object.
3. Specify the second break point.
Select the object (A), and then specify the second break point (B)
10.13.2

To select an object and then specify the two break points

1. Choose Modify > Break.
2. Select the object.
3. On the command line, type first break point.
4. Specify the first break point.
5. Specify the second break point.
