10.12.1
To extend an object
1.
Choose Modify > Extend.
2.
Select one or more objects as boundary edges, and then press Enter.
3.
Select the object to extend.
4.
Select another object to extend, or press Enter to complete the command.

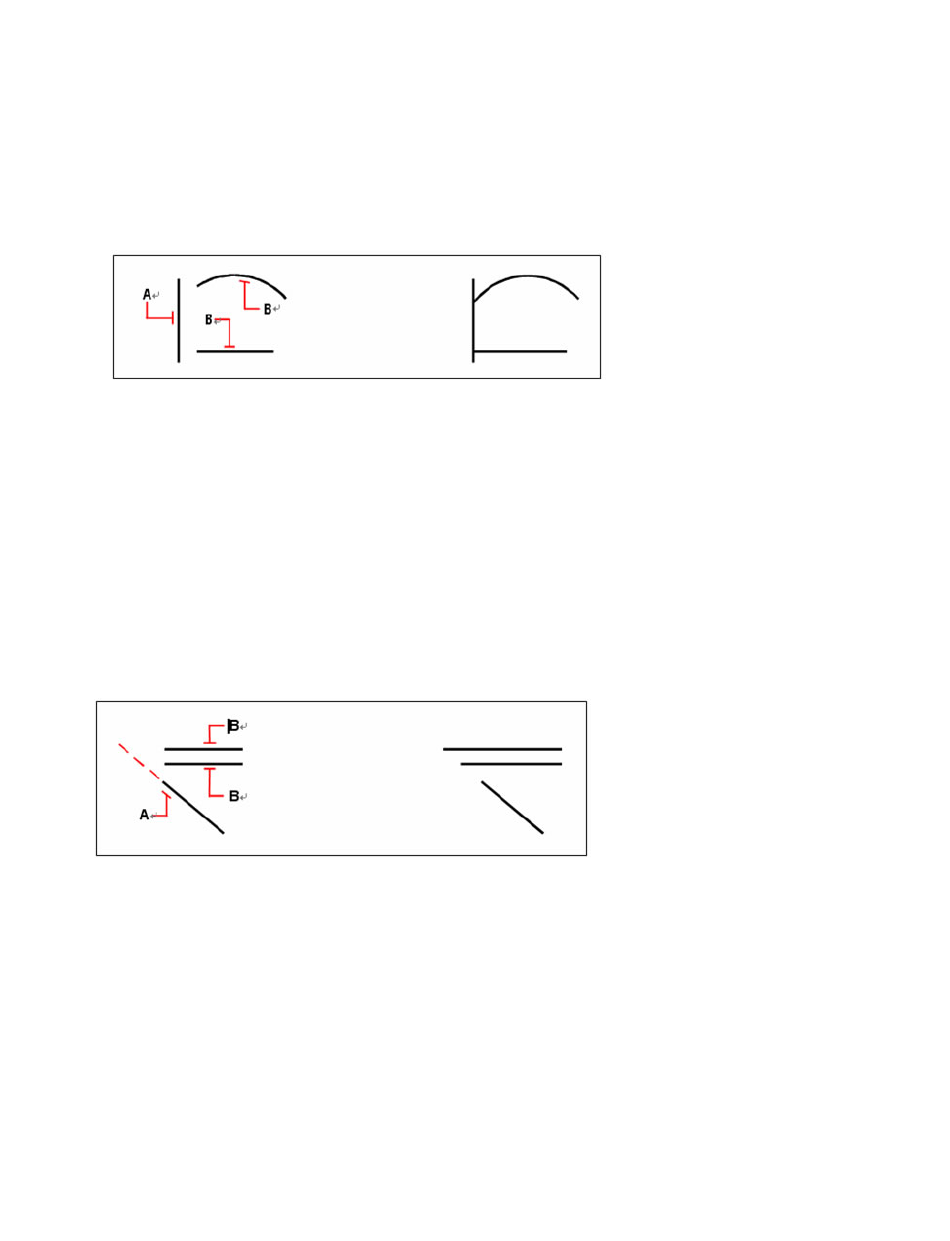

To extend objects, select the boundary edge (A), and then select the objects to extend (B)
10.12.2
To extend an object to an implied boundary
1.
Choose Modify > Extend.
2.
Select one or more boundary edges, and then press Enter.
3.
On the command line, type edge mode.
4.
On the command line, type extend.
5.
Select the object to extend.
6.
Select another object to extend, or press Enter to complete the command.
Select the boundary edge (A), and then select the objects to extend (B)
10.13 Create Breaks
Command line BREAK
Create a gap in an object, resulting in two objects with a space between them.
UM10138_0712A
Modify Tools
54
Tormach® CNC Scanner
