You may create radial dimensions and jogged dimensions for circles or arcs to measure their radius.

You may create radial dimensions for circles or arcs to measure their radius. The radial dimension is a

radial dimension line with an arrowhead that points to a circle or arc.

13.4.1 To create a radial dimension

1. Choose Dimensions > Radius.

2. Select the arc or circle.

3. Specify the dimension line location.

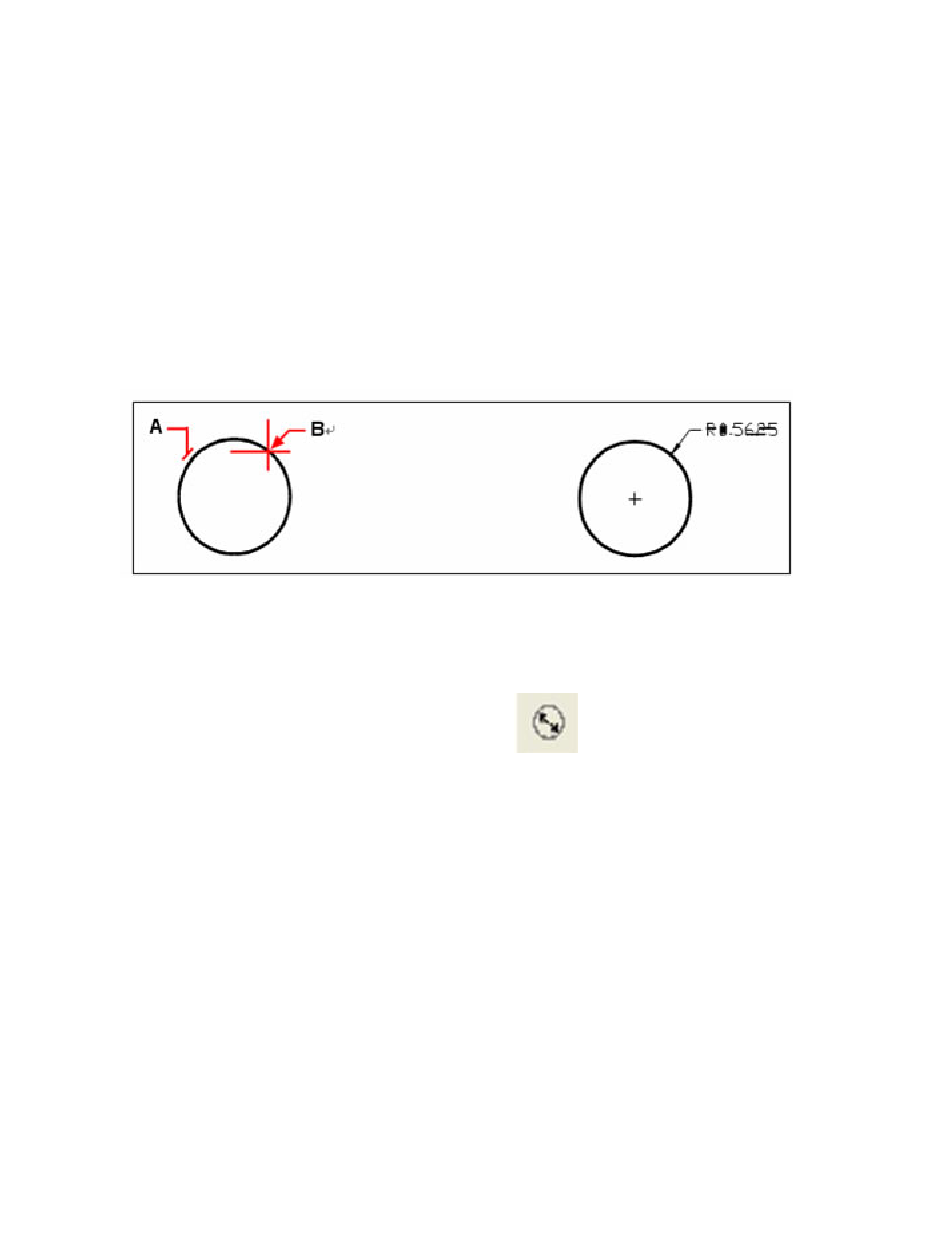

Select the circle (A), and then specify the dimension line location (B).

Command line: DIMDIAMETER

You may create diameter dimensions for circles or arcs to measure their diameters. Creating diameter

dimensions resembles creating radial dimensions.

1. Choose Dimensions > Diameter.

2. Select the arc or circle.

3. Specify the dimension line location.

Tormach® CNC Scanner

Dimension Tools

UM10138_0712A
