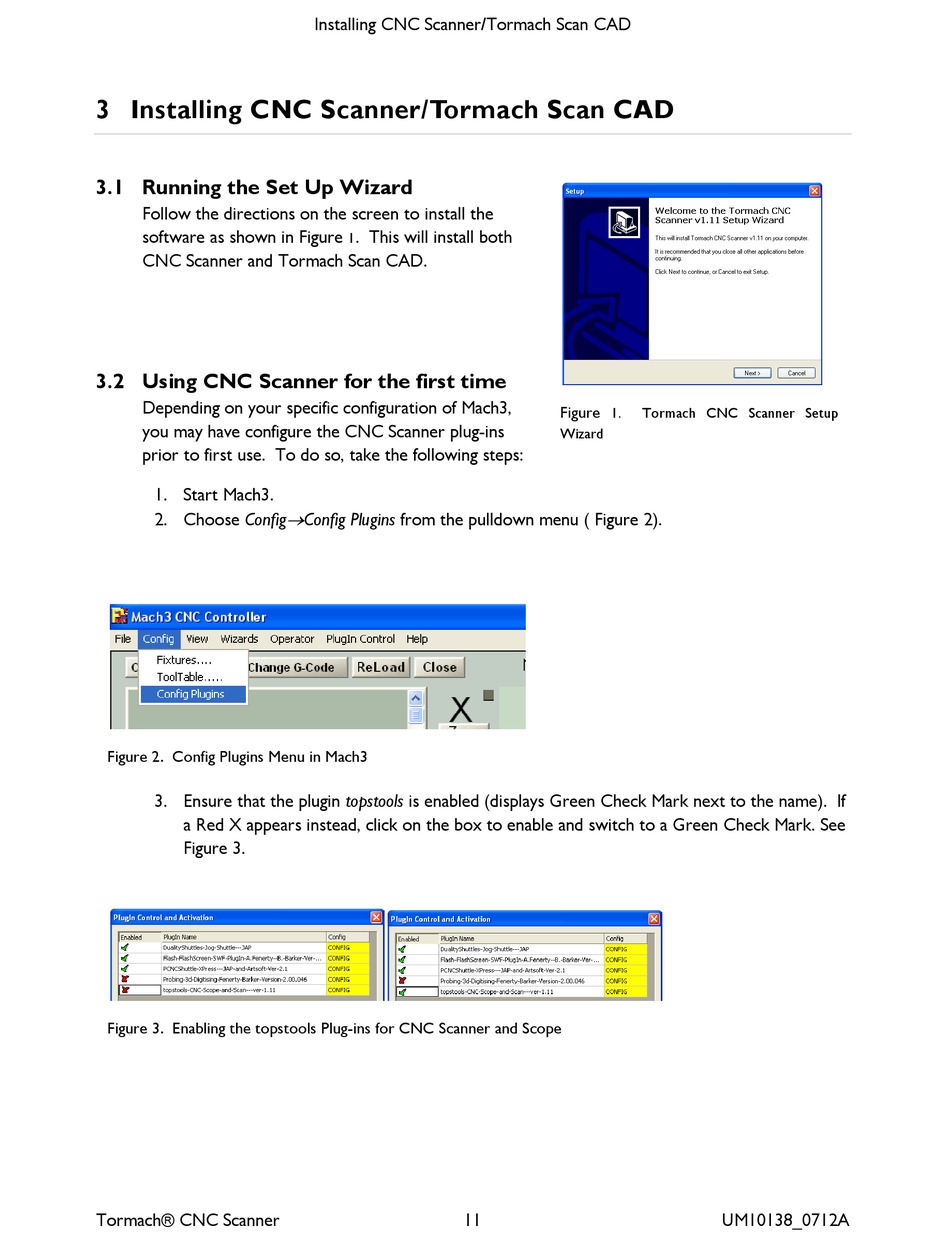

3 Installing CNC Scanner/Tormach Scan CAD

3.1 Running the Set Up Wizard

Follow the directions on the screen to install the
software as shown in Figure
CNC Scanner and Tormach Scan CAD.

3.2 Using CNC Scanner for the first time

Depending on your specific configuration of Mach3,
you may have configure the CNC Scanner plug-ins
prior to first use. To do so, take the following steps:
1. Start Mach3.
2. Choose Config
Figure 2. Config Plugins Menu in Mach3
3. Ensure that the plugin topstools is enabled (displays Green Check Mark next to the name). If
a Red X appears instead, click on the box to enable and switch to a Green Check Mark. See
Figure 3.
Figure 3. Enabling the topstools Plug-ins for CNC Scanner and Scope
Tormach® CNC Scanner
Installing CNC Scanner/Tormach Scan CAD
. This will install both
1

Config Plugins from the pulldown menu ( Figure 2).
11
Figure
1. Tormach CNC Scanner Setup
Wizard
