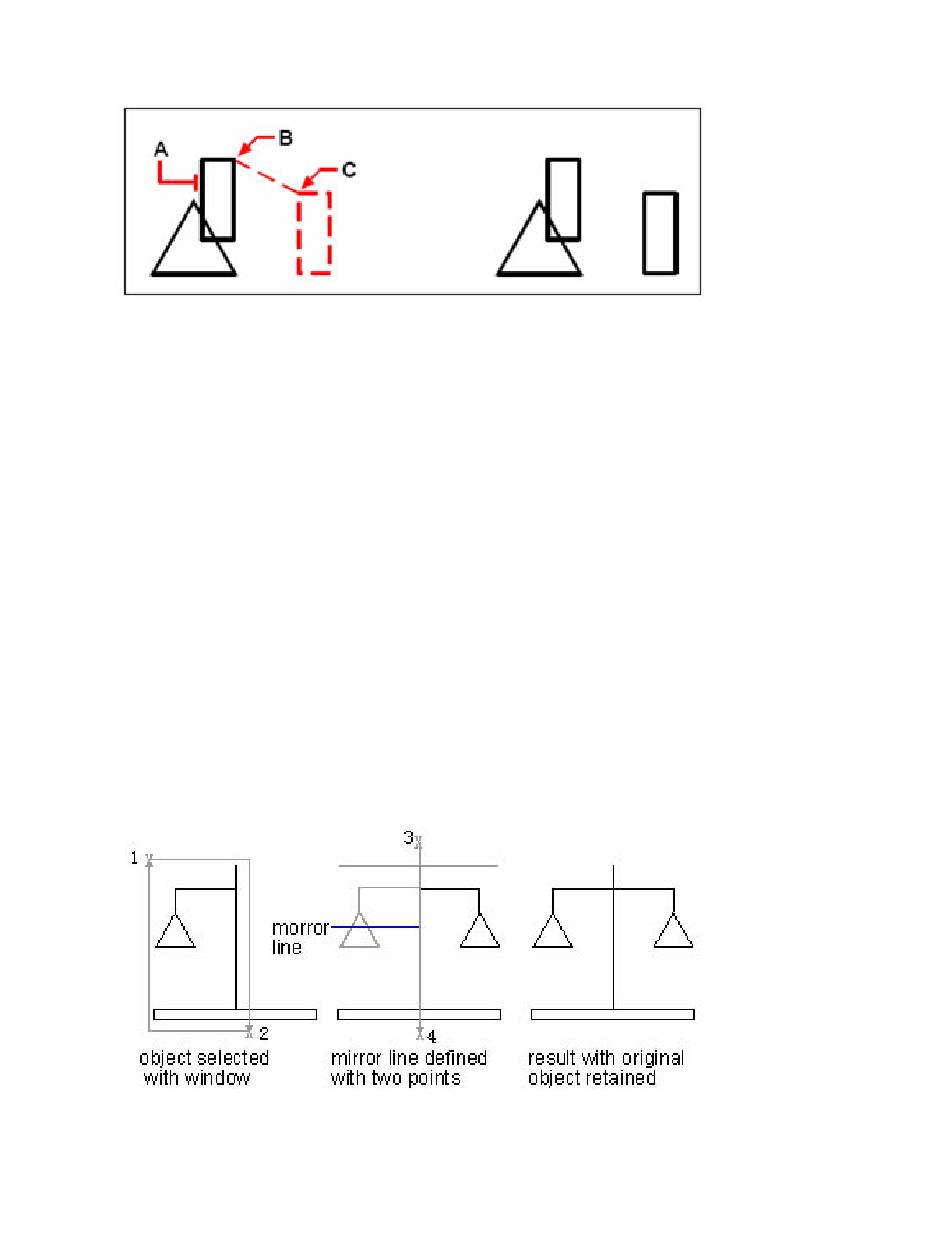

Object to copy (A), base point (B), and displacement point (C)

While specifying two points, you can enter two coordinates to define the relative distance you want the

object to move.

10.4.1 Create one copy of an object

1. Choose Modify > Copy.

2. Select the objects, and then press Enter.

3. Specify the base point.

4. Specify the displacement point.

Command line MIRROR

Flip objects about a specified axis to create a symmetrical mirror image.

You may specify a baseline to create a mirror image using MIRROR command. The mirror image is

symmetrical with the original one. So if one wants to create a symmetrical object, one only need to

draw half of it, and then create the full object using the MIRROR command. When creating mirror

objects using MIRROR command, you must specify a mirror line around which the mirror object is

created.

Tormach® CNC Scanner

Modify Tools

UM10138_0712A
