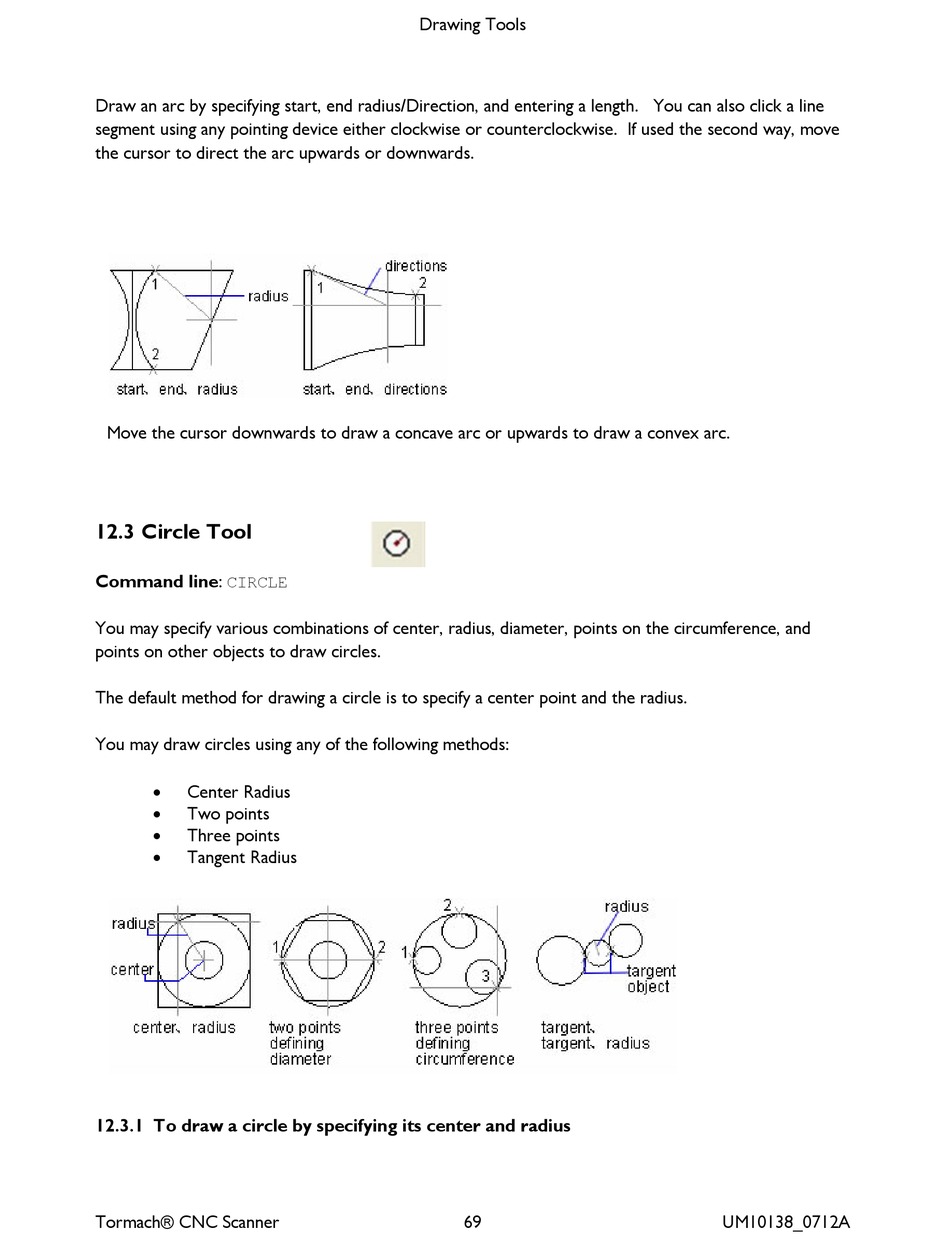

Draw an arc by specifying start, end radius/Direction, and entering a length. You can also click a line
segment using any pointing device either clockwise or counterclockwise. If used the second way, move
the cursor to direct the arc upwards or downwards.
Move the cursor downwards to draw a concave arc or upwards to draw a convex arc.

12.3 Circle Tool

Command line: CIRCLE
You may specify various combinations of center, radius, diameter, points on the circumference, and
points on other objects to draw circles.
The default method for drawing a circle is to specify a center point and the radius.
You may draw circles using any of the following methods:

Center Radius

Two points

Three points

Tangent Radius

12.3.1 To draw a circle by specifying its center and radius
