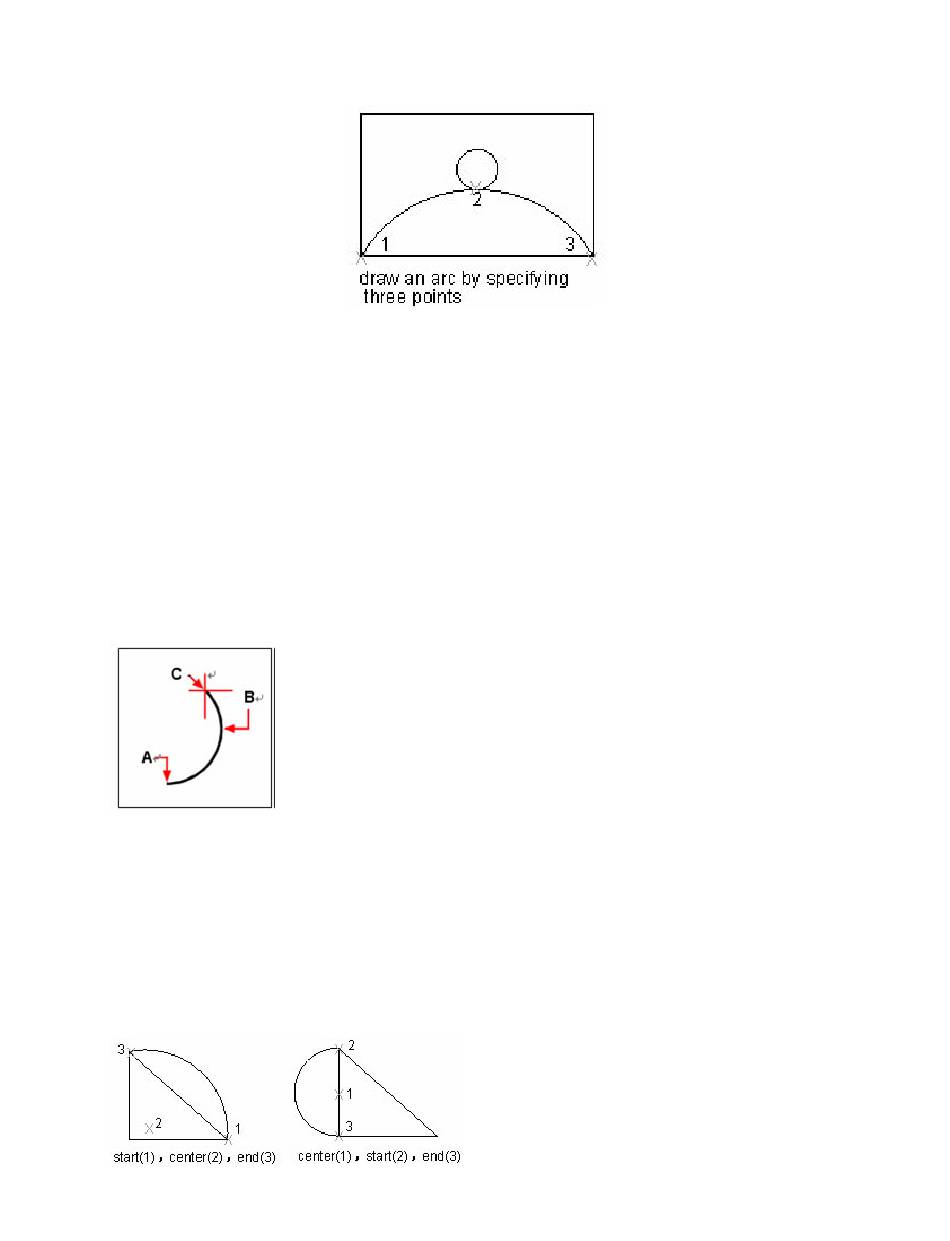

Drawing an arc by specifying three points. The start point of the arc (1) snaps to the endpoint of a line. The
second point of the arc (2) snaps to the middle circle in the illustration.

12.2.2 To draw an arc by specifying three points

1. Choose Draw > Arc
2. Specify the start point.
3. Specify a second point.
4. Specify the endpoint.
Start point (A), second point (B), and endpoint (C)

12.2.3 Draw Arcs by Specifying Start, Center, End

Using command line prompts for drawing arc, draw an arc by specifying center, start point and end
point.
Drawing an arc by specifying three points
