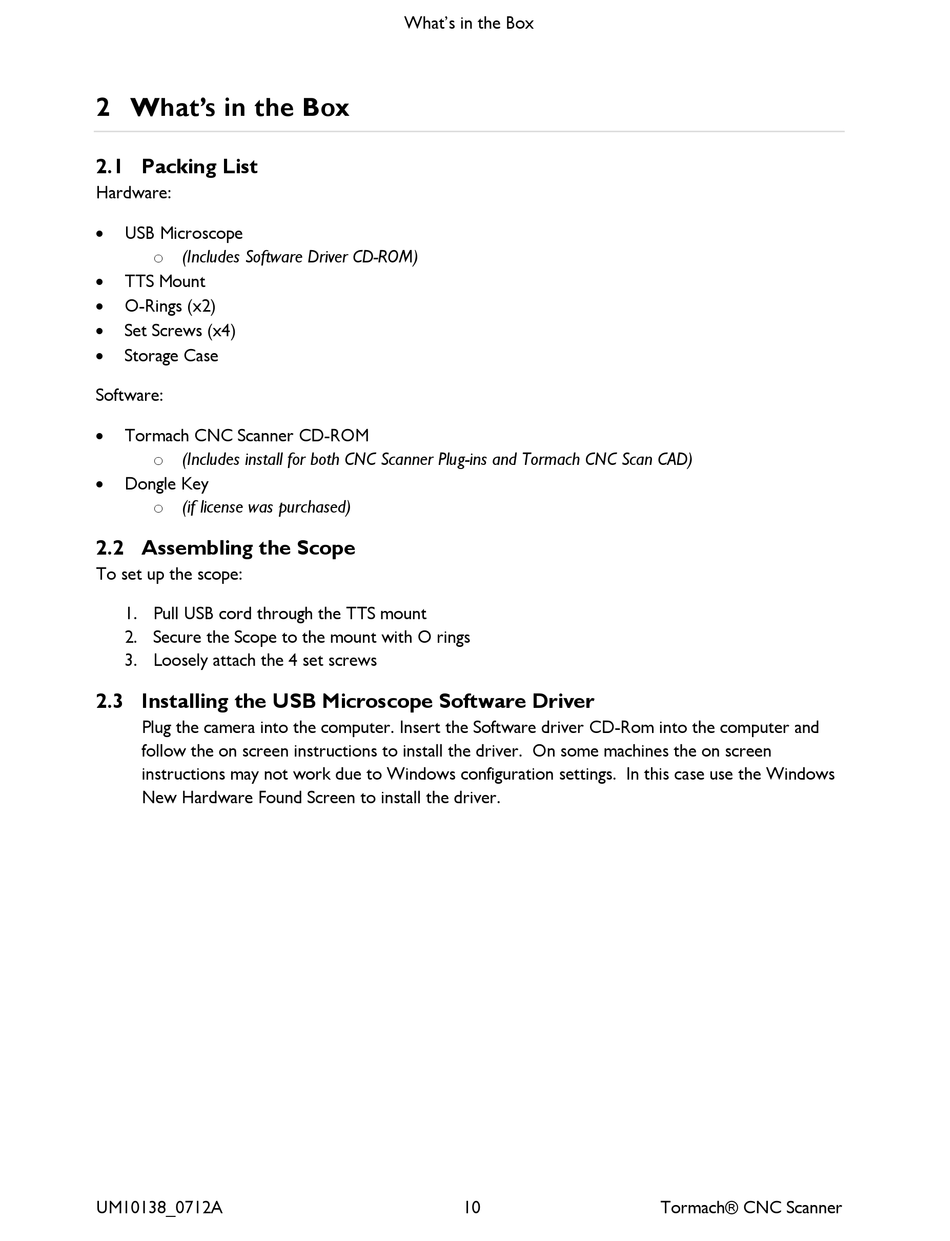

2 What's in the Box

2.1 Packing List

Hardware:

USB Microscope
o (Includes Software Driver CD-ROM)

TTS Mount

O-Rings (x2)

Set Screws (x4)

Storage Case
Software:

Tormach CNC Scanner CD-ROM
o (Includes install for both CNC Scanner Plug-ins and Tormach CNC Scan CAD)

Dongle Key
o (if license was purchased)

2.2 Assembling the Scope

To set up the scope:
1. Pull USB cord through the TTS mount
2. Secure the Scope to the mount with O rings
3. Loosely attach the 4 set screws

2.3 Installing the USB Microscope Software Driver

Plug the camera into the computer. Insert the Software driver CD-Rom into the computer and
follow the on screen instructions to install the driver. On some machines the on screen
instructions may not work due to Windows configuration settings. In this case use the Windows
New Hardware Found Screen to install the driver.
