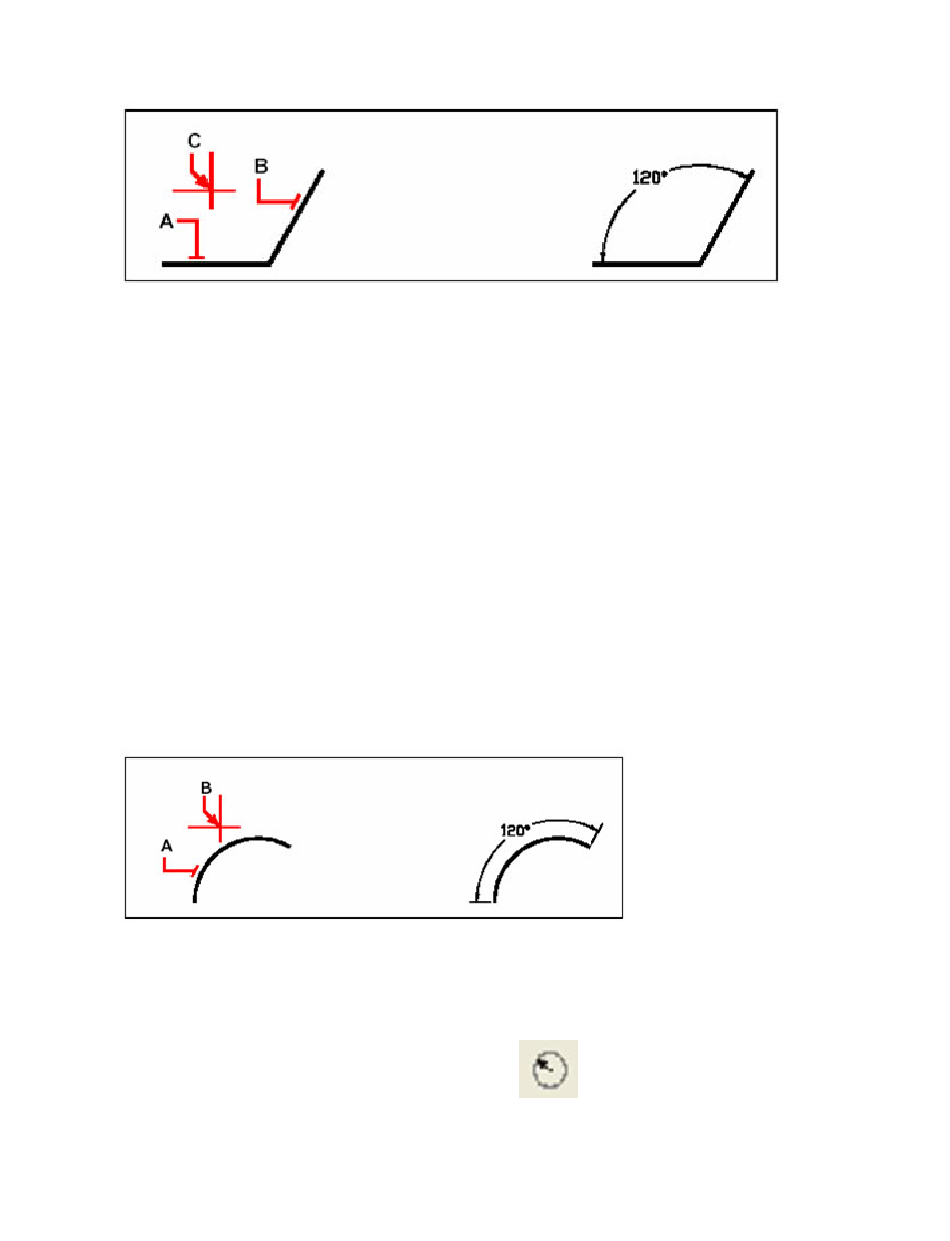

Select one line (A), select the other line (B), and then specify the dimension line location (C).

If the object to be dimensioned is arc, the dimension line arc is placed between the extensions. The

dimension line arc is also drawn between the extension lines when you use three points to create an

angular dimension. The quadrant of the dimensioned angle depends on the location that you specify for

the dimension line arc.

13.3.2 To dimension an angle encompassed by an arc

Choose Dimensions > Angular

Select the arc.

Specify the dimension arc location.

To dimension the angle subtended by an arc, Select the arc (A), and then specify the dimension arc location

(B).

Command line: DIMRADIUS

UM10138_0712A

Dimension Tools

Tormach® CNC Scanner
