12.2.4 To draw an arc by specifying its start point, center point, and endpoint

1. Choose Draw > Arc
2. Press 'C' key to specify the center point.
3. Specify the center point.
4. Specify the start point.
5. Specify the endpoint.

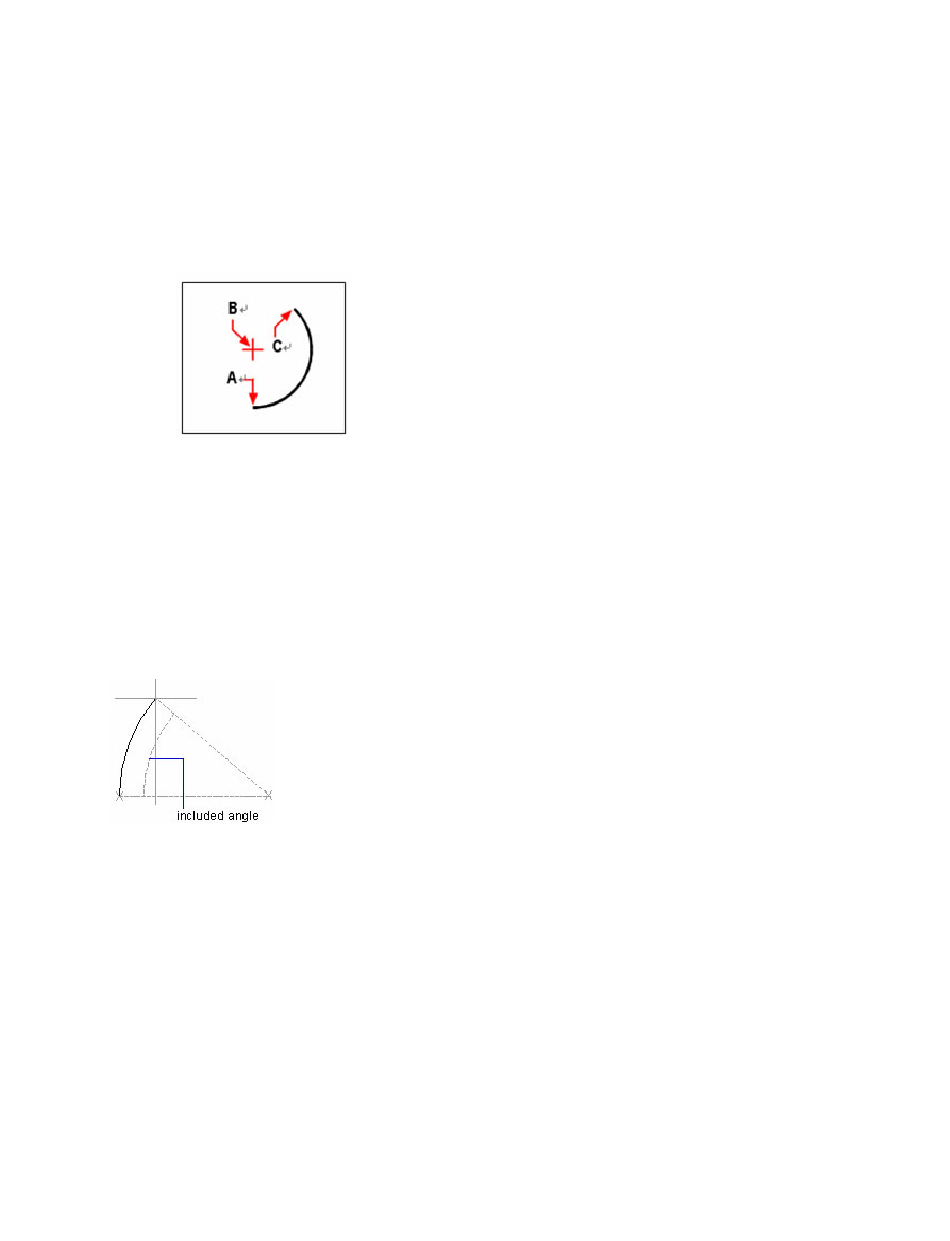

Start point (A), center point (B), and endpoint (C)

12.2.5 Draw Arcs by Specifying Start, Center or End, and Angle

You can draw an arc by specifying start point and included angle. The included angle determines the
endpoint of the arc. Use the Start, End, Angle method when you know both endpoints but cannot snap
to a center point.
1. Choose Draw > Arc
2. Specify the start point.
3. Press 'C' key to specify the center point or 'E' to specify the end point.
4. Specify the center or end point.
5. Press 'A' key to specify the Specify the angle.
6. Enter the angle.
