Scale Dimensions; To Resize The Scale Of The Dimension Text - Tormach CNC Scanner Manual

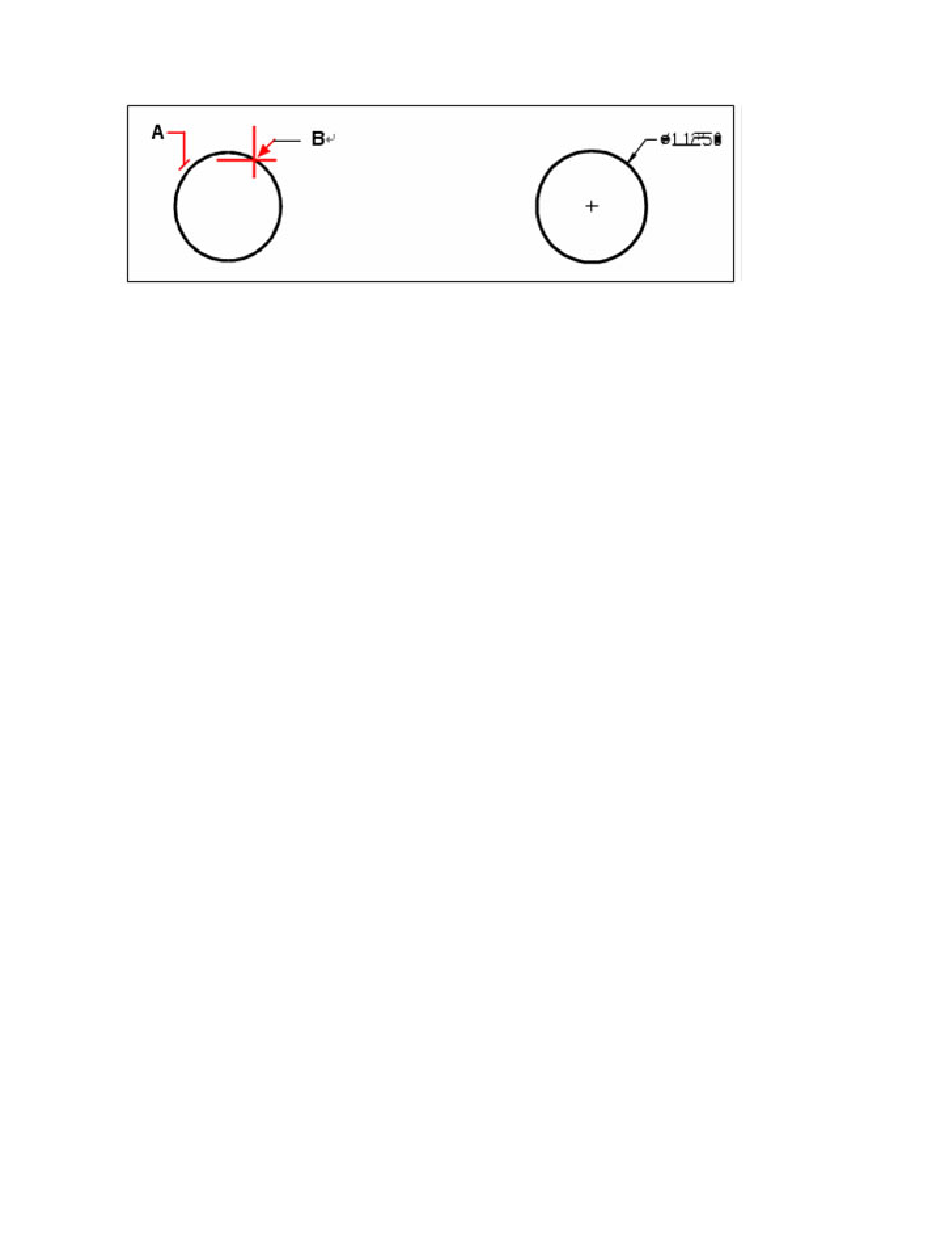

Select the circle (A), and then specify the dimension line location (B).

13.6 Scale Dimensions

Command line: DIMSCALE
This tool is used to specify the size of the dimension text. The default value is 0.100. Simply specify a
new value to resize the text on new dimensions. Existing dimensions will not be affected.

13.6.1 To resize the scale of the dimension text

1. Choose Dimensions > Scale
2. Specify a new value
