CNC Scanner

You can use the arrows on the screen to jog the X and Y axis in discrete step amount specified in the

box. See Figure 13. To use the previously stored start point, choose "Go To Previous Start Point".

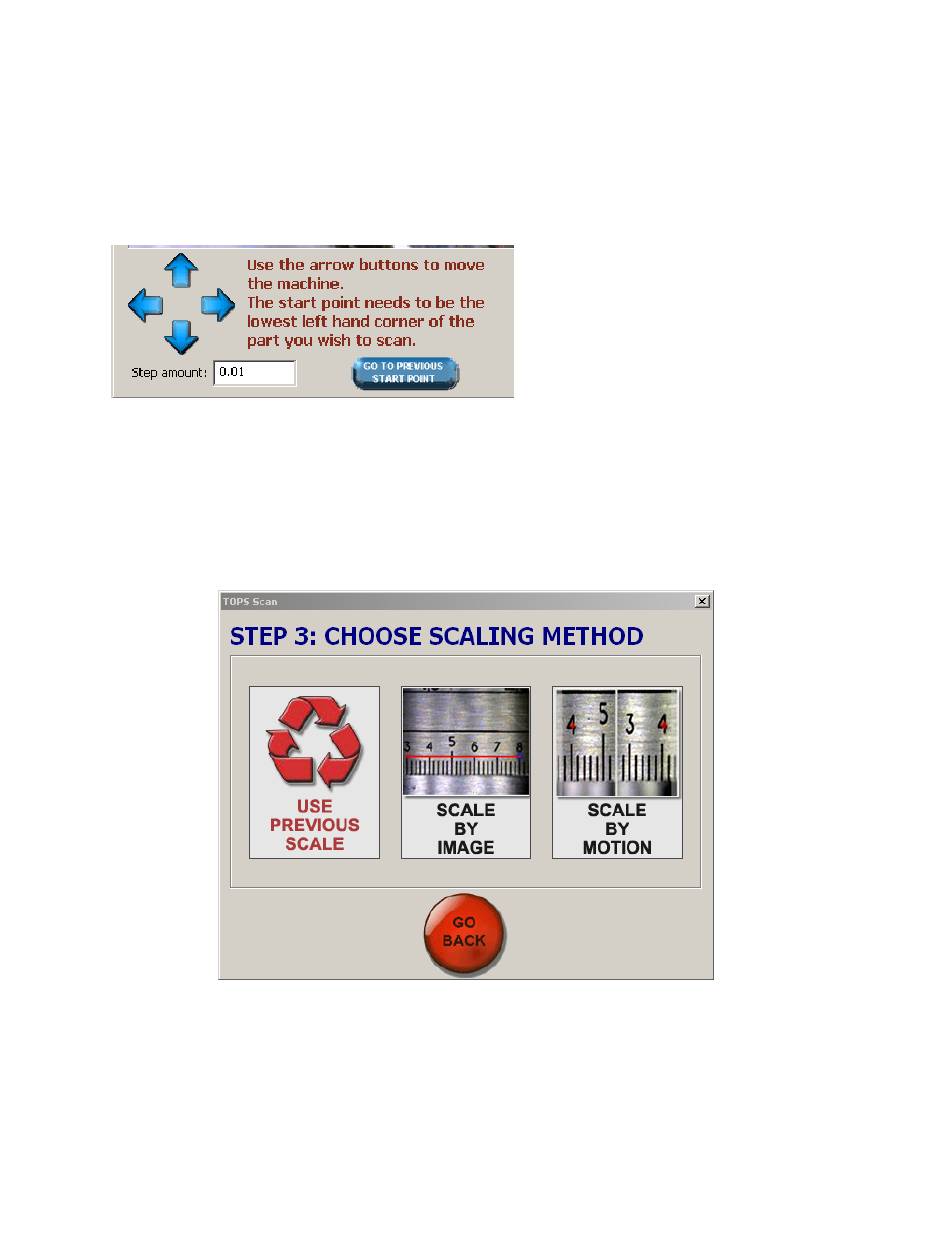

Figure 13. Setting the Start Point

5.6 Establishing Image Scale

After you have selected the Start Point for the image, you must choose a scaling method. Click "Next"

to bring up the three ways to assign a scale for a scanned image, as shown in Figure 14: Use Previous

Scale, Scale by Image, and Scale by Motion.

Figure 14. Choosing a Scaling Method

UM10138_0712A
