CNC Scanner
When the snapshot window is positioned where you want it, click Take The Snapshot. Now, reposition
by jogging the axes of the machine and repeat to for the second snapshot. To achieve best results,
position the point at opposite corners of each viewport.

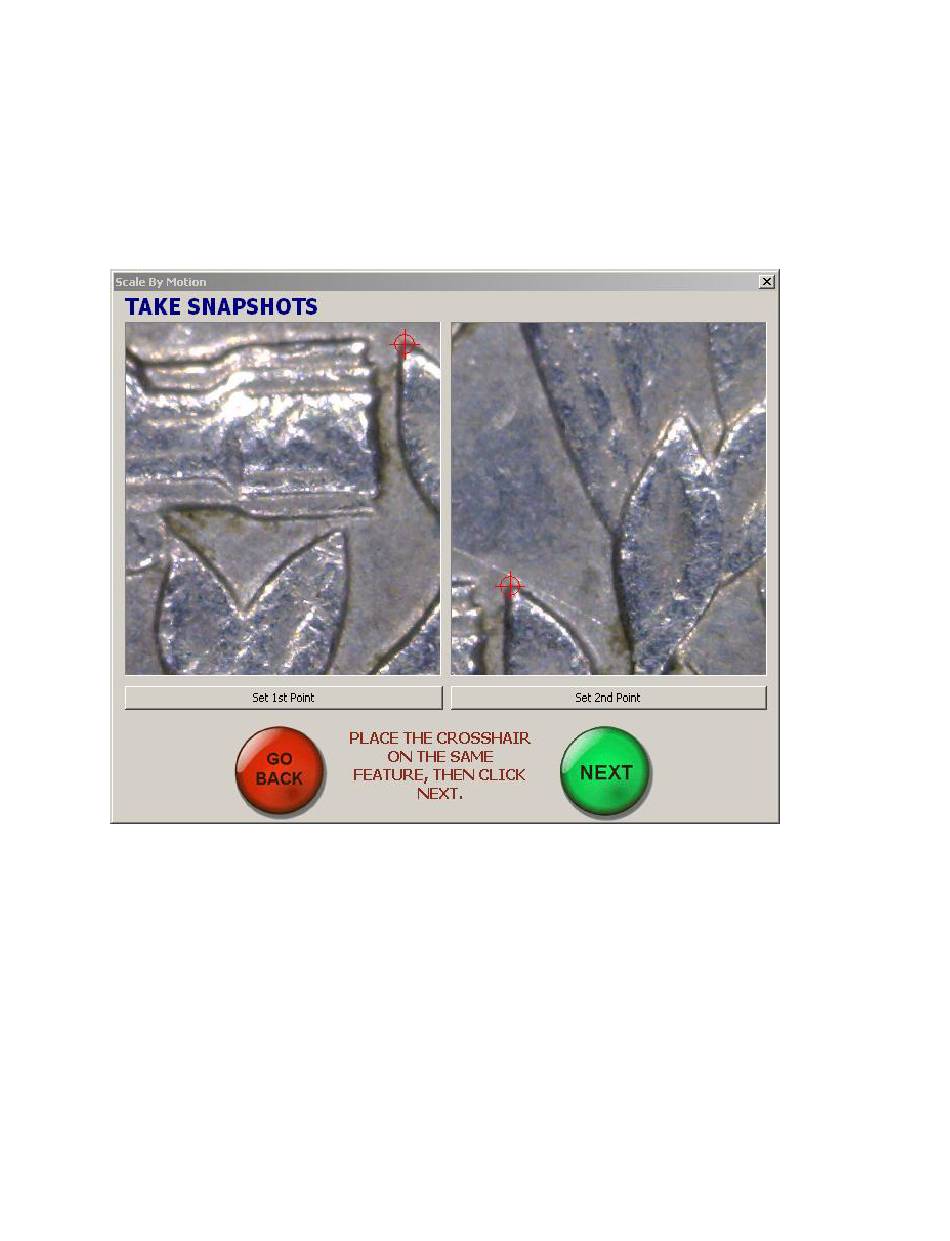

Figure 22. Identifying the same point in two frames of reference for Scale by Motion.
With both snapshots taken, the next step is to position the crosshair cursor on the point of interest in
each snapshot viewport. To do so, simply click on the point as shown in Figure 22. When you have
successfully selected the same point in both snapshots, choose "Next" to start the scan.
