5.5 Picking a Start Point

The next step is to pick the start point for the scan. This point corresponds to the lower left hand

corner of the image. To do so, simply position the crosshair cursor over the start point of the scan by

moving the X and Y axes of the machine. You can use the arrows shown in the lower left of Figure 11,

or the standard machine controls. When you are over the start point, click "set start point".

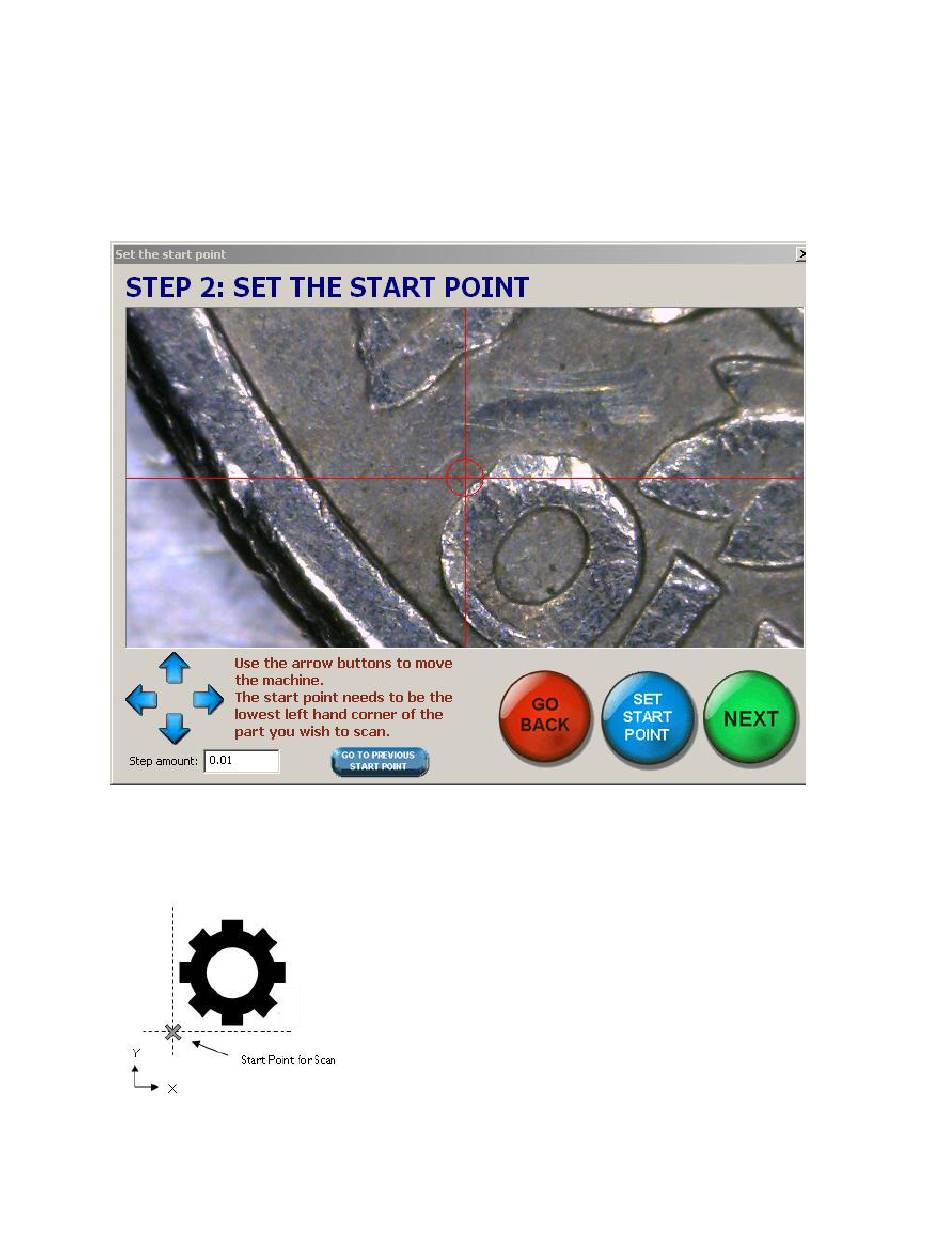

Figure 11. Establishing the Start Point

Figure 12. Setting the start point for a

scan.

Tormach® CNC Scanner

CNC Scanner

CNC Scanner assigns the start point a value of (X0.050,

Y0.050). This assures that the area directly around the start

point is included in the scan Figure 12.
