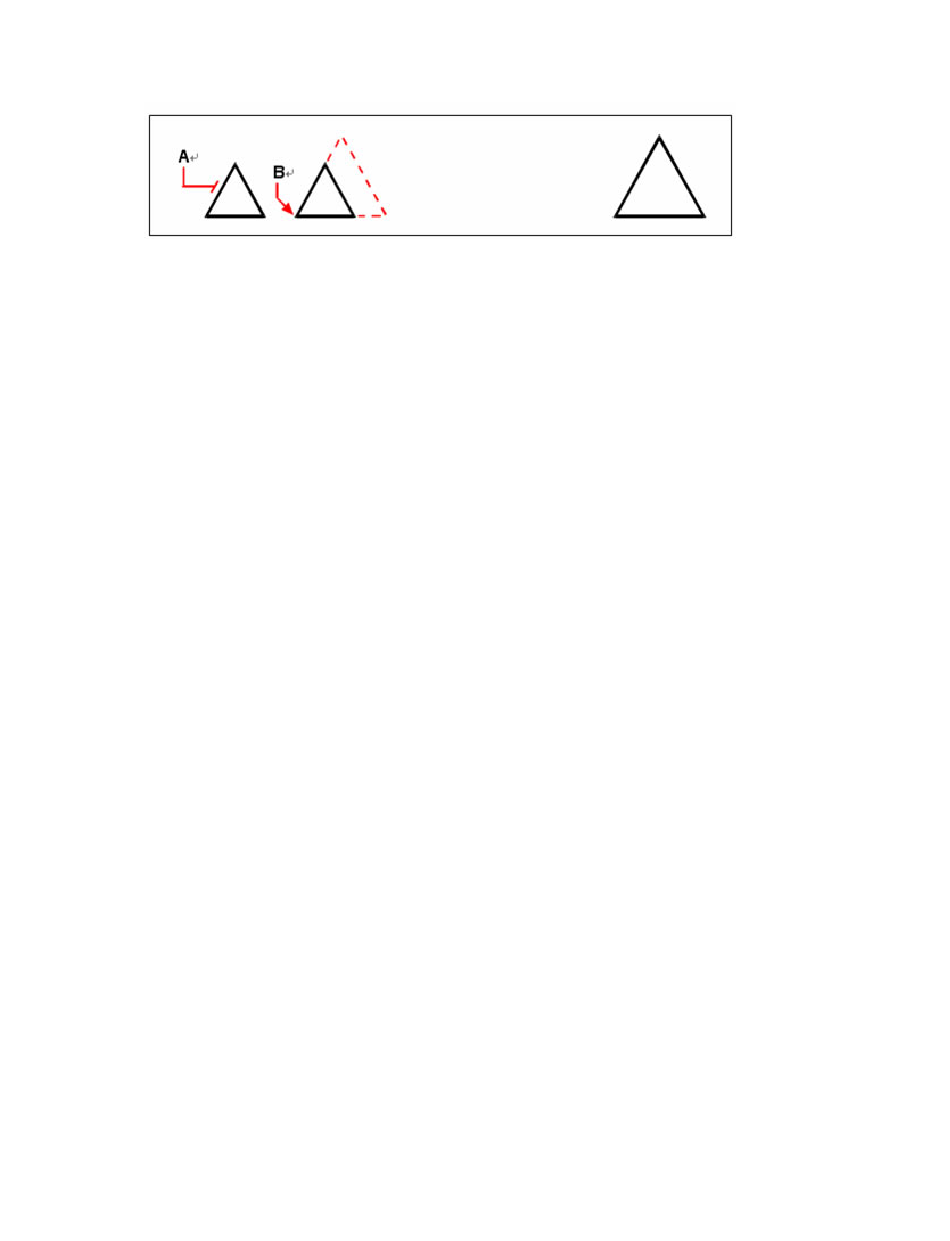

To scale an object by a scale factor, select the object (A),and then specify the base point (B) and
the scale factor

10.10 Stretch Objects

Stretch objects using the grab handles.
1. Choose Modify > Stretch
2. Click on the object or use a window to select multiple objects
3. Click on a grab handle and move the cursor to stretch the object

10.11 Trim or Extend Objects

Shorten or lengthen objects to meet the edges of other objects. You may connect edges of objects
through trimming or extending. When trimming or extending objects, you will need to specify cutting
edges to trim or a boundary to extend, then you select objects to cut or extend.
Command line TRIM
You may clip or trim, objects so they end at one or more implied cutting edges defined by other
objects. You may also trim objects to the point at which they would intersect an implied cutting edge.
When trimming objects, one first selects the cutting edges and then specify the objects to trim, selecting
them either one at a time or using the fence selection method.
You may trim arcs, circles, lines, unclosed polylines, and rays. In which, arcs, circles, lines, polylines, rays,
infinite lines, and viewports on a Layout tab can act as cutting edges.
10.11.1

To trim an object

1. Choose Modify > Trim.
2. Select one or more cutting edges, and then press Enter.
3. Select the object to trim.
4. Select another object to trim, or press Enter to complete the command.
