Getting Started with Tormach® CNC Scan CAD

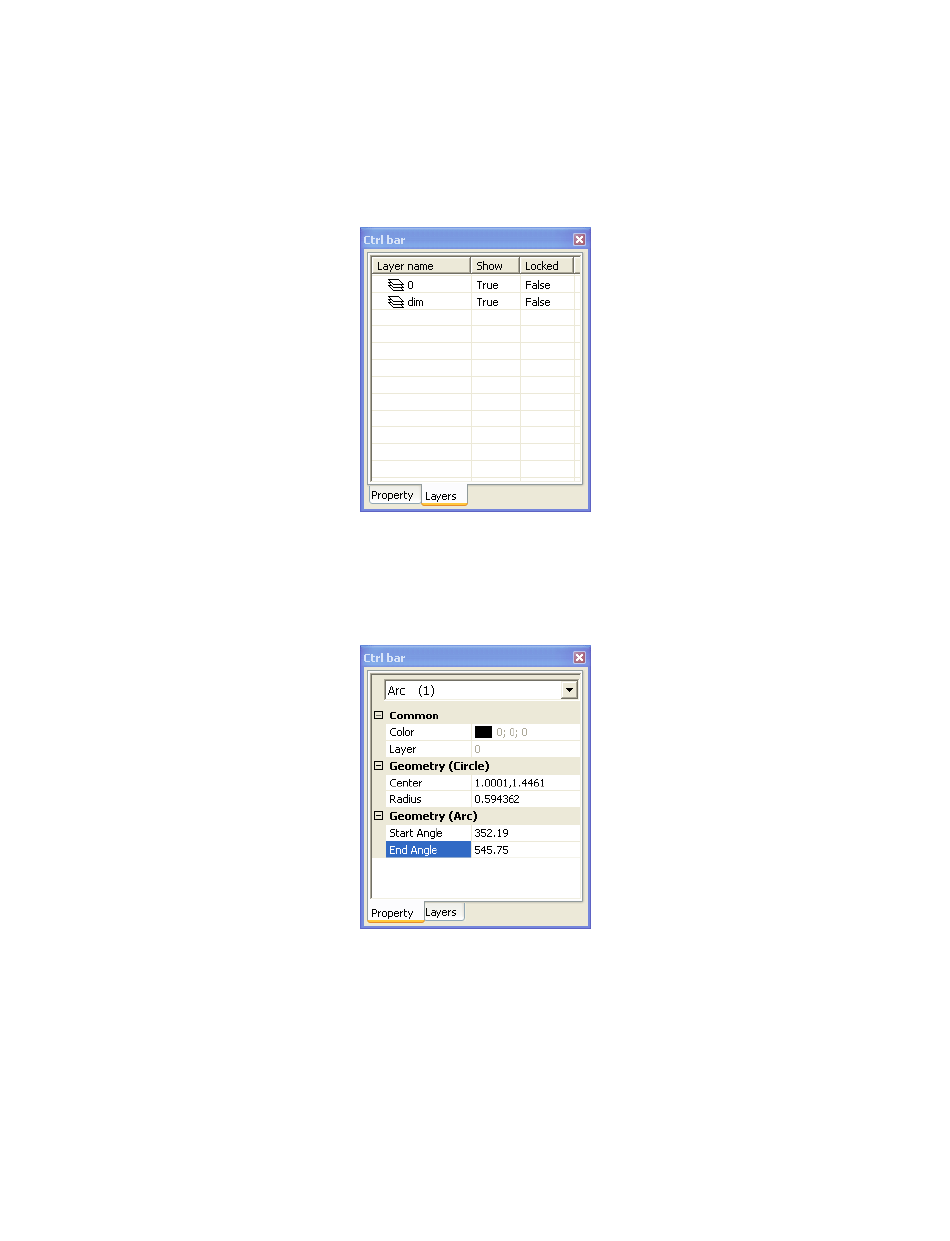

6.8 Layer tab
The Layer/Property window is displayed by selecting "Toggle Layer Bar" in the Tool Menu. The layer tab
displays the current layers and their properties.
6.9 Property tab
The property tab displays to properties of each object. You can either select the objects from the pull
down menu or select them by choosing them with the cursor. You can change object geometries by
highlighting their values and entering new values.
6.10 Export tab
The Image and Export Tabs are located below the top toolbar. The Export Tab is used to export the
current CNC Scan CAD drawing as a .DXF file.
Note: In order to execute this command, the hardware dongle must be installed.
UM10138_0712A
32
Tormach® CNC Scanner
