4 CNC SCOPE

4.1

Using CNC Scope

To use CNC Scope choose Plugin Control

4.2 Working with CNC Scope

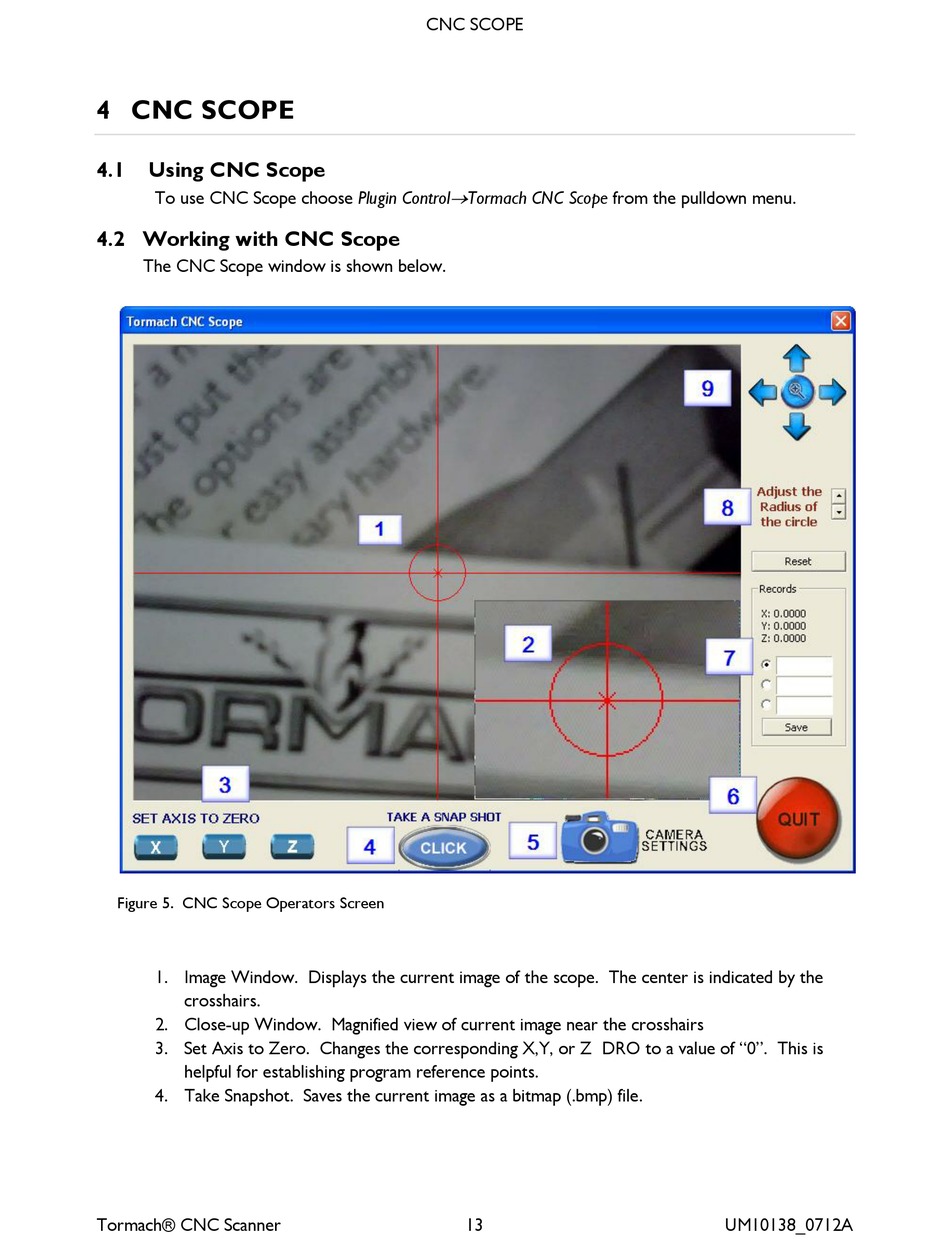

The CNC Scope window is shown below.
Figure 5. CNC Scope Operators Screen
1. Image Window. Displays the current image of the scope. The center is indicated by the
crosshairs.
2. Close-up Window. Magnified view of current image near the crosshairs
3. Set Axis to Zero. Changes the corresponding X,Y, or Z DRO to a value of "0". This is
helpful for establishing program reference points.
4. Take Snapshot. Saves the current image as a bitmap (.bmp) file.
Tormach® CNC Scanner
CNC SCOPE
Tormach CNC Scope from the pulldown menu.
13
UM10138_0712A
