1. Choose Draw > Circle>Tan, Tan, Radius.
2. Select the first tangent point on the object to be tangent with the circle.
3. Select the second tangent point on the object to be tangent with the circle.
4. Specify the radius of the circle.

12.4 Rectangle Tool

Command line: RECTANG
With CNC Scan CAD, rectangles are 4 closed lines. You may draw a rectangle by specifying either two
of its opposite corners.

12.4.1 To draw a rectangle

1. Choose Draw > Rectangle.
2. Specify one corner of the rectangle.
3. Specify the opposite corner of the rectangle.

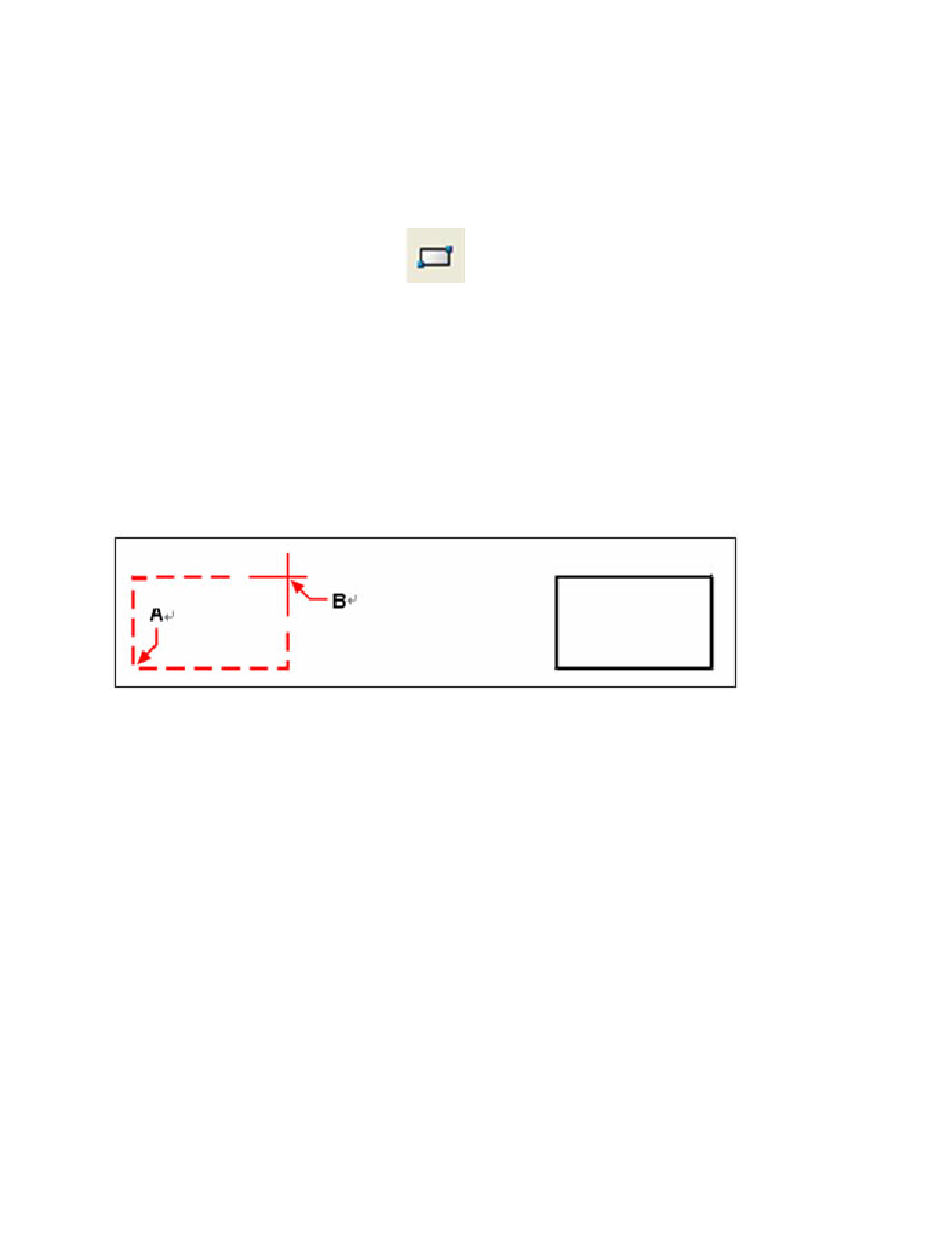

Specifying opposite corners (A, B) results in the rectangle shown on the right.
