12.2.6 To draw an arc by specifying two points and an included angle

1. Choose Draw > Arc
2. Specify the start point.
3. Press 'C' key to specify the center point or 'E' to specify the end point.
4. Specify the center or end point.
5. Press 'A' key to specify the include angle.
6. Specify included angle.

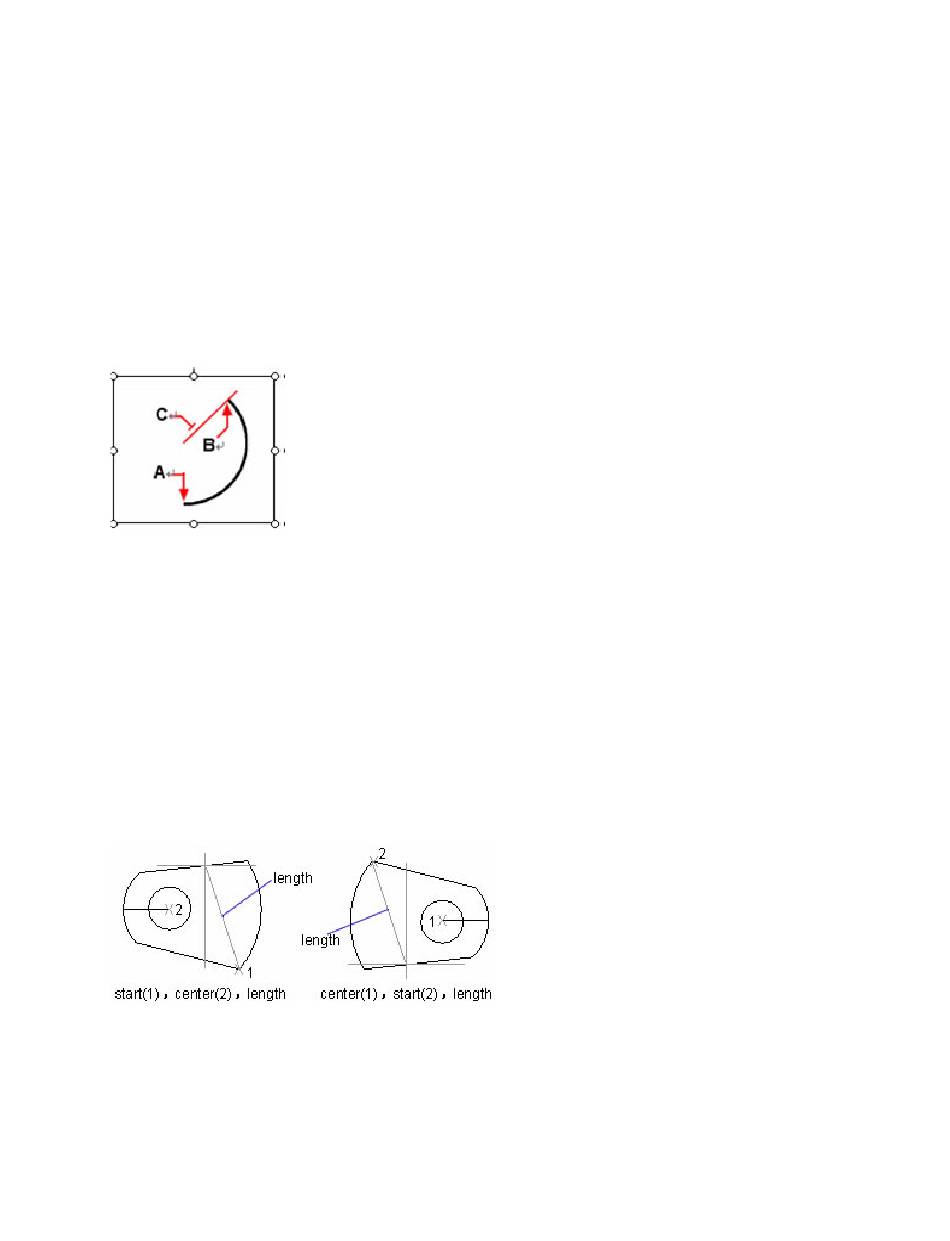

Start point (A), endpoint (B), and included angle (C)
To draw an arc in a counterclockwise direction, enter a positive value for the included angle. To draw
an arc in a clockwise direction, enter a negative value for the included angle.

12.2.7 Draw Arcs by Specifying Start, Center, Length

Draw an arc by specifying the center of the arc after picking the start point of arc and then specifying
the length of arc. Or use Center, Start, Length, which is actually equivalent to specifying the included
angle.

12.2.8 Draw Arcs by Specifying Start, End, Direction/Radius
