CD3340B/YB4411
TRANSMISSION AND TORQUE CONVERTER
Solenoid Valve
Disassembly/Assembly

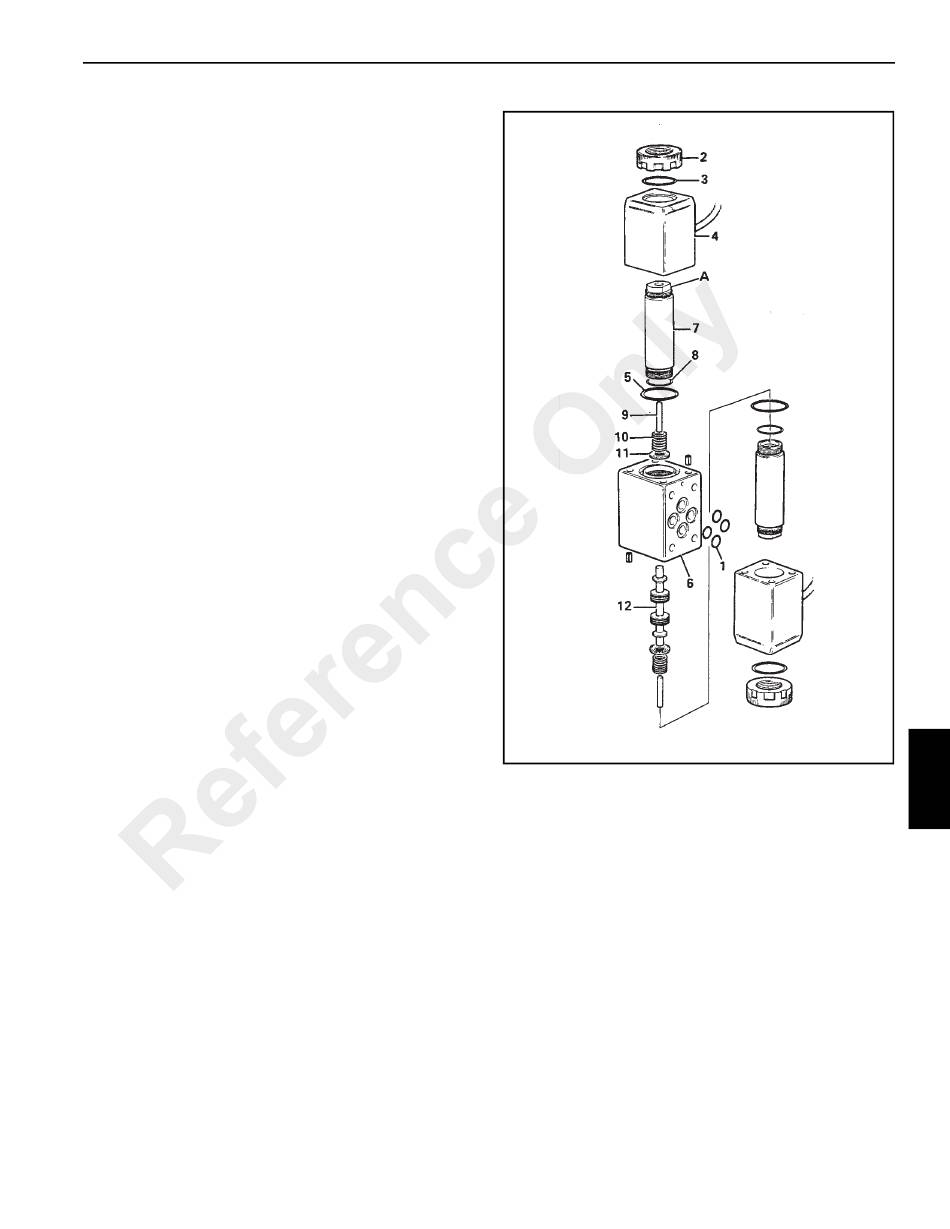

The numerical sequence shown in Figure 7-83 is intended
as a guide for disassembly.
For assembly the sequence should be reversed.
For clarity, only one solenoid has been numbered in the
disassembly sequence.
FIGURE 7-83
a0314
7
GROVE
Published 04/07/2015 Control # 569-00
7-59
