CD3340B/YB4411
a2268

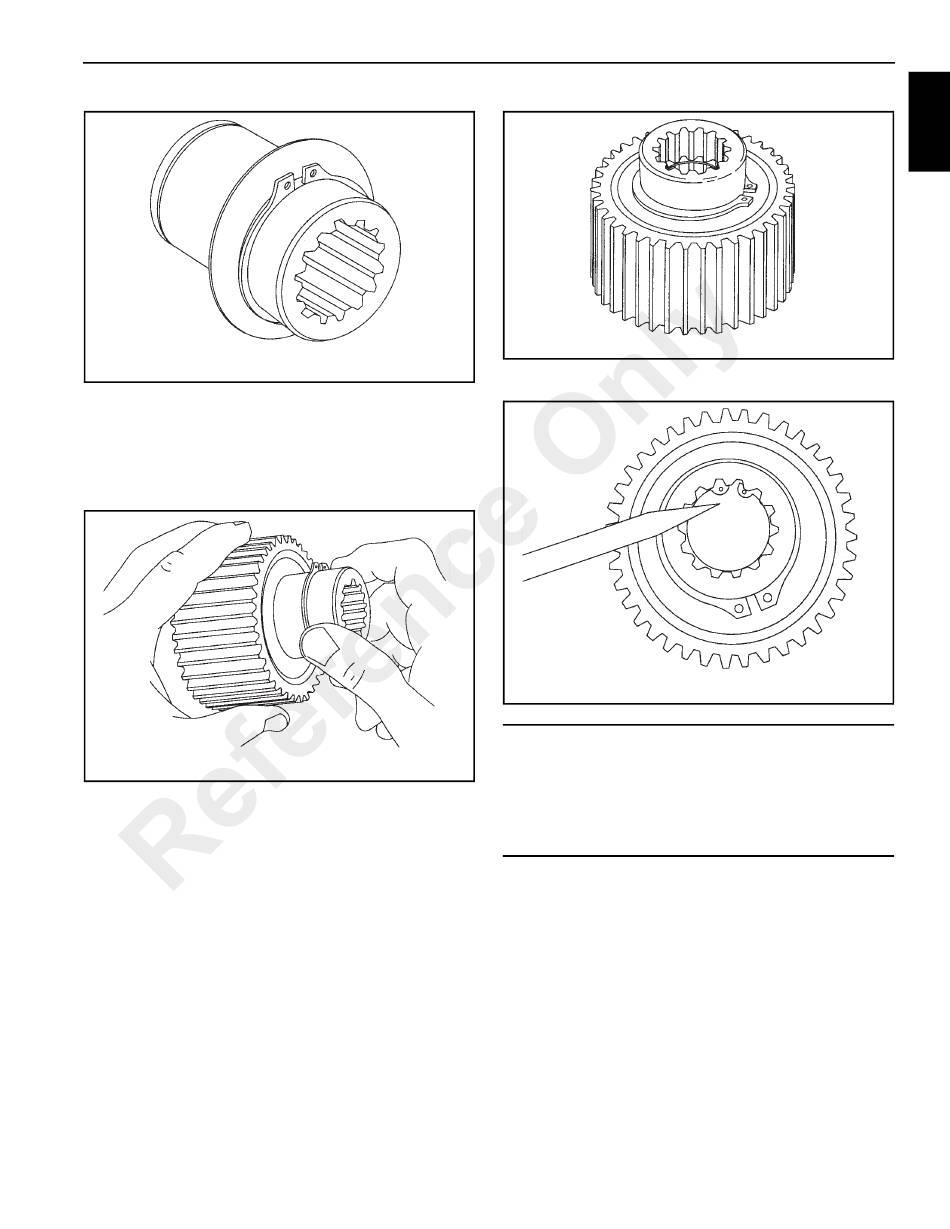

5. Slide the inner race through the bushings and sprag
clutch. The race will have to be rotated in the
freewheeling direction to start it through the sprag
clutch. If the inner race will not go through the bushings,
the bushings have probably been damaged and should
be replaced.
a2269
6. Turn the assembly over with the snap ring down. Install
the second retainer and snap ring (Figure 11-131). Make
sure the snap ring is properly seated in the groove.
GROVE
a2271
FIGURE 11-129
Figure 11-132 shows a completed clutch assembly.
a2272
FIGURE 11-130
Be certain the snap ring is seated in the groove in the
spline bore of the inner race. This snap ring will keep the
brake clutch assembly correctly positioned in the center of
the friction brake pack. Binding of the brake or brake
failure may occur if this snap ring is omitted.
Published 04/07/2015 Control # 569-00
STRUCTURAL
FIGURE 11-131
FIGURE 11-132
CAUTION
11
11-51
