CD3340B/YB4411

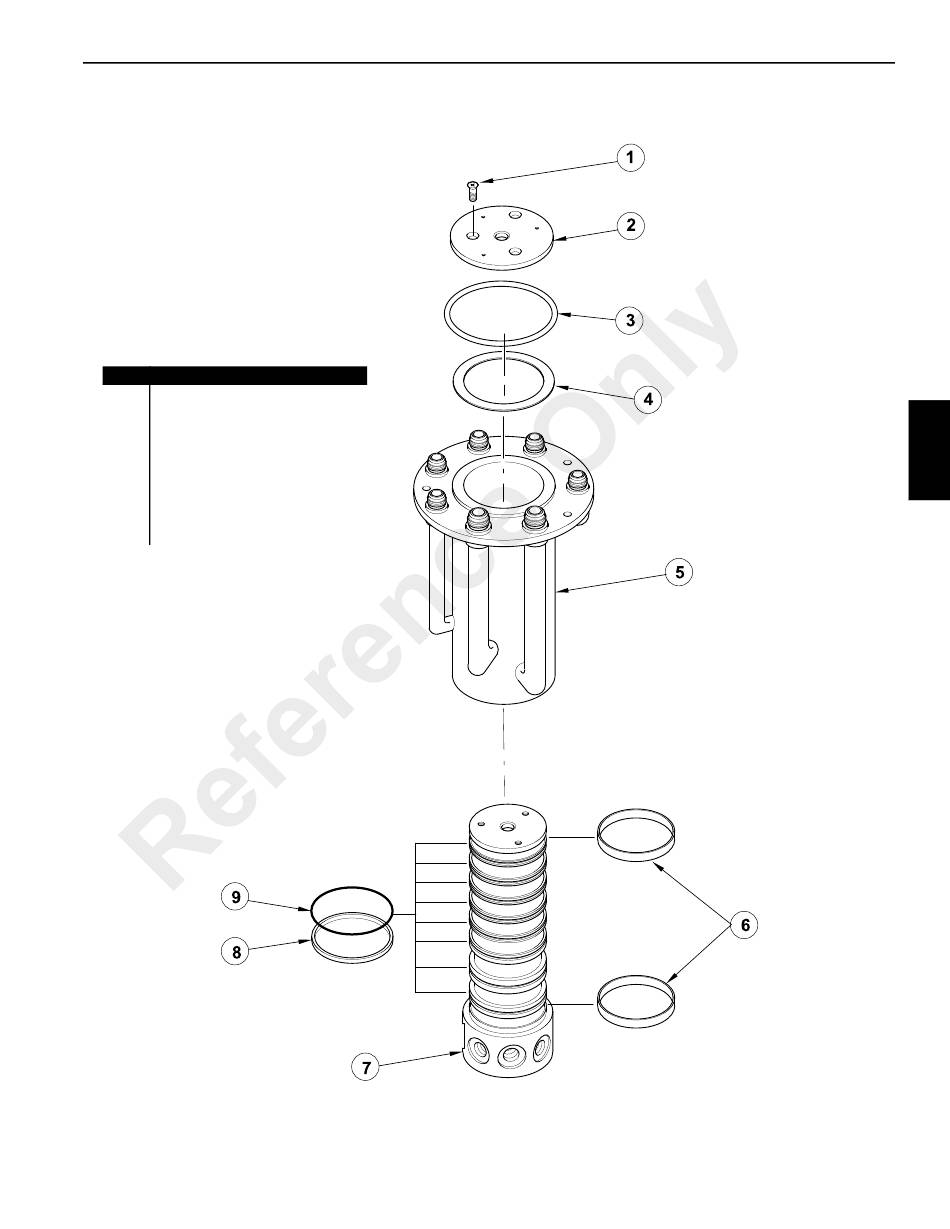

Item Description
1 Flat Head Screw (3)
2 Flange
3 O-ring*
4 Thrust Washer*
5 Swivel Housing
6 Seal (2)*
7 Swivel Stem
8 Seal (8)*
9 O-ring (8)*
* Included in Seal Kit
a0962
GROVE
Published 04/07/2015 Control # 569-00
HYDRAULIC SYSTEM
FIGURE 4-36
4-43
4
