CD3340B/YB4411
Component Identification for Figure 7-30
Figure 7-30 shows all the components which are referred to in the disassembly/assembly procedures. Item numbers
correspond with numbers in the instructions and the following illustrations.
Item Description
1 Bolt
2 Oil Strainer
3 Gasket
4 Drain plug
5 Oil Filter
6 Oil Pressure Switch
7 Speed Sensor
8 Sealing Caps (6)
9 Capscrew (6)
10 Solenoid Control Valve (Forward High/Low
11 Solenoid Control Valve (Mainshaft/Layshaft)
12 Solenoid Control Valve (Reverse High/Low)
13 O-rings (12)
14 Transmission Pump Mounting Screws (4)
15 Transmission Pump Assembly
16 Pump Sealing Ring
17 Pump Housing Oil Seal
18 Plug
19 Pressure Maintenance Valve
20 Bolt (14)
21 Solenoid Adapter Block
22 Screw (3)
23 Baffle Plate
24 Gasket
25 Torque Converter Relief Valve
26 Cover Bolts (4)
27 Layshaft End Cap
28 Gasket
29 Shim(s)
30 O-ring
11. Remove and discard pump sealing ring (16).
12. Separate the pump components.
13. Remove and discard oil seal (17) from the pump
housing.

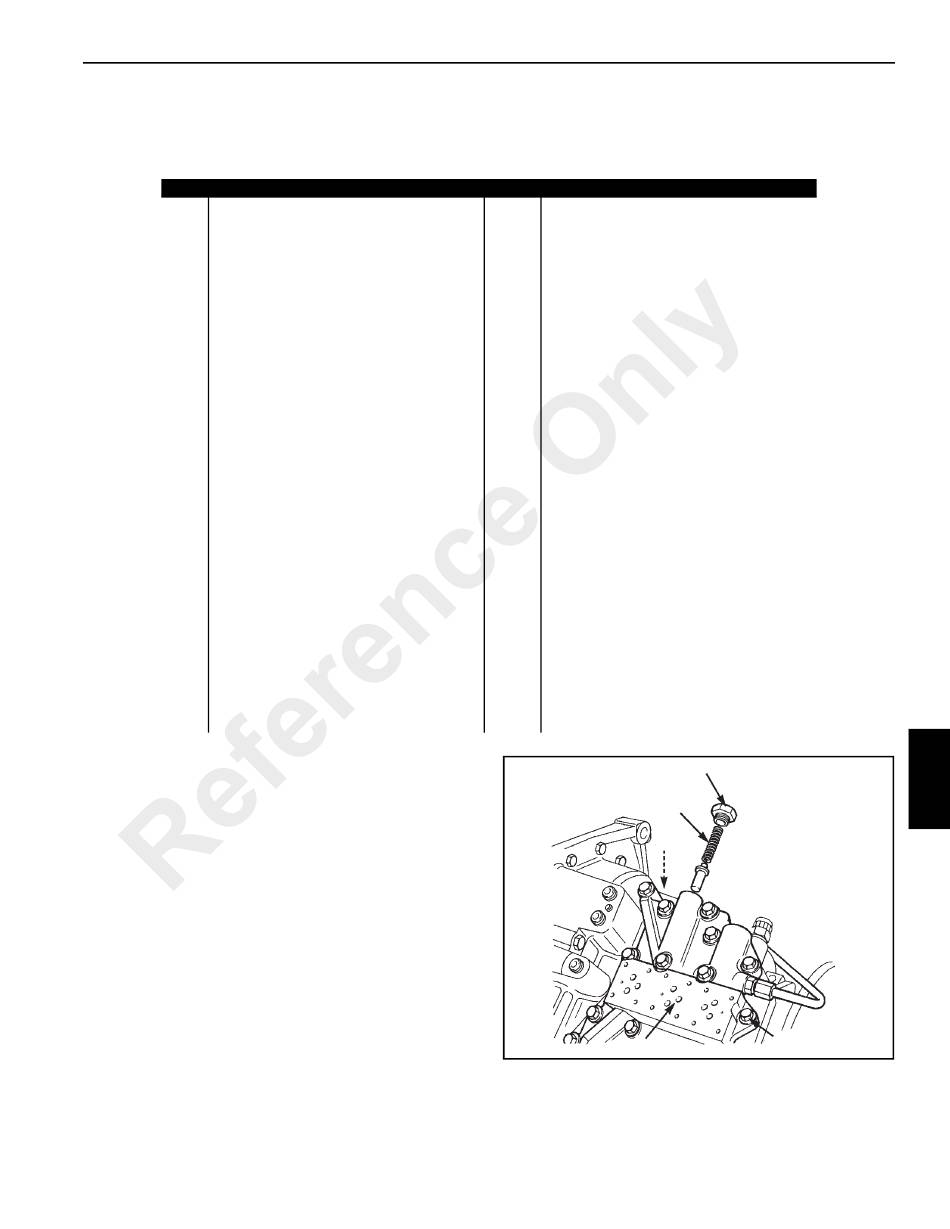

14. Unscrew plug (18, Figure 7-31) and remove the
pressure maintenance valve spool and spring (19).
15. Unscrew fourteen bolts (20) and remove solenoid
adapter block (21).
16. Remove and discard gasket (52).
GROVE
TRANSMISSION AND TORQUE CONVERTER
Item Description
31 Case Mounting Bolts
32 Transmission Rear Case (Output end)
33 O-ring (3)
34 Shim(s)
35 Case Mounting Bolts (11)
36 Flywheel Housing
37 Dowels(2)
38 Brake Disc
39 Output Shaft Washer
40 Output Shaft Nut
41 Output Shaft
42 Oil Seal
43 Outer Taper Roller Bearing
44 Spacer
45 Inner Taper Roller Bearing
46 Piston Ring Seals
47 Forward Shaft Sealing Plug
48 Sealing Washer
49 Transmission Front Case (Input End)
50 Spacer
51 O-ring (2)
52 Adapter Block Gasket
53 Brake Mounting Plate
54 Taper Roller Bearing (8)
55 Spacer
56 Copper Washer
P Forward Clutch Assembly
Q Mainshaft Clutch Assembly
T Layshaft Clutch Assembly
Y Input Clutch Assembly
A0807
Published 04/07/2015 Control # 569-00
18
19
52
20
FIGURE 7-31
21
7
7-35
