Manitowoc Grove CD3340B Service Manual page 206

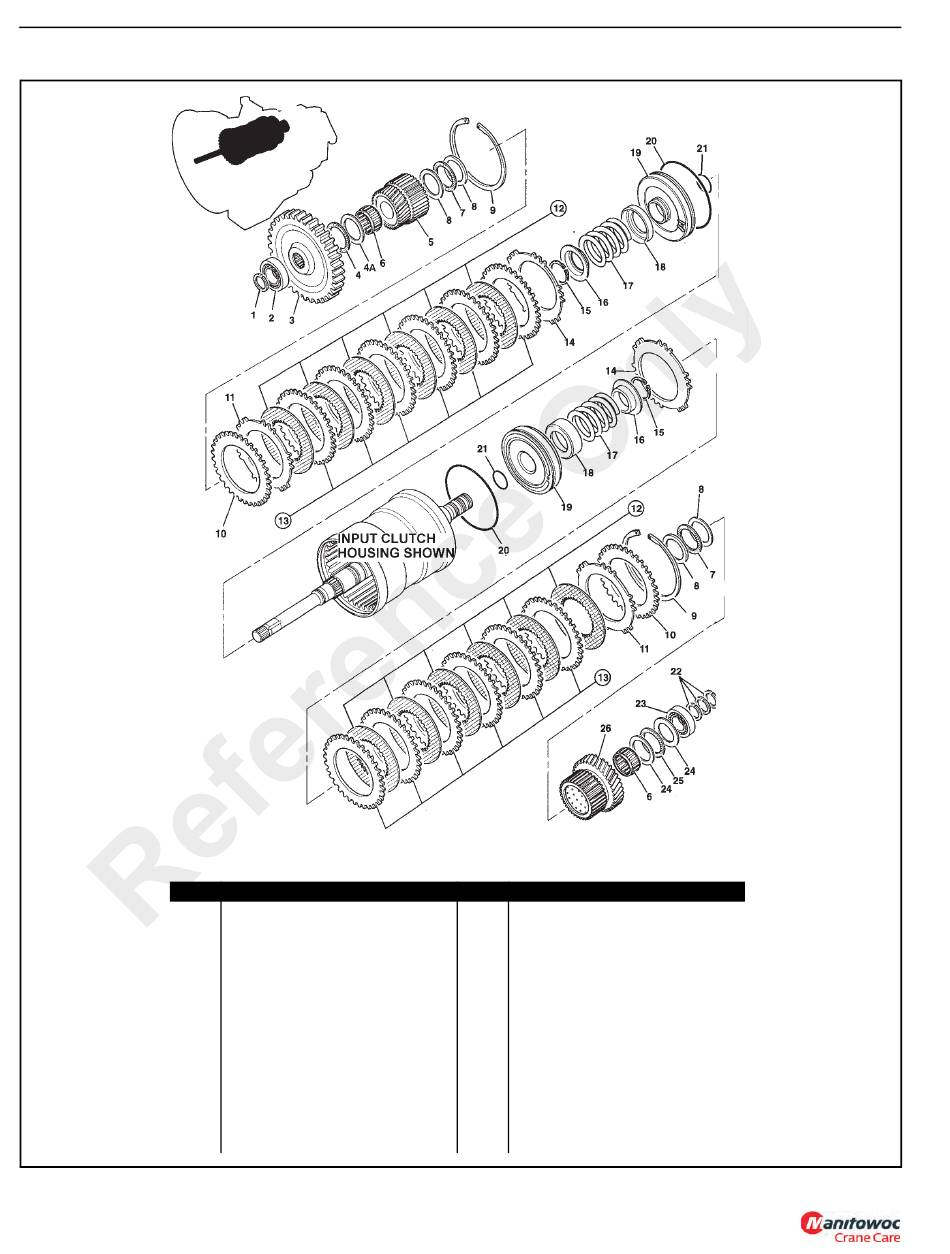

TRANSMISSION AND TORQUE CONVERTER
a0834
Item
1
2
3
4
4a
5
6
7
8
9
10
11
12
7-50
Description
Piston Ring Seal
Bearing
Gear
Needle thrust bearing
Thrust washer
Hub assembly
Needle roller bearing
Thrust washer (2)
Thrust washer (4)
Retaining ring (2)
Shim (2)
Pressure end plate.(2)
Friction plates (12)
Published 04/07/2015 Control # 569-00
Item Description
13 Counter plates (12)
14 Disc spring
15 Retaining ring (2)
16 Spring retaining plate (2)
17 Spring (2)
18 Oil baffle (2)
19 Piston (2)
20 O-ring (2)
21 O-ring (2)
22 Piston ring seals (2)
23 Bearing
24 Thrust washer (2)
25 Needle roller thrust bearing
CD3340B/YB4411
FIGURE 7-70
