Manitowoc Grove CD3340B Service Manual page 300

STRUCTURAL
a0847
11-8
Published 04/07/2015 Control # 569-00
CD3340B/YB4411
Item Description
1 Washer
2 Cotter Pin
3 Castle Nut
4 Counterbalance Valve
5 Telescope Cylinder
6 Chain Sheave
7 Bearing (2)
8 Nylatron Spacer (2)
9 Lockwasher (4)
10 Capscrew
11 Extend Chain Roller Bracket
12 Grease Filling (2)
13 Chain Roller Pin
14 Retaining Ring (2)
15 End Guide Bracket
16 Cylinder End Slide Pad
17 Lockwasher (2)
18 Capscrew (2)
19 Capscrew (4)
20 Lockwasher (4)
21 Flat Washer (4)

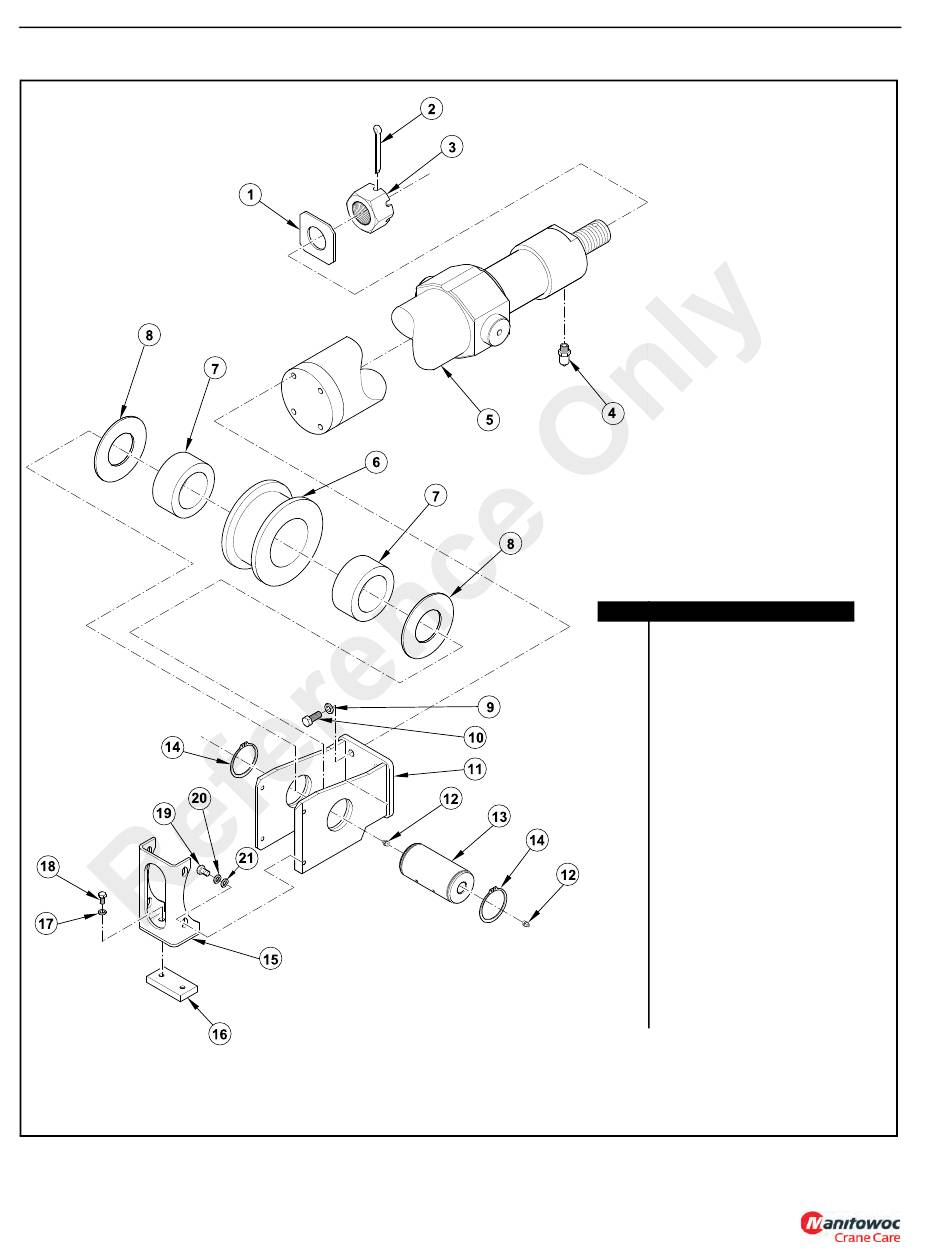

FIGURE 11-10
