CD3340B/YB4411

Layshaft Clutch Repair

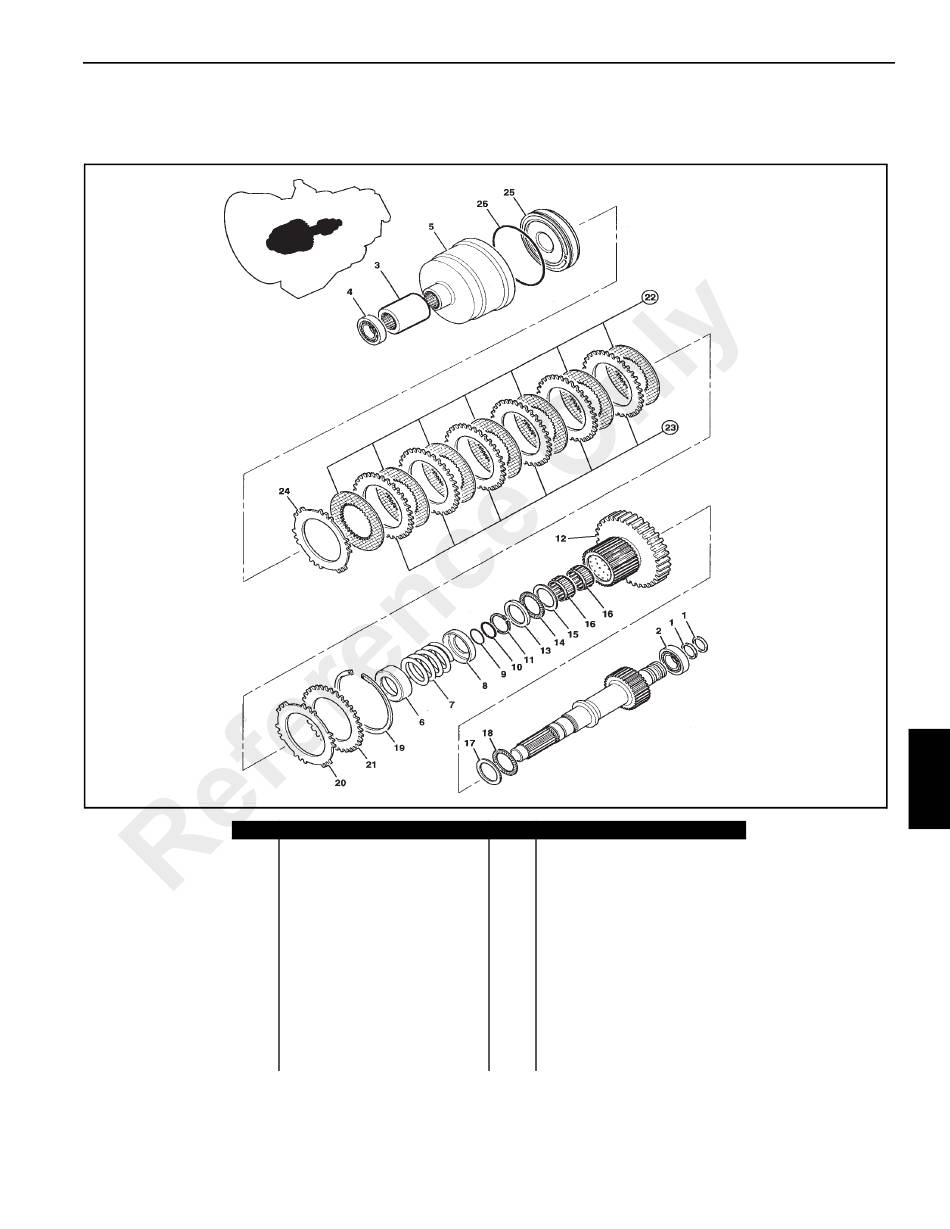

Component Identification for Figure 7-77
a0841
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
Disassembly
NOTE: Use both Figure 7-77
GROVE
Description
Piston Rings (2)
Taper Roller Bearing
Spacer
Taper Roller Bearing
Piston Housing
Spring Retainer Plate
Spring
Oil Baffle
O-ring
O-ring
Retaining Ring
Splined Hub
Thrust Washer
and Figure 7-78 for
Published 04/07/2015 Control # 569-00
TRANSMISSION AND TORQUE CONVERTER
Item Description
14 Needle Thrust Washer
15 Thrust Bearing
16 Needle Roller Bearing (2)
17 Thin Thrust Washer
18 Needle Thrust Washer
19 Retaining Ring
20 Pressure Plate
21 Shim
22 Friction Plates (7)
23 Counter Plates (6)
24 Pressure Plate
25 Piston
26 O-ring
reference. Item numbers are the same in both
illustrations.
7
FIGURE 7-77
7-55
