STEERING SYSTEM
5.
Remove the four bolts which fasten the steering column
and orbitrol to the mounting bracket. Be sure to hold the
steering orbitrol in position while the last bolt is being
removed. Remove the steering orbitrol.
Disassembly
Cleanliness is extremely important when repairing a steering
orbitrol. Work in a clean area. Use a wire brush to remove
foreign materials and debris from around exterior joints of the
unit.
A0328
10-12
NOTE:
1.
Published 04/07/2015 Control # 569-00
Although not all illustrations show the unit in a vice,
we recommend that you keep the unit in a vice
d u r i n g d i s a s s e m b l y. F o l l o w t h e c l a m p i n g
procedures explained throughout the instructions.
Clamp the unit in a vise, meter end up. Clamp lightly on
the edges of the mounting area (Figure 10-10). Use
protective material on the vise jaws. Housing distortion
could result if the vise jaws are overtightened.

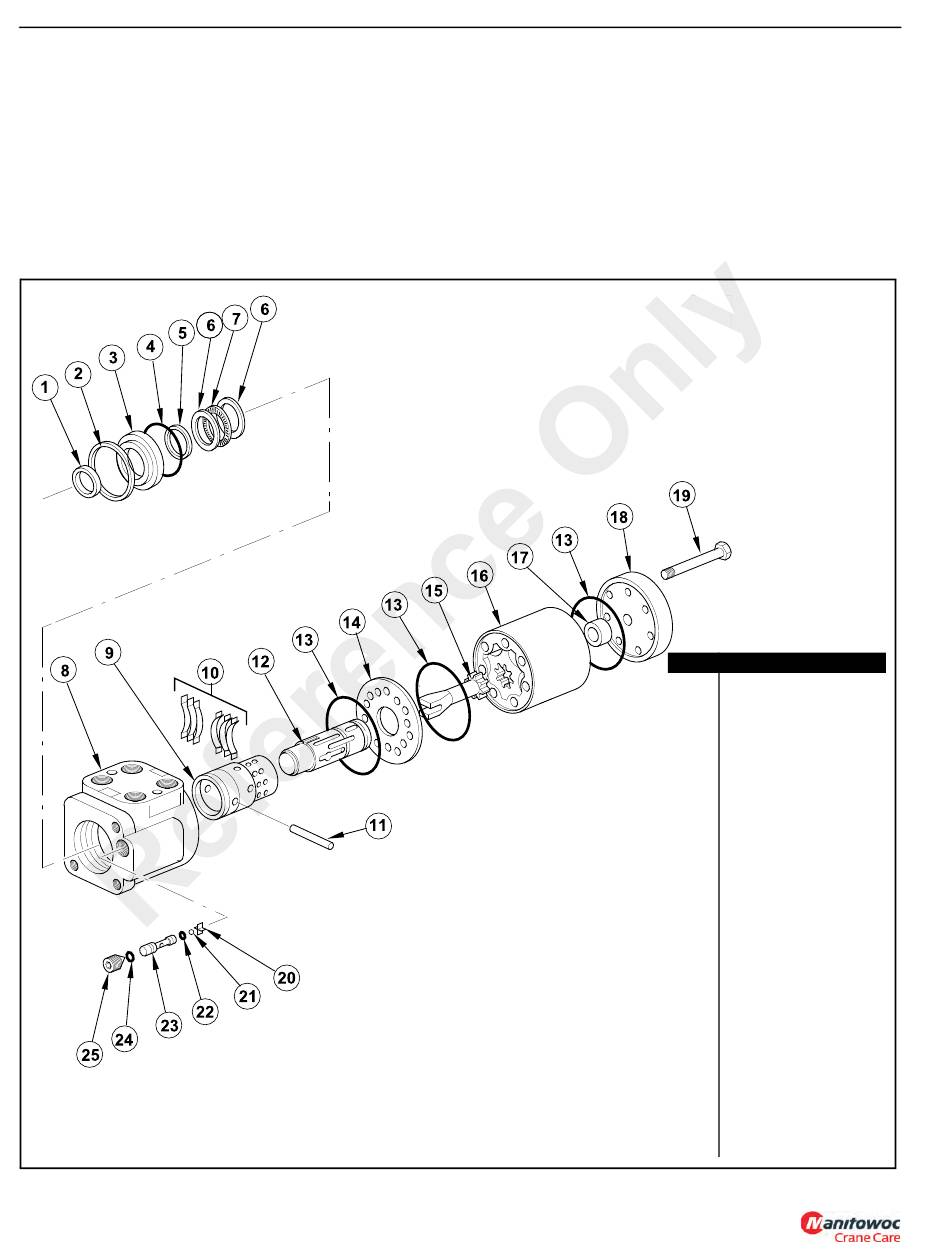

Item
FIGURE 10-9
CD3340B/YB4411
Description
1
Seal
2
Retaining Ring
3
Seal Gland Bushing
4
Seal
5
Quad Ring Seal
6
Needle Bearing Kit
7
Control Part Assembly
8
Housing
9
Control Sleeve
10
Centering Spring (6)
11
Centering Pin
12
Control Spool
13
Seal (3)
14
Spacer Plate
15
Drive
16
Gerotor
17
Spacer
18
End Cap
19
Capscrew
20
Check Ball Retainer
21
Check Ball
22
Seal
23
Seat
24
Seal
25
Set Screw
