STRUCTURAL
Item Description
1. Bearing Cup (2)
2. Oil Seal
3. Pinion Shaft
4. Housing
6. Cover
7. Oil Seal
8. Worm Shaft
9. Worm Gear
10. O-Ring
11. Capscrew (6)
12. Bushing
13. Thrust Washer (2)
a2288
9. Install two keys (14) into the end of pinion gear shaft (3).
Press bevel gear (9) onto pinion gear shaft (3). Align the
11-62
Item Description
14. Key (2)
15. Bearing Cone (2)
16. Set Screw
17. Bearing Cone (2)
19. SH Capscrew
20. End Cap
21. O-Ring (2)
22. Motor End Cap
23. Lock Washer
25 Bearing Cup (2)
26. Shim (2)
27. Lock Nut
Published 04/07/2015 Control # 569-00
Item Description
28. Oil Seal
29. Shim (2)
30. Shim (2)
31. Capscrew (4)
33. Pipe Plug (3)
34. Breather
teeth of the bevel gear with the teeth of the worm gear
and shaft.
CD3340B/YB4411

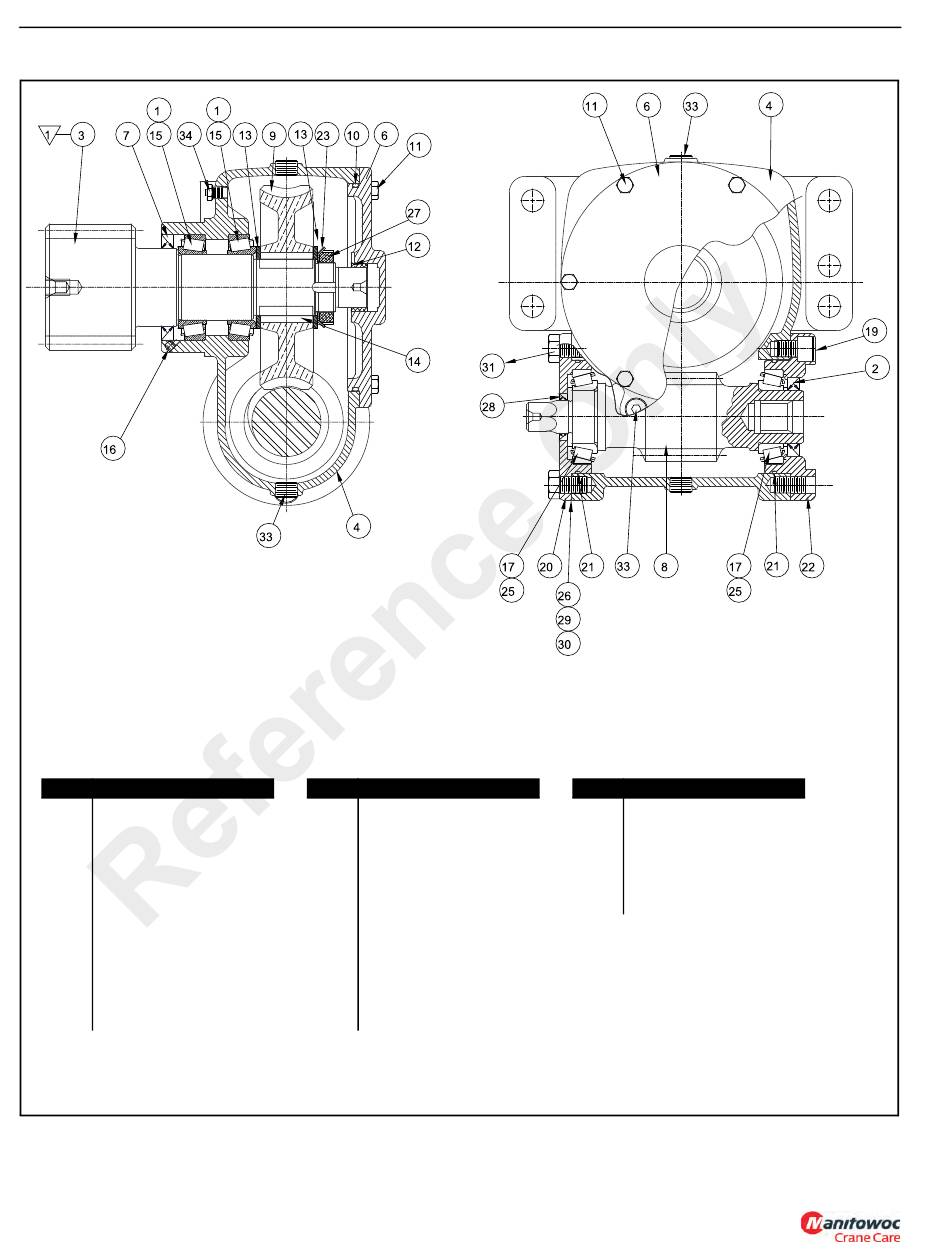

FIGURE 11-145
