BRAKE SYSTEM
Table 9-4
PRIORITY FLOW CONTROL VALVE
Priority Flow Set At
Control Pressure
Relief Valve Setting

DESCRIPTION

There are two brake systems used on the crane; the service
brake system and the parking brake system.

Service Brake System

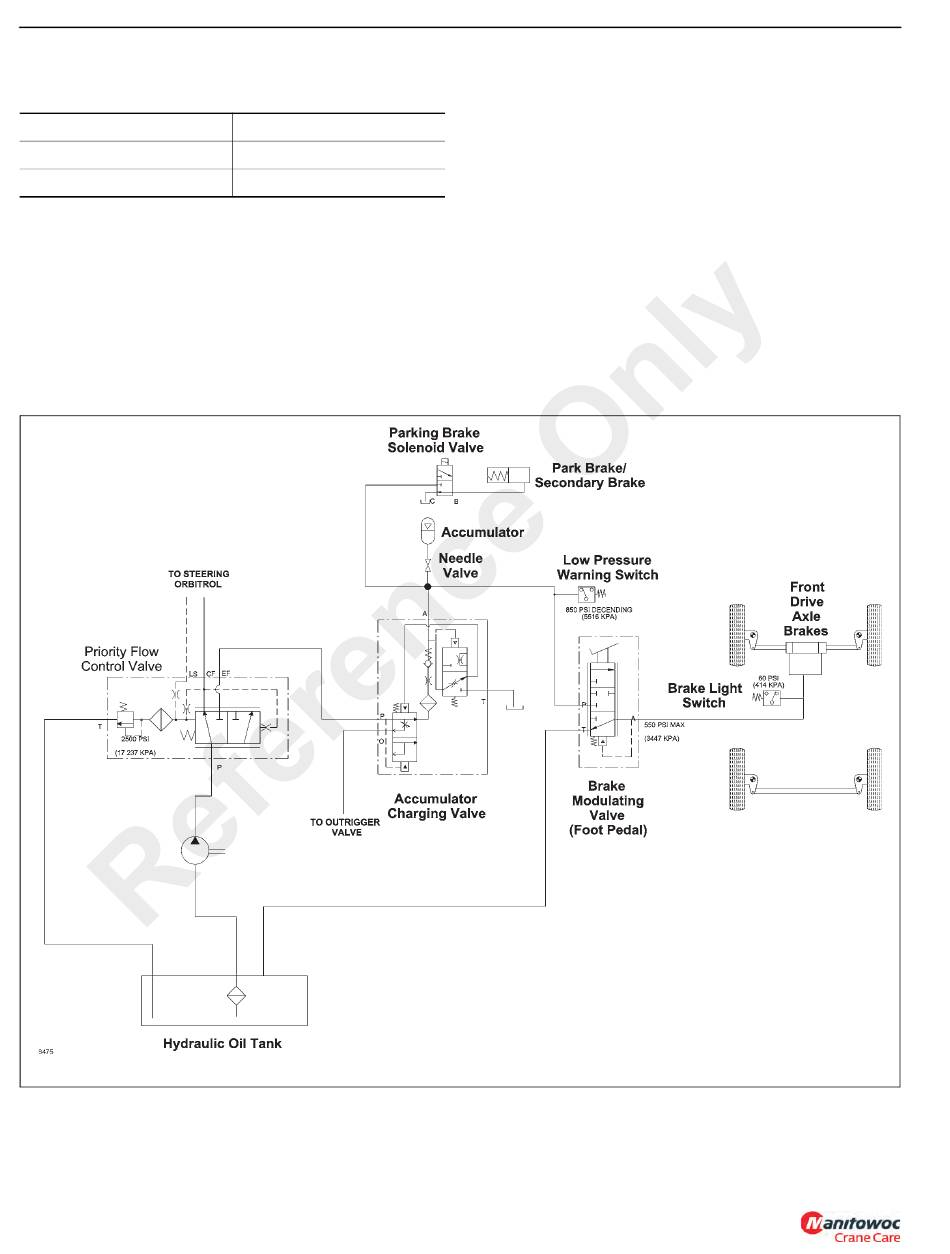

The service brake system (Figure 9-1) consists of the
hydraulic pump, a relief valve included in the priority flow
control valve, an accumulator charging valve, a low pressure
8475
Accumulator Charging Valve
The accumulator charging valve supplies oil to the
accumulator on demand. This is accomplished at a preset
9-2
12. 3 L/min (3.25 gpm)
758 kPa (110 psi)
17 237 kPa (2500 psi)
Published 04/07/2015 Control # 569-00
warning switch, an accumulator, a needle valve, a brake
modulating valve, a brake light switch and the front axle
service brakes.
Description of Operation
Hydraulic Pump
The hydraulic pump supplies hydraulic oil flow to the priority
flow control valve (Figure 9-1).
Priority Flow Control Valve
The priority flow control valve in normal operation supplies oil
to the accumulator charging valve. If oil is required for the
steering operation the priority flow control valve shifts to
furnish flow to the steering system. (See Steering System,
page 10-1.) The priority flow control valve also includes the
relief valve used to protect the steering and brake systems.
rate at a selected pressure; neither of which is adjustable.
The flow to the downstream brake modulating valve will be
reduced fractionally for a short time when the accumulator is
CD3340B/YB4411
FIGURE 9-1
