Checking with Axle Removed from Machine
1. Align the wheel hubs in straight forward position.

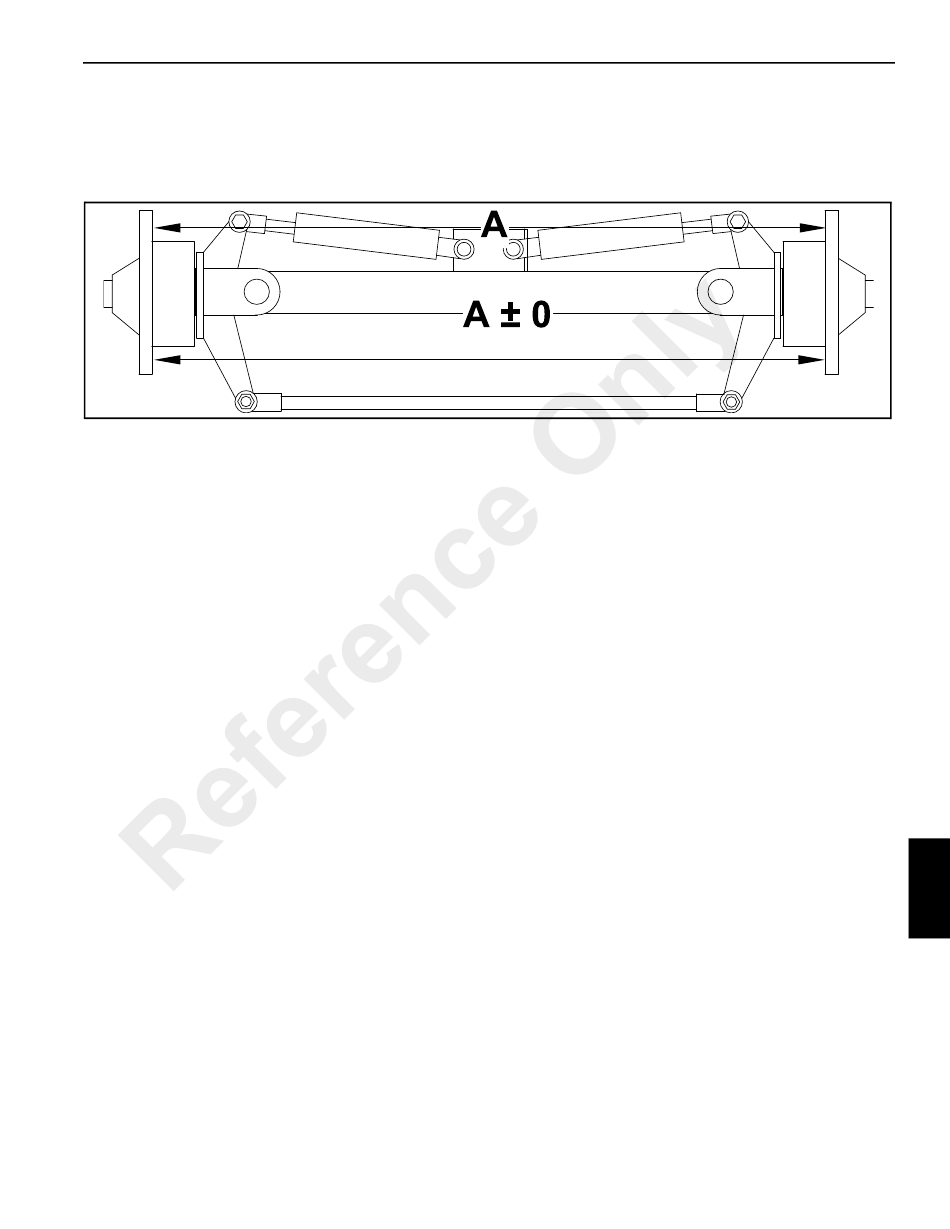

2. Measure the distance between the hubs on both sides of
the axle (Figure 8-15).
A0872
GROVE
AXLES/DRIVE SHAFTS/WHEELS AND TIRES
3. Both dimensions must be the same.
4. If incorrect, use steps 3 through 8 under Checking with
Axle on Machine, page 8-6 to adjust the measurements.
