STRUCTURAL
a0851
11-64
Published 04/07/2015 Control # 569-00

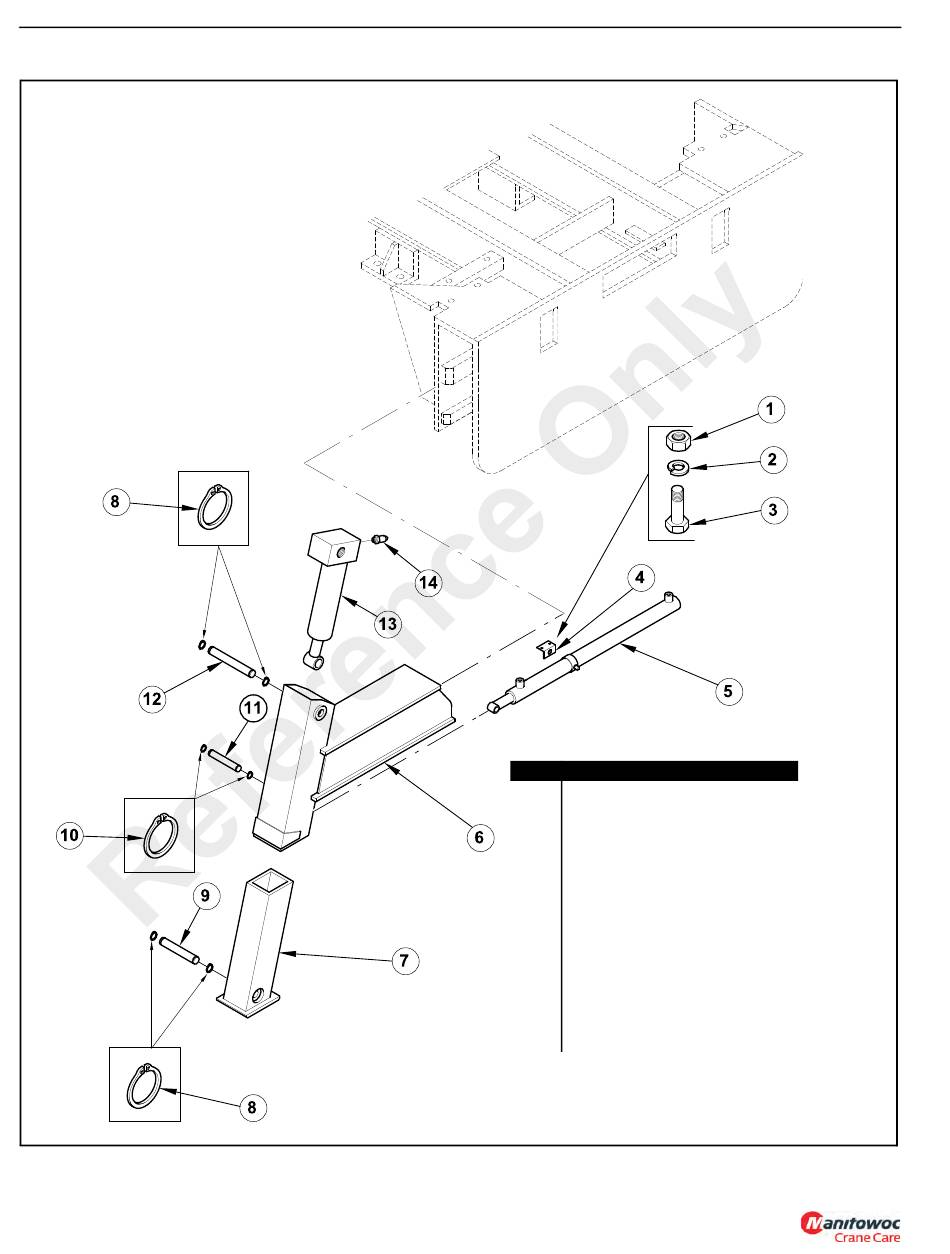

Item
Description
1.
Lock Nut (4)
2.
Flat Washer (4)
3.
Capscrew (4)
4.
Bracket (2)
5.
Horizontal Outrigger Cylinder
6.
Outrigger Beam
7.
Inner Box Assembly
8.
Snap Ring (4)
9.
Pin
10.
Snap Ring (2)
11.
Pin
12.
Pin
13.
Vertical Outrigger Cylinder
14.
Counterbalance Cartridge
CD3340B/YB4411
FIGURE 11-146
