Manitowoc Grove CD3340B Service Manual page 350

STRUCTURAL
Item Description
1. Lockwasher (15)
2. Capscrew (2)
3. Pin Assembly (2)
4. Rope Deflector Roller
5. Capscrew (4)
6. Structural Washer (28)
7. Main Hoist Assembly
8. Counterweight
9. Mast
10. Flat Washer (2)
11. Lock Washer (4)
12. Capscrew (2)
13. Retainer Bar (2)
14. Grease Fitting (6)
15. Pin (2)
16. Capscrew (4)
17. Lockwasher (4)
18. Capscrew (22)
19. Structural Washer (22)
20. Capscrew (4)
21. Spacer (4)
22. Flat Washer (4)
23. Nut (4)
24. Swing Gearbox
25. Gasket
26. Swing Motor
27. Capscrew (4)
28. Bushing
P0314
11-58
Published 04/07/2015 Control # 569-00
CD3340B/YB4411
Item Description
29. Eccentric Ring
30. Mast Bearing
31. Capscrew (24)
32. Lift Cylinder
33. Counterbalance Valve
34. Capscrew (2)
35. Pin Assembly
36. Capscrew (3)
37. Lockwasher (3)
38. Hydraulic Swivel
39. Swivel Stop
40. Pin Assembly
41. Counterweight
42. Capscrew (4)
43. Flange Adapter (2)
44. Spacer Block
45. Capscrew (2)
46. Capscrew (2)
47. Counterbalance Valve
48. Hoist Motor
49. Gasket
50. Capscrew (2)
51. O-ring (4)
52. Line Mount Body
53. Capscrew (3)

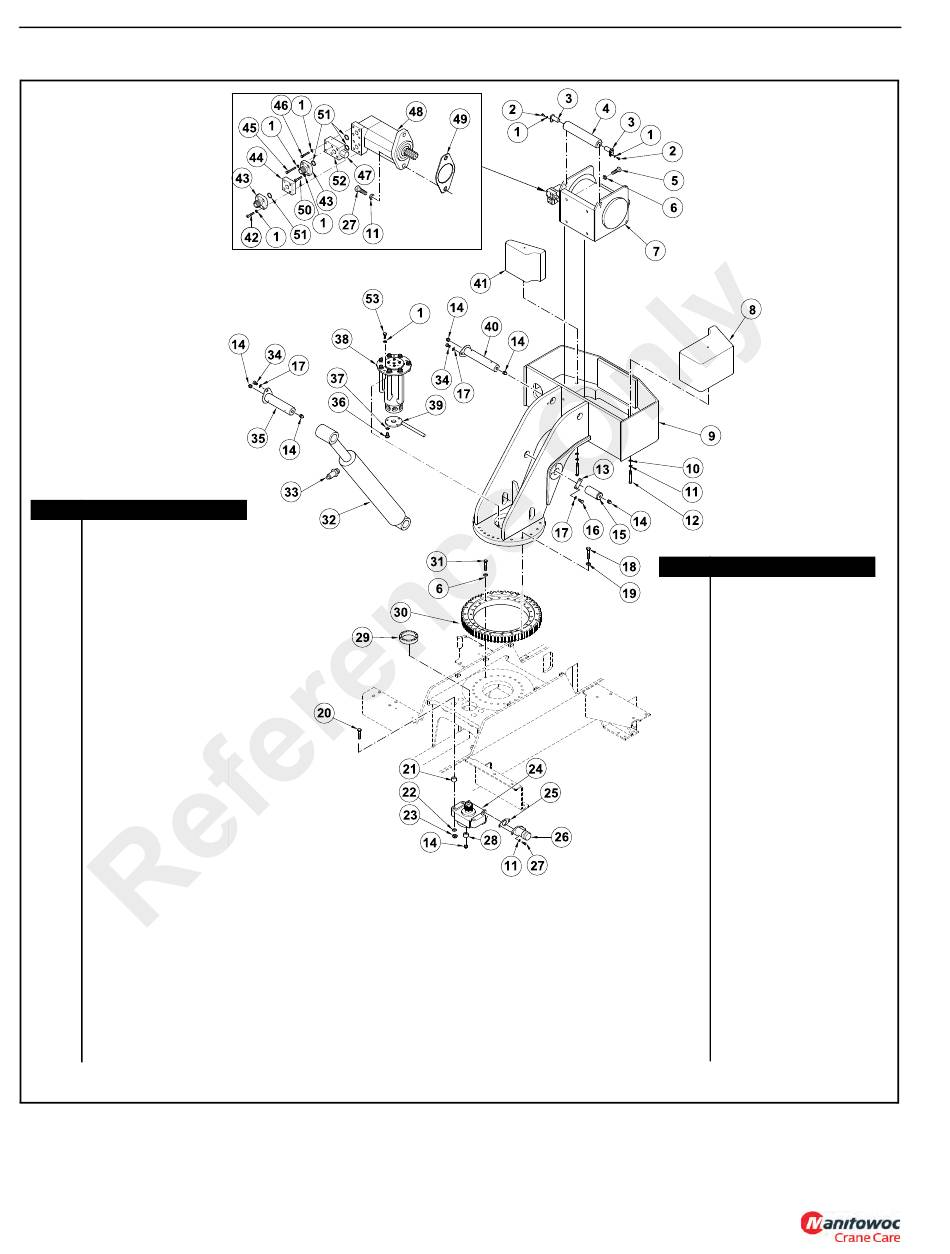

FIGURE 11-142
