STRUCTURAL
Item Description
1. 3rd Boom Section
2. 2nd Boom Section
3. 1st Boom Section
4. Pin
5. Lynch Pin
6. Pin
7. Lockwasher
8. Capscrew
9. Grease Fitting
10. Capscrew
11. Pin
12. Rear Slide Pad
13. Lockwasher (2)
14. Capscrew (2)
15. Lockwasher (4)
16. Capscrew (4)
17. Guide Pad
18. Capscrew (4)
19. Top Slide Pad (2)
20. Extend Chain
21. Extend Chain Pin
22. Cotter Pin (2)
a2288
11-2
Item Description
23. Top Extend Chain End
24. Extend Rod
25. Telescope Cylinder
Assembly
26. Retract Chain
27. Cotter Pin (2)
28. Retract Chain Pin
29. Cotter Pin (2)
30. Extend Chain Pin
31. Bottom Extend Chain
End
32. Capscrew (2)
33. Eccentric (2)
34. Top Slide Pad (2)
35. Lockwasher (4)
36. Capscrew (4)
37. Retract Roller Assembly
38. Lockwasher (2)
39. Capscrew (2)
40. Bronze Wear Pad (4)
41. Lockwasher (8)
42. Capscrew (8)
Published 04/07/2015 Control # 569-00
Item Description
43. Bottom Slide Pad (2)
44. Lockwasher (4)
45. Capscrew (4)
46. Bronze Wear Pad (4)
47. Lockwasher (8)
48. Capscrew (8)
49. Lower Slide Pad (2)
50. Lockwasher (4)
51. Capscrew (4)
52. Bushing (2)
54. Capscrew (4)
55. Lockwasher (4)
56. Castle Nut
57. Cotter Pin
58. Cotter Pin
59. Castle Nut
60. Washer
61. Cotter Pin (2)
62. Retract Chain Pin
63. Threaded Chain End
64. Jam Nut
65. Nut
CD3340B/YB4411
Item Description
66. Pivoting Boom Head
67. Shim
68. Shim
69. Nylatron Spacer (2)
70. Roller Bearing (2)
71. Retract Chain Roller
72. Set Screw (2)
73. Pin
74. Grease Fitting (2)
75. Roller Support Bracket
76. Bottom Wear Pad (2)
77. Lockwasher (4)
78. Capscrew (4)
79. Roller Assembly
80. Lock Wire

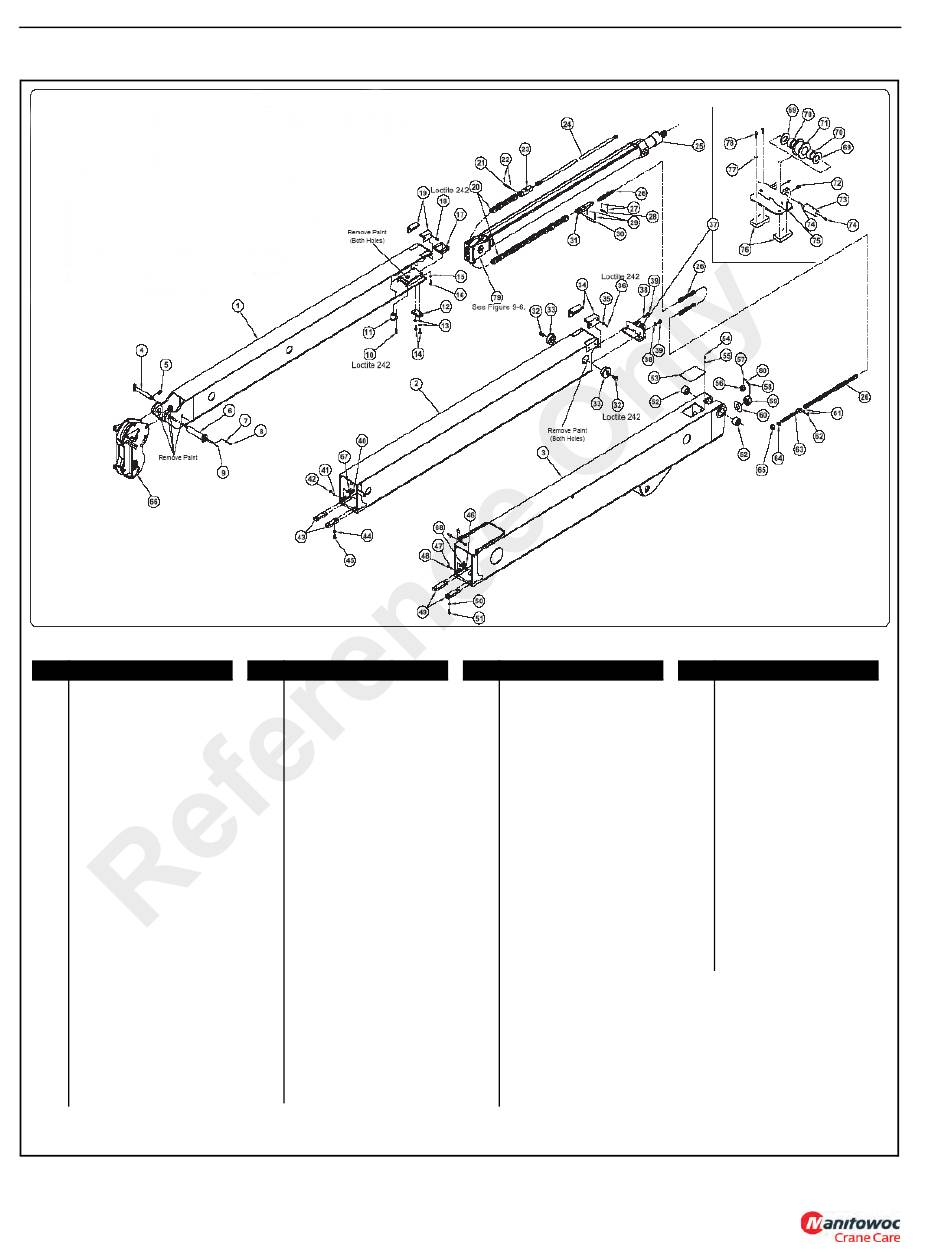

FIGURE 11-1
