HYDRAULIC SYSTEM
Tighten to a Torque of
1200 lb-ft (1632 Nm)
a0754
4-48
Published 04/07/2015 Control # 569-00
CD3340B/YB4411

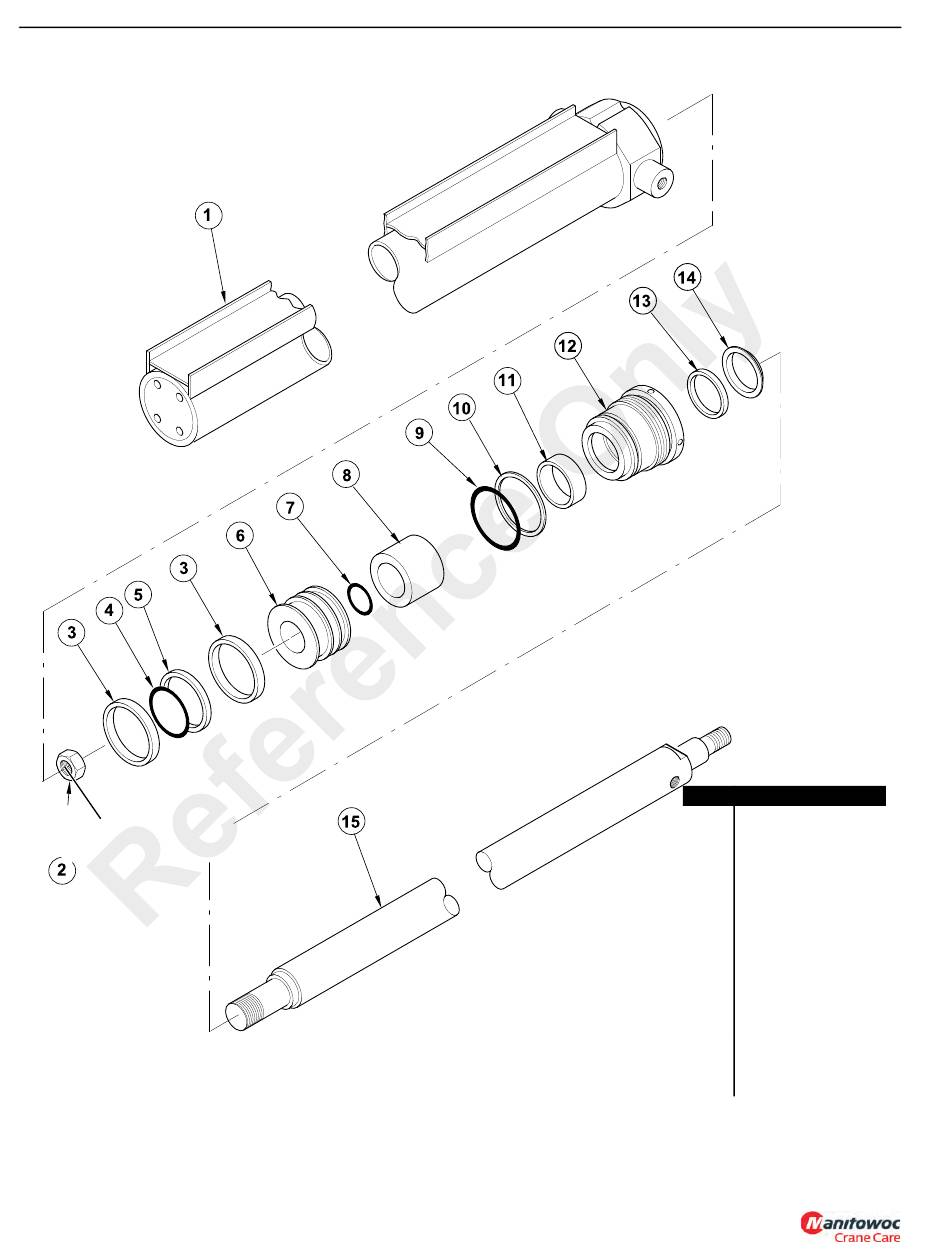

Item Description
1 Cylinder Tube
2 Piston Nut
3 Wear Ring (2)*
4 Seal*
5 Loader*
6 Piston
7 O-ring*
8 Spacer
9 O-ring*
10 Back-Up Ring*
11 Wear Ring*
12 Gland
13 Seal*
14 Wiper*
15 Cylinder Rod
* Include In Seal Kit
FIGURE 4-39
