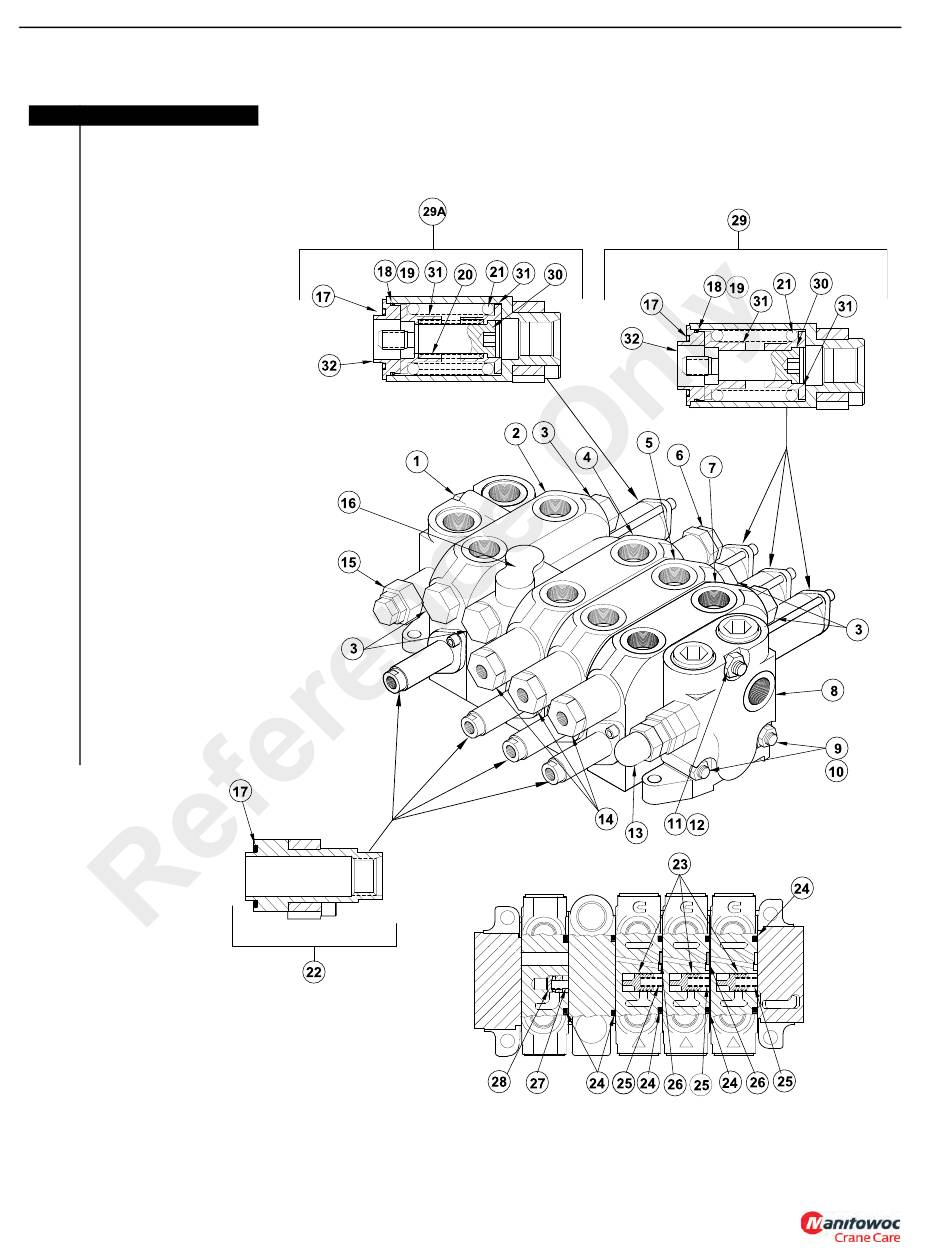

HYDRAULIC SYSTEM
Item Description
1 Inlet/Outlet Section
2 Working Section
3 Shut-off Plug (5)
4 Working Section
5 Working Section
6 Port Relief Valve
7 Working Section
8 Load Sense Section
9 Studs (2)
10 Nut (4)
11 Stud
12 Nut (2)
13 Load Sense Relief Valve
14 Anti-Void Valve
15 Relief Valve
16 Mid-Inlet Section
17 O-ring (8)
18 O-ring (4)
19 Backup Ring (4)
20 Spring
21 Spring (4)
22 Cap Assembly (4)
23 Load Check Poppet (3)
24 O-ring (6)
25 Load Check Spring (3)
26 Seal (2)
27 Load Check Spring
28 Load Check Poppet
29 End Cap Assembly (3)
29A End Cap Assembly
30 Spool end (4)
31 Spring end (4)
32 Retainer
