TRANSMISSION AND TORQUE CONVERTER
Converter In Pressure
See Figure 7-13.
1. Connect a 0-20 bar (0-300 psi) pressure gauge to test
point B.
2. Install a load valve P into the converter out line.
NOTE: Make sure the load valve is in the OPEN position
(the adjusting knob screwed fully out) before
starting the following pressure test. If the load valve
is not fully open, damage to the converter seals will
occur.
NOTE: DO NOT allow the pressure to exceed 110 bar (150
psi) or damage to the converter seals will occur.
3. Start the engine and run at 1000 rpm. With the
transmission in neutral, slowly screw down the load
valve P while observing the gauge reading which should
rise to the converter relief valve setting specified.
4. If the reading is higher than specified the converter relief
valve is faulty. A low reading indicates a leaking pump
seal or faulty converter relief valve.
5. Stop the engine and remove the test gauges and install
hoses to original position.
Lubricating Pressure
See Figure 7-13.
1. Stop the engine and connect a suitable pressure gauge
into the return line from the oil cooler to the transmission
as shown in J.
2. Start the engine and run at 1000 rpm. With the
transmission in neutral, the pressure gauge will indicate
the lubricating pressure. Compare the pressure reading
with the specifications on page 7-2.
3. Repeat step 2 and note the pressure with the engine
running at 2000 rpm.
4. Stop the engine and remove the pressure gauge.

Transmission Repair

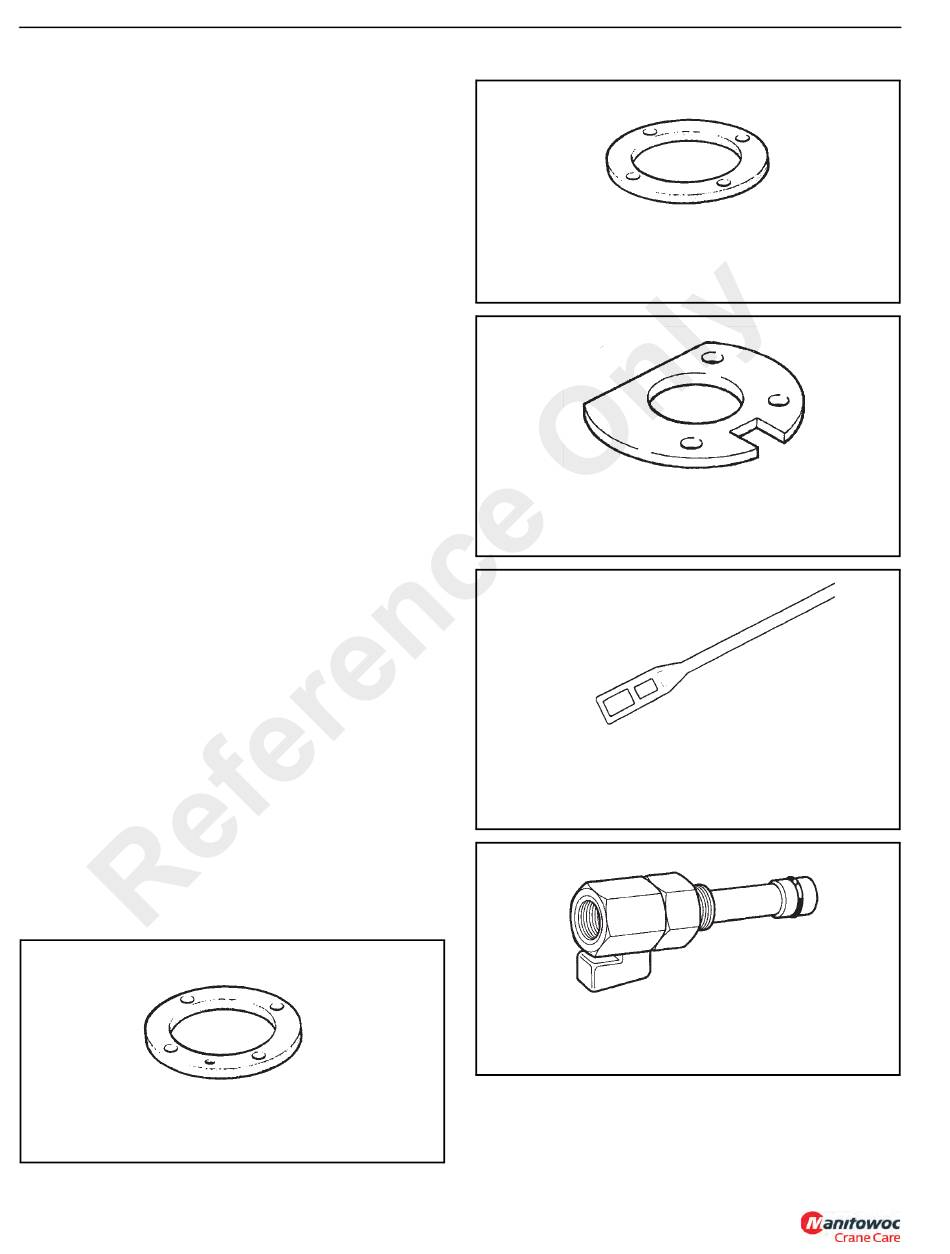

Special Service Tools
a0254
P/N 1900449
End Float Setting Tool
7-26
FIGURE 7-15
Published 04/07/2015 Control # 569-00
a0249
P/N 1001834
Reverse Clutch End Float
Setting Tool
a1397
P/N 1001833
End Float Setting Tool
a0180
P/N 1900365
Drive Coupling Spanner For
a1411
P/N 1903746
Mainshaft Air Line Adapter
CD3340B/YB4411
FIGURE 7-16
FIGURE 7-17
Yoke Couplings
FIGURE 7-18
FIGURE 7-19
