CD3340B/YB4411
a0755
GROVE
Use Loctite 243 and
Tighten to a Torque of
1200 lb-ft (1632 Nm)
Published 04/07/2015 Control # 569-00

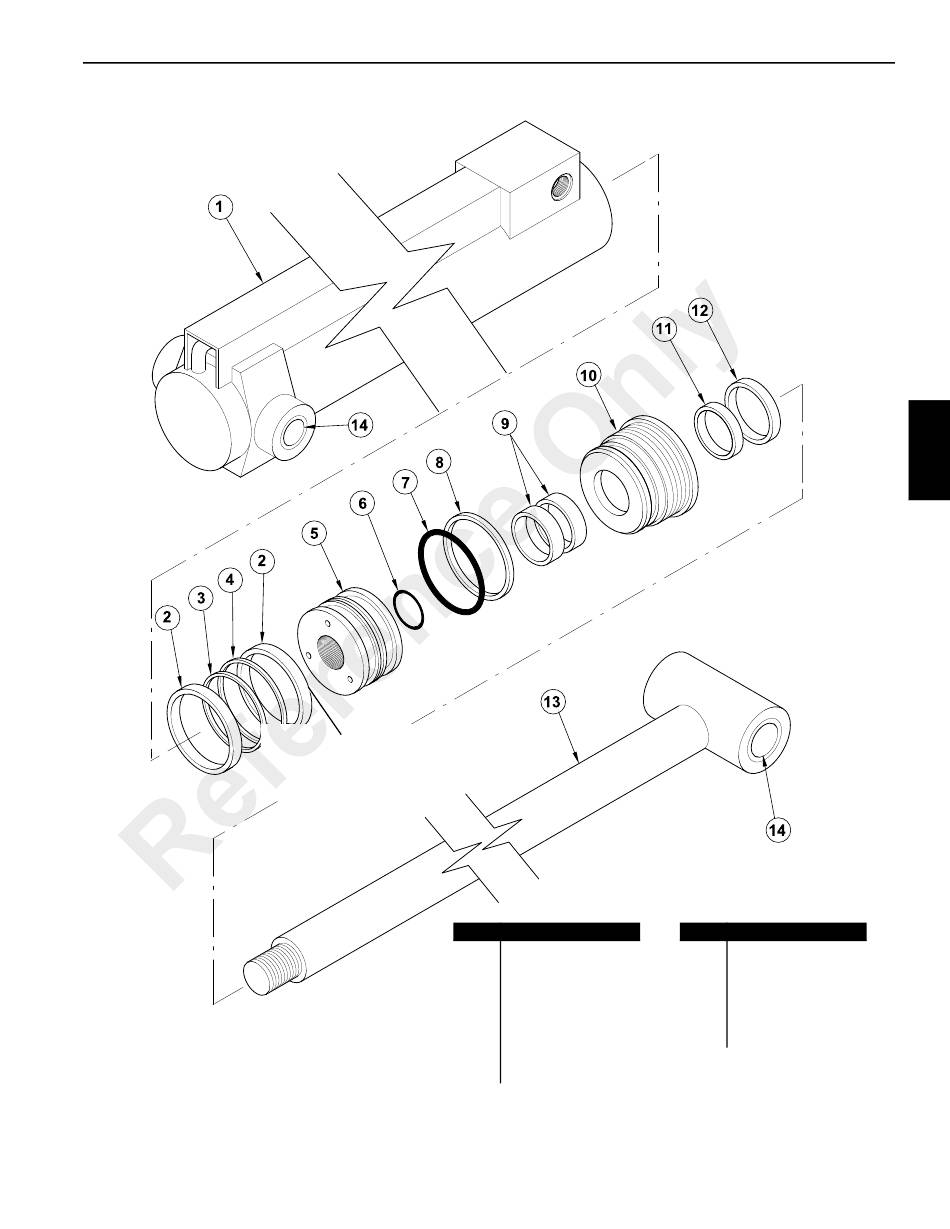

Item Description3
1 Cylinder Tube
2 Wear Ring (2)
3 Seal*
4 Loader*
5 Piston
6 O-ring*
7 O-ring*
8 Back-Up Ring*
HYDRAULIC SYSTEM
Item Description3
9 Wear Ring (2)*
10 Gland
11 Seal*
12 Wiper*
13 Cylinder Rod
14 Bushing (4)
* Include In Seal Kit
FIGURE 4-38
4
4-47
