Service Home Page

When the Common Service Desktop is started, the Service Home Page appears. The Home Page
contains the software revision along with the hardware inventory and the results of the latest System
Health Information. The navigation bar at the top of the screen allows the user to select from several
tools and applications.
NOTE: When using the Common Service Desktop do NOT iconify any of the Common Service Desktop
windows. If you iconify them they end up in the lower left-hand corner of the screen behind the Service
Desktop Manager window and cannot be restored. Resize the windows with the mouse and move them
as needed to make room for other windows.
For BT06 or lower
14
For BT07 or later

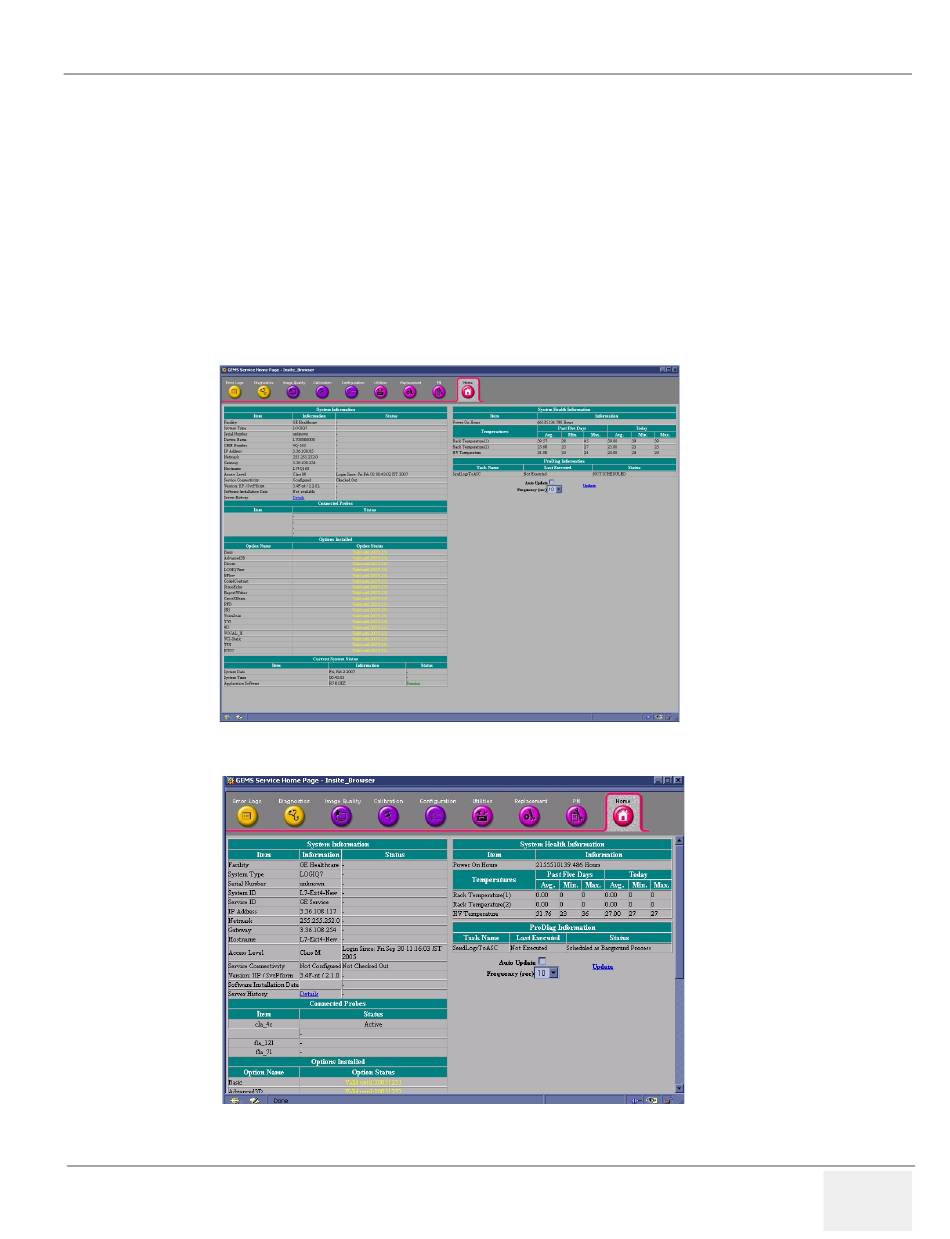

Figure 5-49 Service Home Page
