5-5-4

Error Logs Page

From the Error Logs page the Log Viewer displays five categories with pull-down sub-menus. The
Service Interface has a log viewing tool driven by the following high-level requirements.
• Simple filtering of the scanner log(s) with filtering capabilities being a function of login access
permissions.
• Logs are viewable by all service modes.
• Allow for multiple instances of the log viewer.
• Color-coded log entries for severity levels:
• Support the transfer of logs to local and/or remote destinations
5-30
14
* Severity 1 - Color coded Green
* Severity 2 - Color coded Yellow
* Severity 3 - Color coded Red

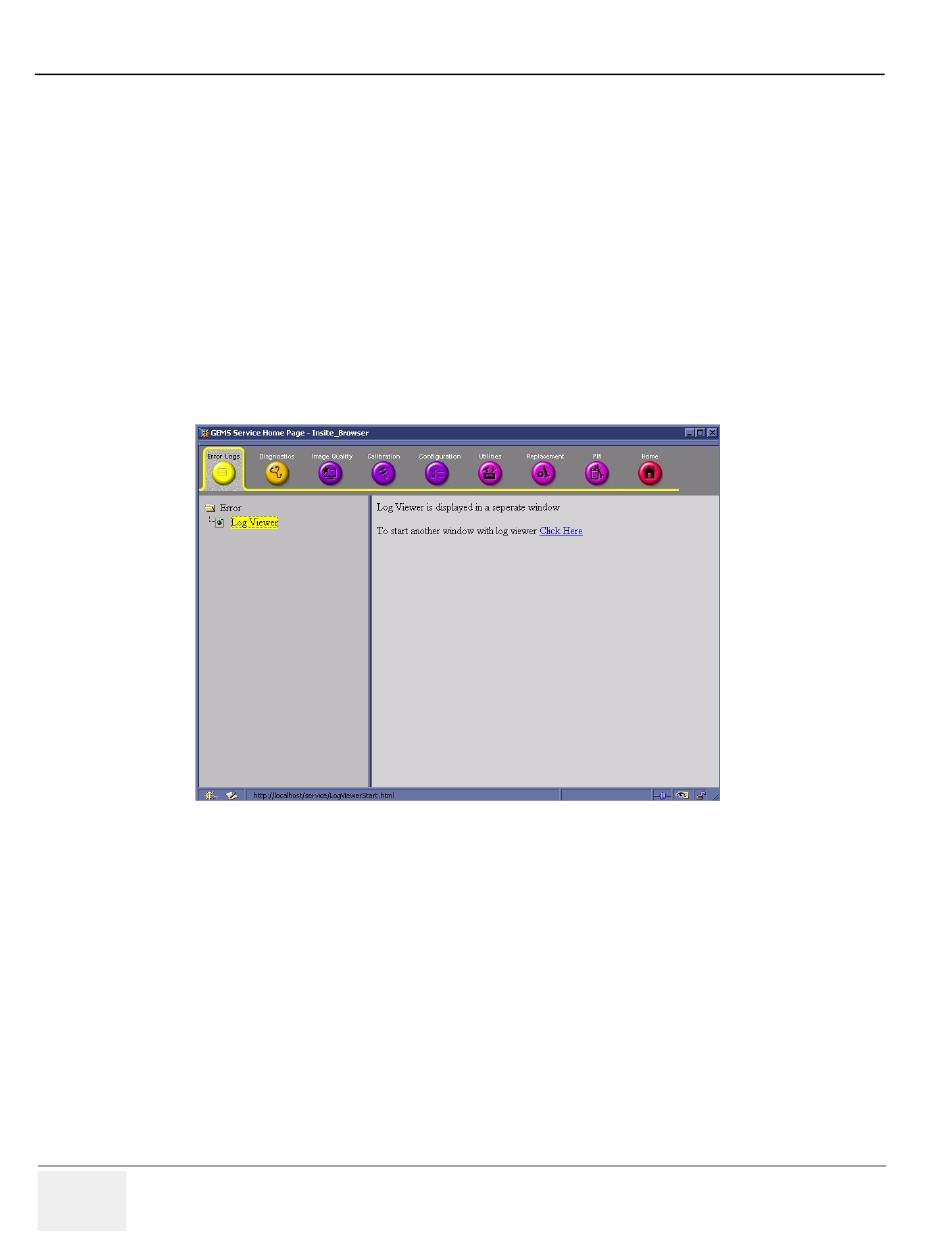

Figure 5-50 Log Page
