8-2-8-5 TCP/IP Filter Setup (cont'd)
7.) If your system has no TCP port numbers as follows, perform these procedure to add the TCP port
numbers. If the TCP port already have been set, skip these procedures. (This depends on the
network card installed in the PC box.)
The TCP port numbers, 21, 23, 80, 104, 512, 3003,
5800, 5801, 5900, and 5901, have been set.
UDP Ports and IP Protocols must be kept default settings.
NOTICE
Section 8-2 - Software Loading Procedures for BT09 (R8.x.x or later)
14

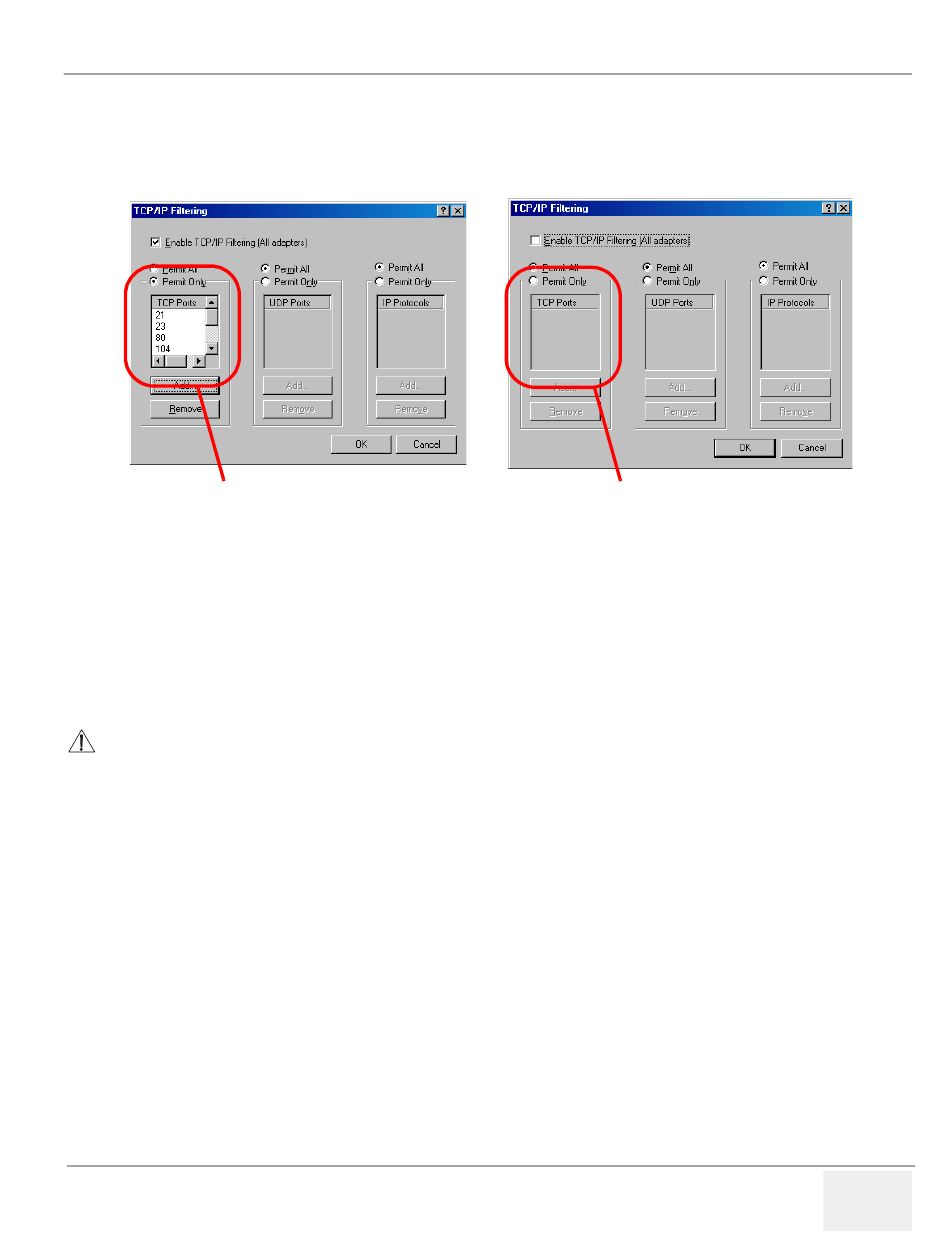

Figure 8-81 TCP port number
* At first check mark Enable TCP/IP Filtering (All adapters).
* Check mark Permit Only in TCP ports box
* Click Add... button.
* Enter 21 (port number) as the TCP Port ,then click OK button to apply it.
* Repeat these procedures to register 21, 23, 80, 104, 512, 3003, 5800, 5801, 5900, and
5901 for TCP ports.
LOGIQ™ 7 S
No TCP port number is set. They must
be set.
