6-3-1 Brake Function Adjustment
3.) After completion of adjustment, press on the brake and check its function and location of the boss,
connected to the caster lock arm.

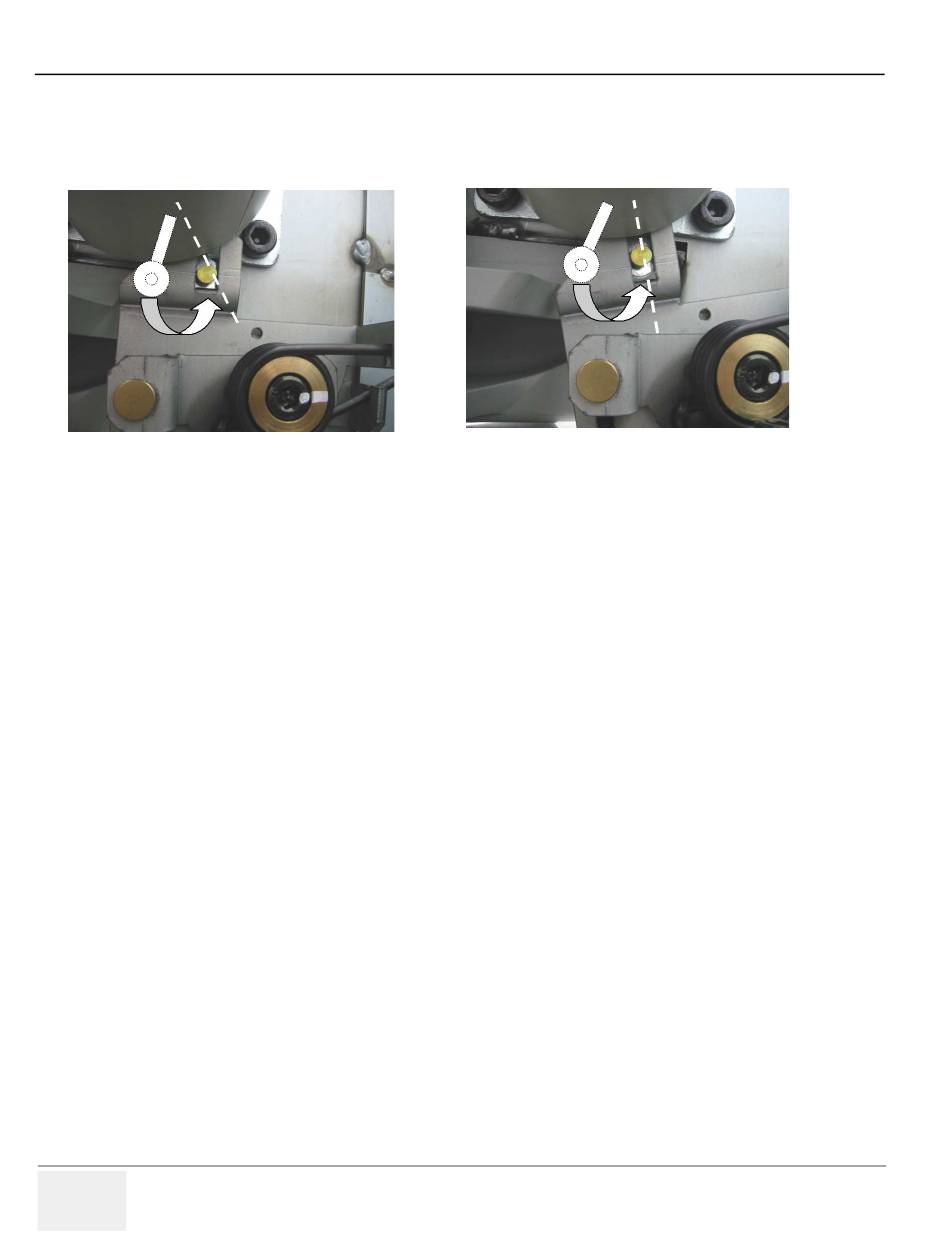

Example: GOOD
Boss of the front caster in place, and brake
properly adjusted.
6-6
14
(cont'd)
Figure 6-6 Brake Function Check
Section 6-3 - Caster Brake/Swivel Function Adjustments
LOGIQ™ 7 S
Example: NO GOOD
Boss of the front caster NOT in place, and brake
NOT properly adjusted.
