Archiving And Loading Presets For Bt06/V65X Or Lower; Formatting Cd-R/Mo/Dvd-R Disk - GE LOGIQ 7 Service Manual

GE H
EALTHCARE
D 2286865, R
IRECTION EVISION
4-2-7

Archiving and Loading Presets for BT06/V65x or lower

NOTE: Always save presets before any software reload. This ensures the presets loaded after the software
reload are as up–to–date as possible.
All user presets except changes to Summary, Anatomy, and Biometry pages, can be saved on an CD-
R/MO/DVD-R disk for reloading on the system.
Presets should NOT be saved on the same CD-R/MO/DVD-R disk as images. The Archive Menu
NOTICE
lists the images but does NOT list the presets stored on a CD-R/MO/DVD-R disk.
4-2-7-1

Formatting CD-R/MO/DVD-R Disk

1.) Insert an empty (blank) CD-R/MO/DVD-R disk into the CD-R/MO/DVD-R device.
2.) Access to the Utility Menu on the Touch Panel, and select Connectivity>Removable Media or
Tools.
4-16
14

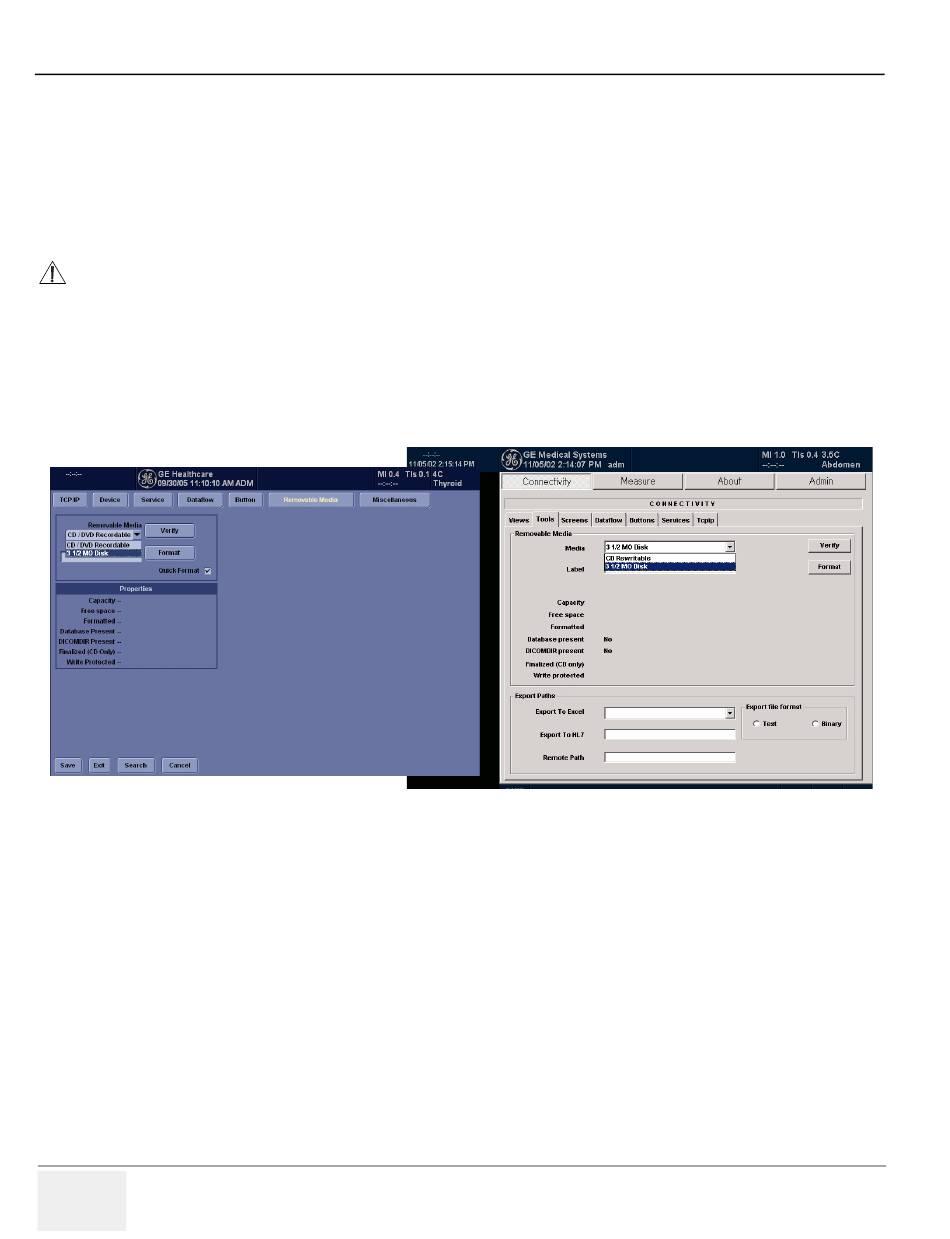

Figure 4-19 Formatting Removable Media1
Section 4-2 - General Procedure
LOGIQ™ 7 S M
ERVICE ANUAL
