Ts5/Ts7 Offset - btsr SMART MATRIX QUILT Operating Manual

TS5/TS7 Offset

This function allows you to read the value of tension detected by the loading cell of each sensor (without
yarn) and to carry out the calibration (offset) of all sensors or of a selectable sensor range.
Prior to start the calibration procedure, remove the yarn from the loading cell of the involved sensors.

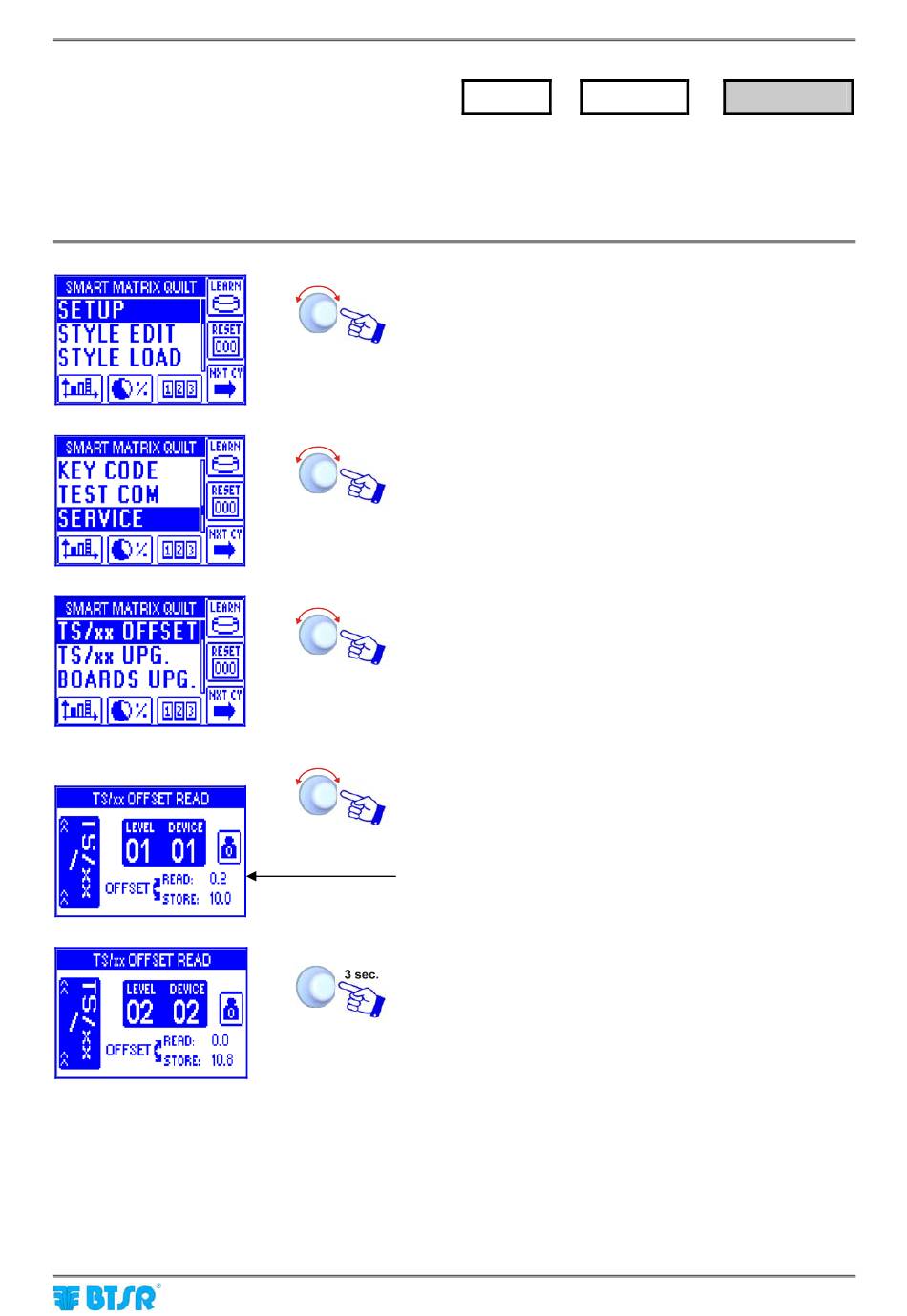

Current offset reading
SETUP
Enter the SETUP menu.
Select SERVICE.
Select TS/xx OFFSET.
Select the sensor on which you want to read the current
offset (LEVEL NN, DEVICE NN).
Current value detected on sensor located at
DEVICE 01 position (0.2 g)
To move to the sensor calibration function.
SMART MATRIX QUILT
TS5/TS7 Offset
→ SERVICE → TS/xx OFFSET
LEVEL 01,
