SM-DIN ↔ Machine Interface

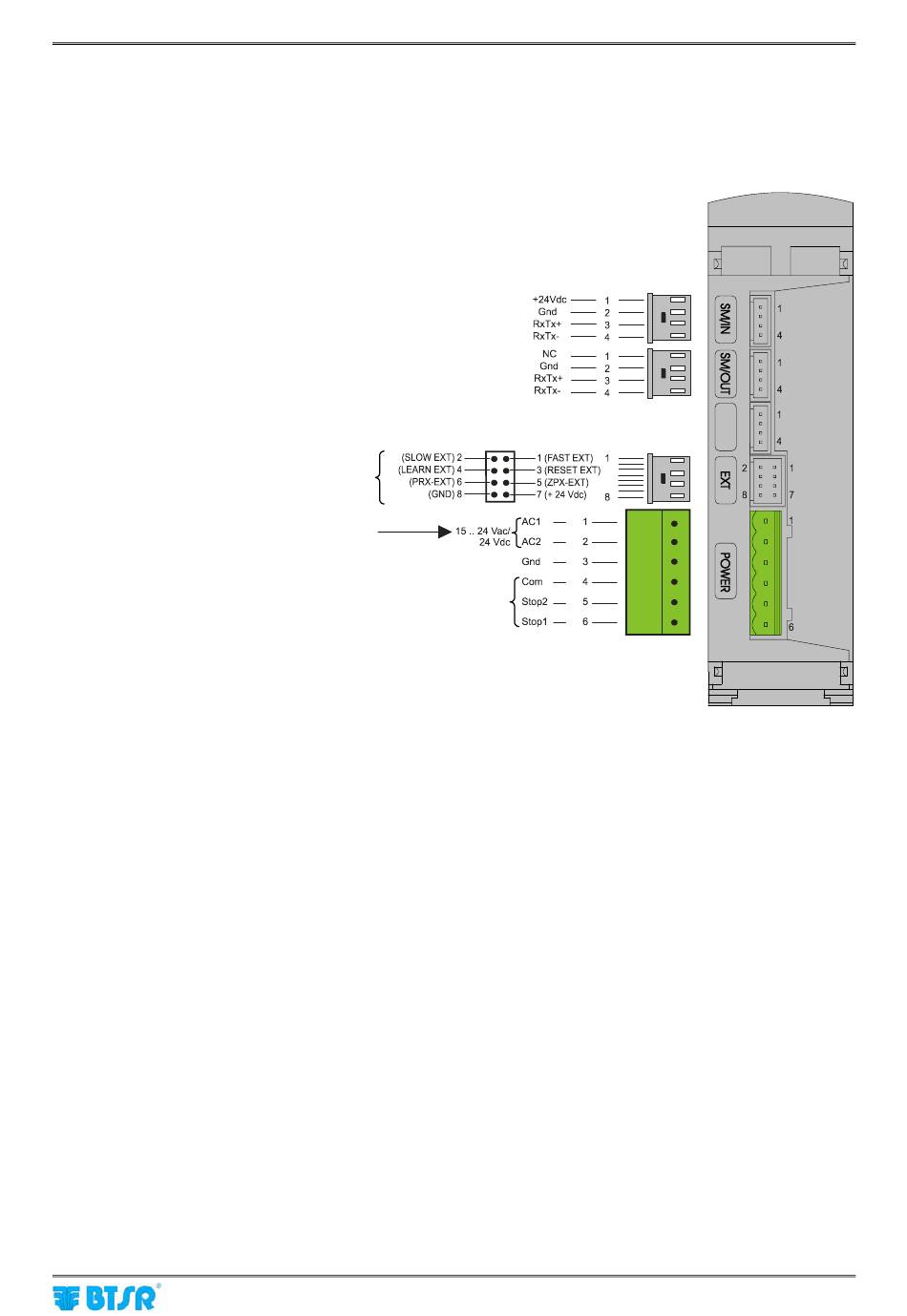

The following diagram shows the electrical interface (pin assignment) of SM-DIN Warp Board.
The sensor interface is shown on the following page.
Machine Interface
Power Supply (*)
Machine Interface
(OUTPUT)
(*)
Recommended power supply: 24 Vdc.
(INPUT)
SMART MATRIX QUILT
↔
SM-DIN
Machine Interface
1 - 4
