Video Blocked - Kedacom IPC4X2 Series User Manual

HD Mini Dome Camera
9)
6.1.2

Video Blocked

When the preset area is blocked intentionally and affects normal surveillance of this area,
an alarm will be triggered. After receiving the alarm, user can find the cause of video
blocked quickly and recover the surveillance scene. Configuration steps are as follows:
1)

Delete duration: click "Delete All" above the timeline to delete all the durations.
Select any duration and click "Delete" on the popup window or above the
timeline to delete the duration.
Note: Select any duration with a mouse, and drag the blue bar on the timeline as a
whole without changing the length of recording duration.
Click "Save" to validate settings.
Go to Settings > Event > Intelligent Function > Video Blocked;

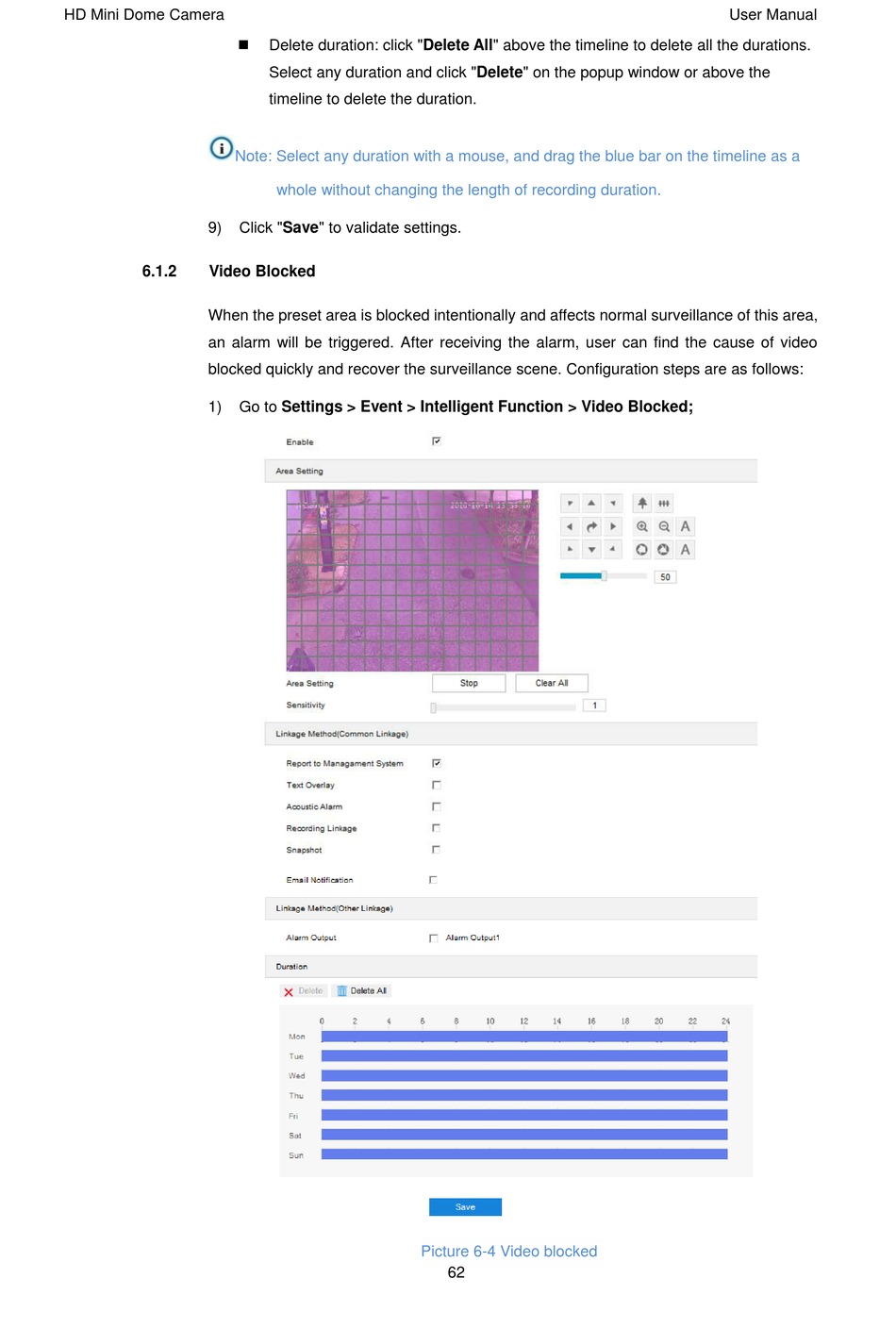

Picture 6-4 Video blocked
62
User Manual
