Preset Position - Kedacom IPC4X2 Series User Manual

HD Mini Dome Camera
2)
3)
4)
5)
5.5.3

Preset Position

Preset position includes information of PT position and lens focal length. It is set by user
and can be loaded, edited or deleted anytime. The maximum number of presets allowed
to be set is 512. Configuration steps are as follows:
1)
Select "Enable";
Select a mode from the dropdown list of "Guard Tour";

Pan Mode: Camera rotates in pan direction from 0° to 360° automatically. The
Waiting Time is configurable.

Tilt Mode: Camera rotates in tilt direction from 0° to 90° automatically. The
Waiting Time is configurable.

Load Preset: After user stops operating on the camera for a certain period of
time, the camera will return to a preset position automatically. The Waiting Time
and Preset No. are configurable. Please refer to the chapter of preset.

Path Mode: After user stops operating on the camera for a certain period of time,
camera will enable Path Mode automatically. The Waiting Time is configurable.
Please refer to the chapter of patrol.

Frame Mode: In every key frame interval, camera rotates automatically in pan
direction by 90° . The Waiting Time is configurable.

Random Mode: Camera patrols automatically and randomly in pan direction.
The Waiting Time is configurable.

Panoramic Mode: Camera patrols panoramically from 0° to 90° in tilt direction
and from 0° to 360° in pan direction. The Waiting Time is configurable.

Mixed Mode: Camera patrols automatically by the recorded patrol paths in a
certain period of time. The waiting time is configurable and the patrol path is
selectable. Please refer to the part of mixed mode for setting steps.
Set "Waiting Time" according to the mode.
Click "Save" to validate setting.
Go to Settings > Camera > PTZ > Preset;

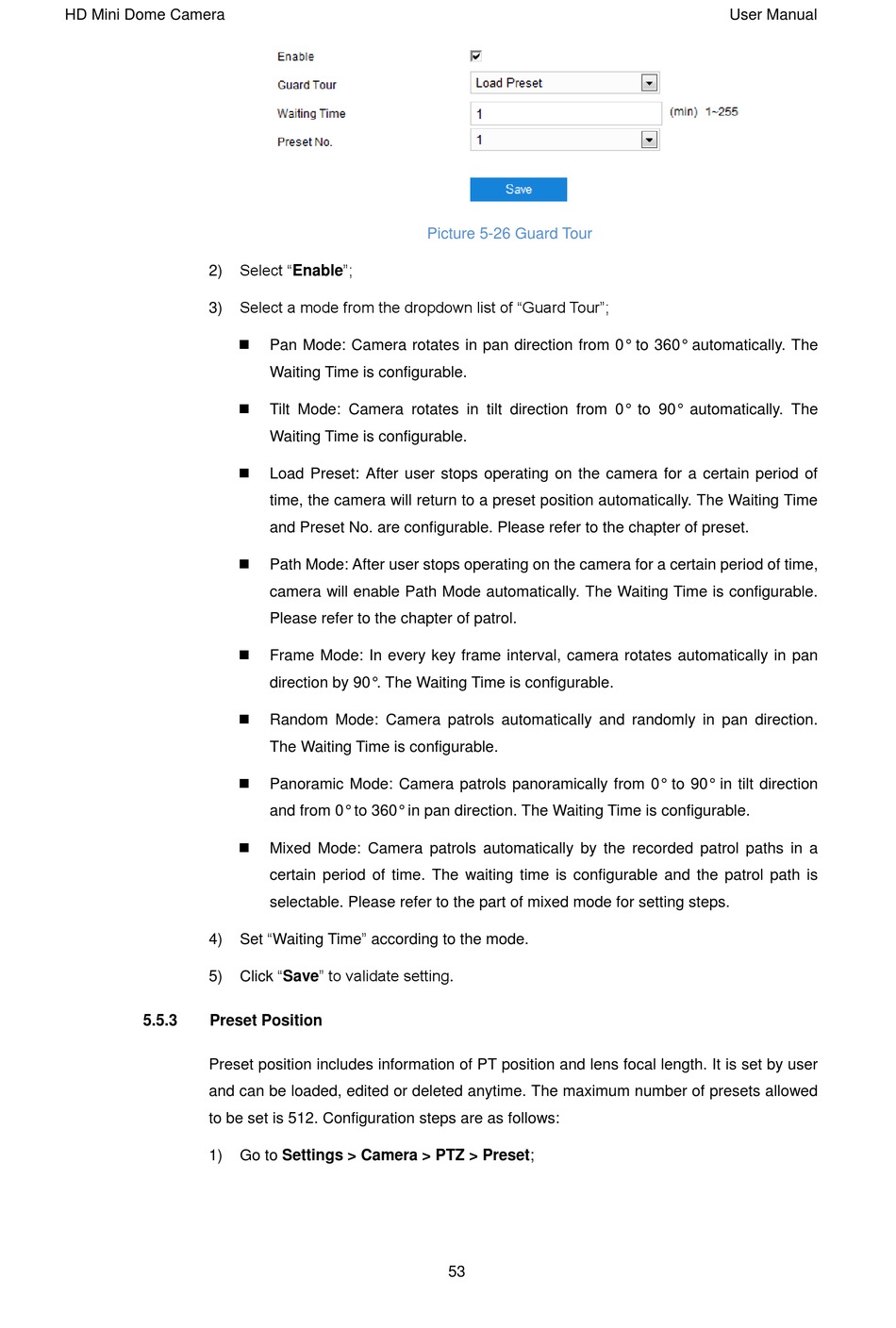

Picture 5-26 Guard Tour
53
User Manual
