15) Click "Save" to validate settings.

6.2 *Alarm Input

Before starting configuration, make sure that the camera has connected to alarm input devices
such as smoke-detector, alarm bell or sprayer through the parallel port. Configure parameters for
each alarm input devices and the camera will judge by the received alarm signal if it is necessary to
trigger an alarm. Configuration steps are as follows:
1) Go to Settings > Event > Alarm Input;
Select "Enable";
2)

Delete duration: click "Delete All" above the timeline to delete all the durations.
Select any duration and click "Delete" on the popup window or above the
timeline to delete the duration.
Note: Select any duration with a mouse, and drag the blue bar on the timeline as a
whole without changing the length of recording duration.

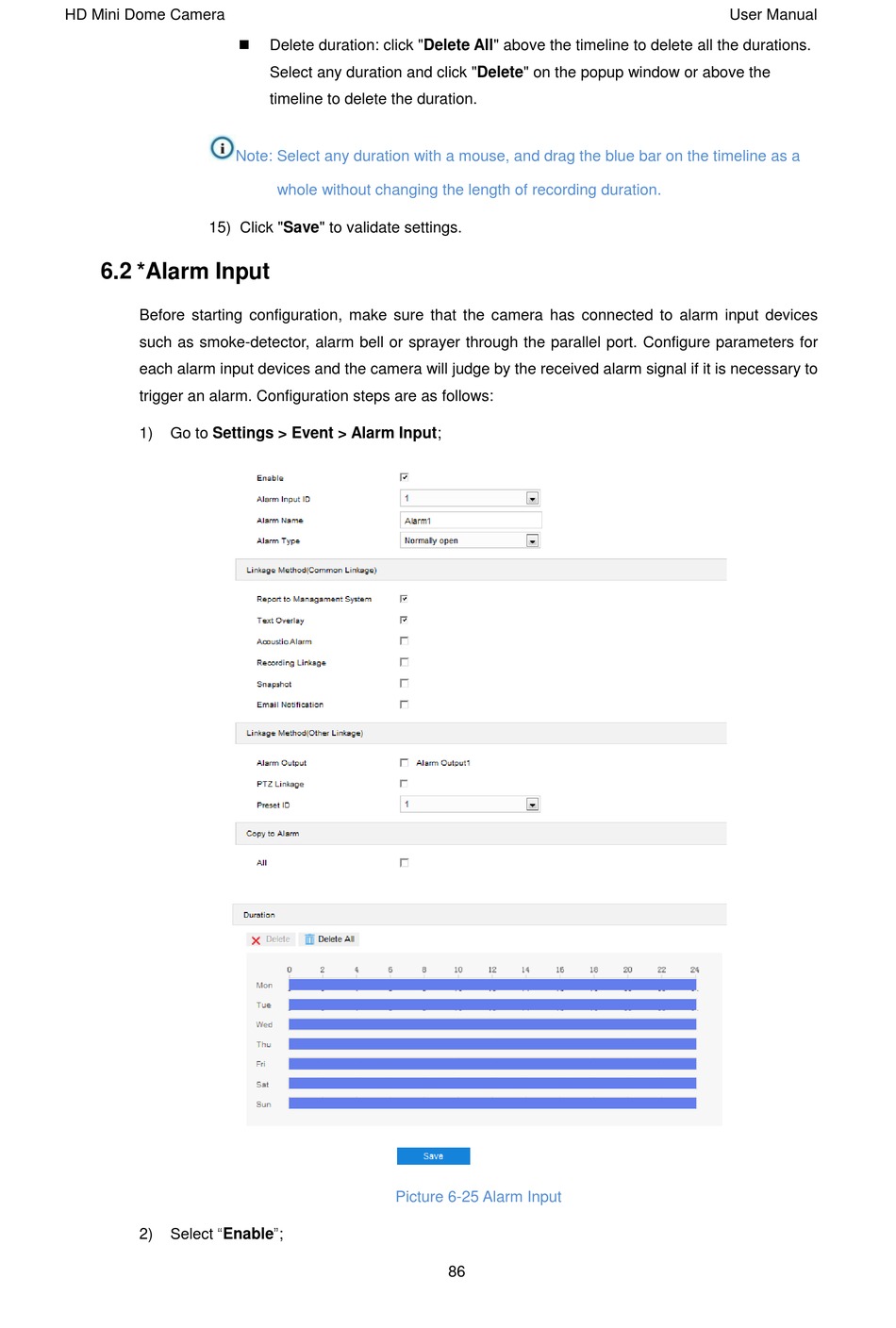

Picture 6-25 Alarm Input
