HD Mini Dome Camera
2)
3)
4)
5)
6)
7)
Select "Enable";
Adjust the surveillance scene through the PTZ;
Select a number from the dropdown list of Guard Area and user can set only one
area at one time. After saving it, user can set another and max 4 areas can be set;
Drag the slide bar of "Ratio" to set the coverage of people in the set area;
Area Setting: to set area. Click "Edit" and click mouse to draw a closed area made
up of 3 to 6 points in the scene. Right click or click the starting or end point to close
the area, and click "Stop" to finish;
Select linkage type(s), which is/are the alarm output method(s) when an event
triggers an alarm;

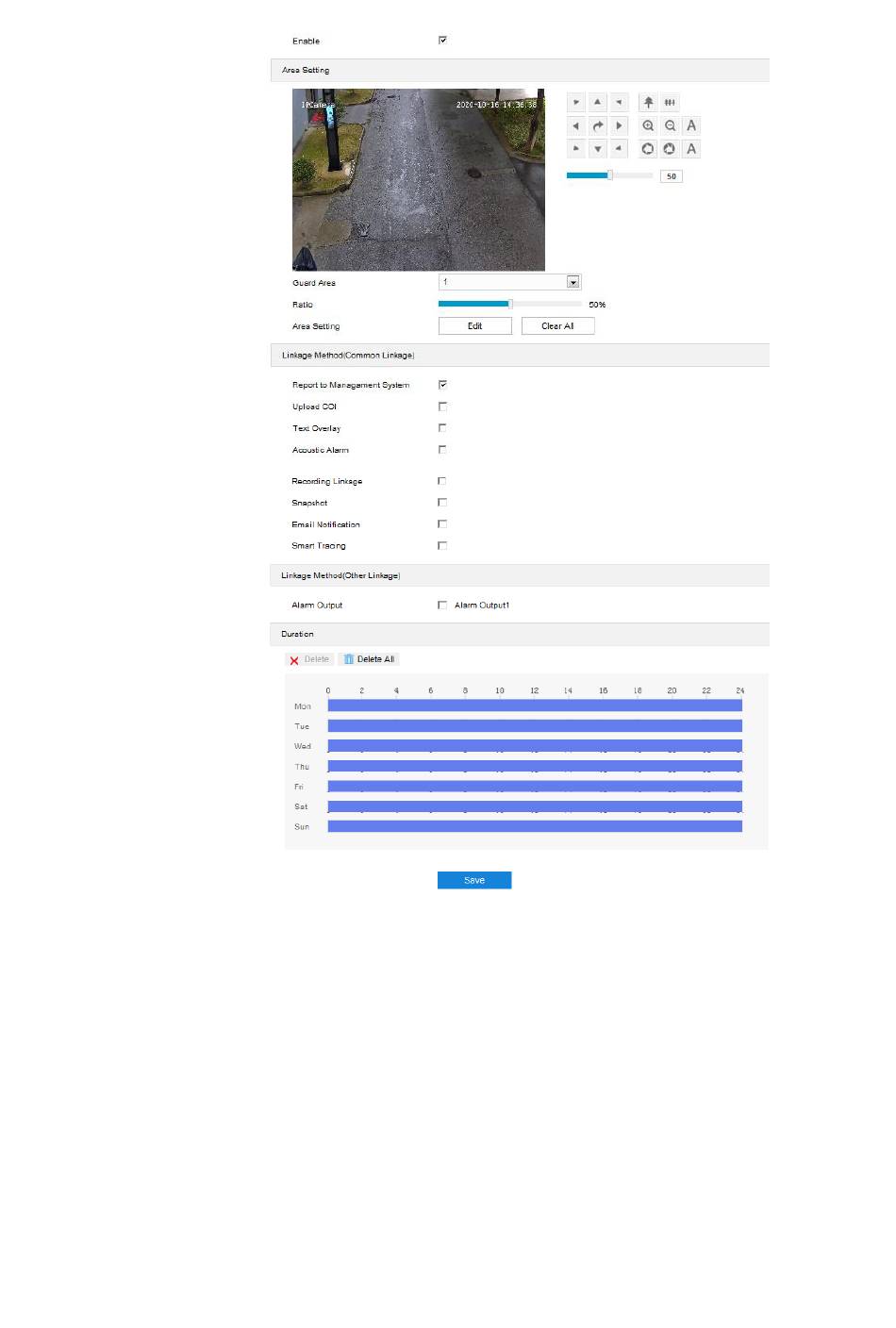

Picture 6-18 Gathering
