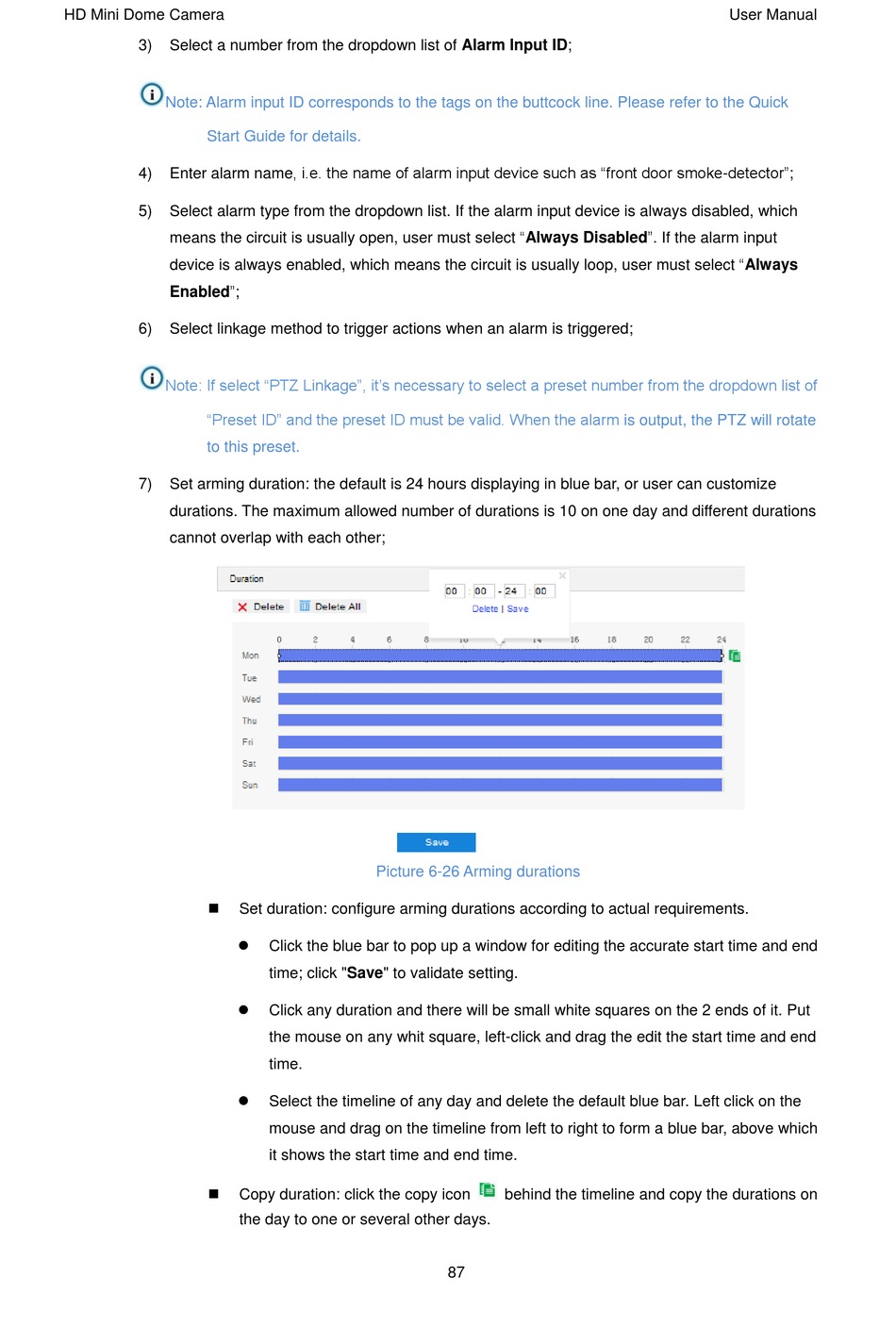

HD Mini Dome Camera
3) Select a number from the dropdown list of Alarm Input ID;
Note: Alarm input ID corresponds to the tags on the buttcock line. Please refer to the Quick
Start Guide for details.
Enter alarm name, i.e. the name of alarm input device such as "front door smoke-detector";
4)
5) Select alarm type from the dropdown list. If the alarm input device is always disabled, which
means the circuit is usually open, user must select "Always Disabled". If the alarm input
device is always enabled, which means the circuit is usually loop, user must select "Always
Enabled";
6) Select linkage method to trigger actions when an alarm is triggered;
Note: If select "PTZ Linkage", it's necessary to select a preset number from the dropdown list of
"Preset ID" and the preset ID must be valid. When the alarm is output, the PTZ will rotate
to this preset.
7) Set arming duration: the default is 24 hours displaying in blue bar, or user can customize
durations. The maximum allowed number of durations is 10 on one day and different durations
cannot overlap with each other;


Picture 6-26 Arming durations
Set duration: configure arming durations according to actual requirements.

Click the blue bar to pop up a window for editing the accurate start time and end
time; click "Save" to validate setting.

Click any duration and there will be small white squares on the 2 ends of it. Put
the mouse on any whit square, left-click and drag the edit the start time and end
time.

Select the timeline of any day and delete the default blue bar. Left click on the
mouse and drag on the timeline from left to right to form a blue bar, above which
it shows the start time and end time.
Copy duration: click the copy icon
the day to one or several other days.
behind the timeline and copy the durations on
87
